HDMI Tx [U9101] is faulty.
Replace with a new device.
Recheck from check item (3.4.).
If it does not work, replace the PCB.
Check for a short circuit in the HPD line.
If there is no problem, the HDMI Tx [U9101] is faulty.
Replace with a new device.

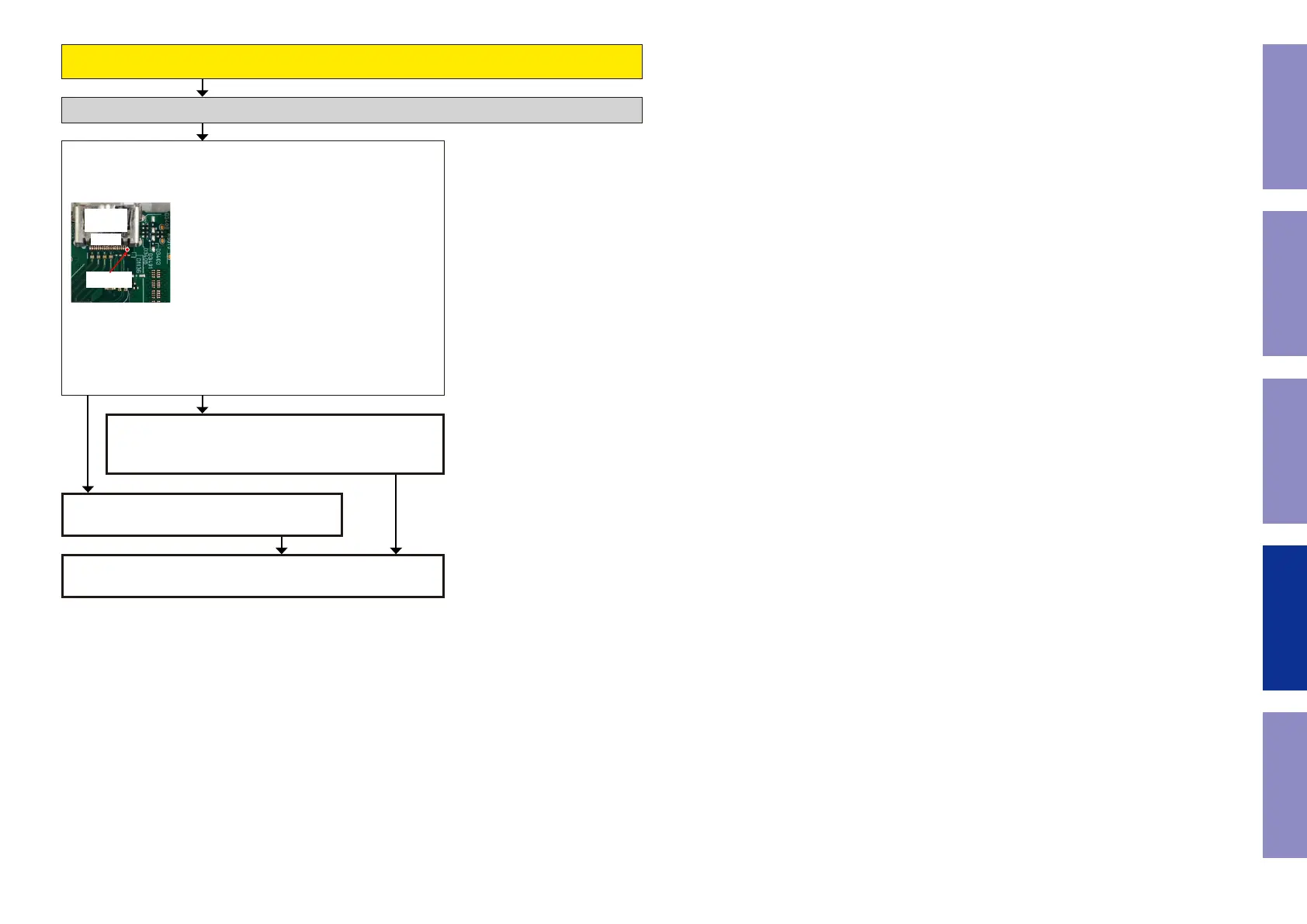

When the results of check item (3-13.4.) are "60"
(Detection of HPD is not OK.)
Check item(3-13.8.). Checking the HPD :
Is "Hi(3-5V)" indicated for "19pin"(HPD) in the HDMI output terminal
[N9013]?
N9103
HDMI OUT
[MONITOR1]
HPD
19pin
Check the HPD. (HDMI OUT1)
NOYES
137
