Explanatory Photos for DISASSEMBLY
• The angles from which the photos are taken are shown by "
Photo angle: A, B, C, D
".
• See the diagram below about the shooting direction of each photograph.
• Photographs with no shooting direction indicated were taken from the top of the unit.
• The photograph is SR5009K model.

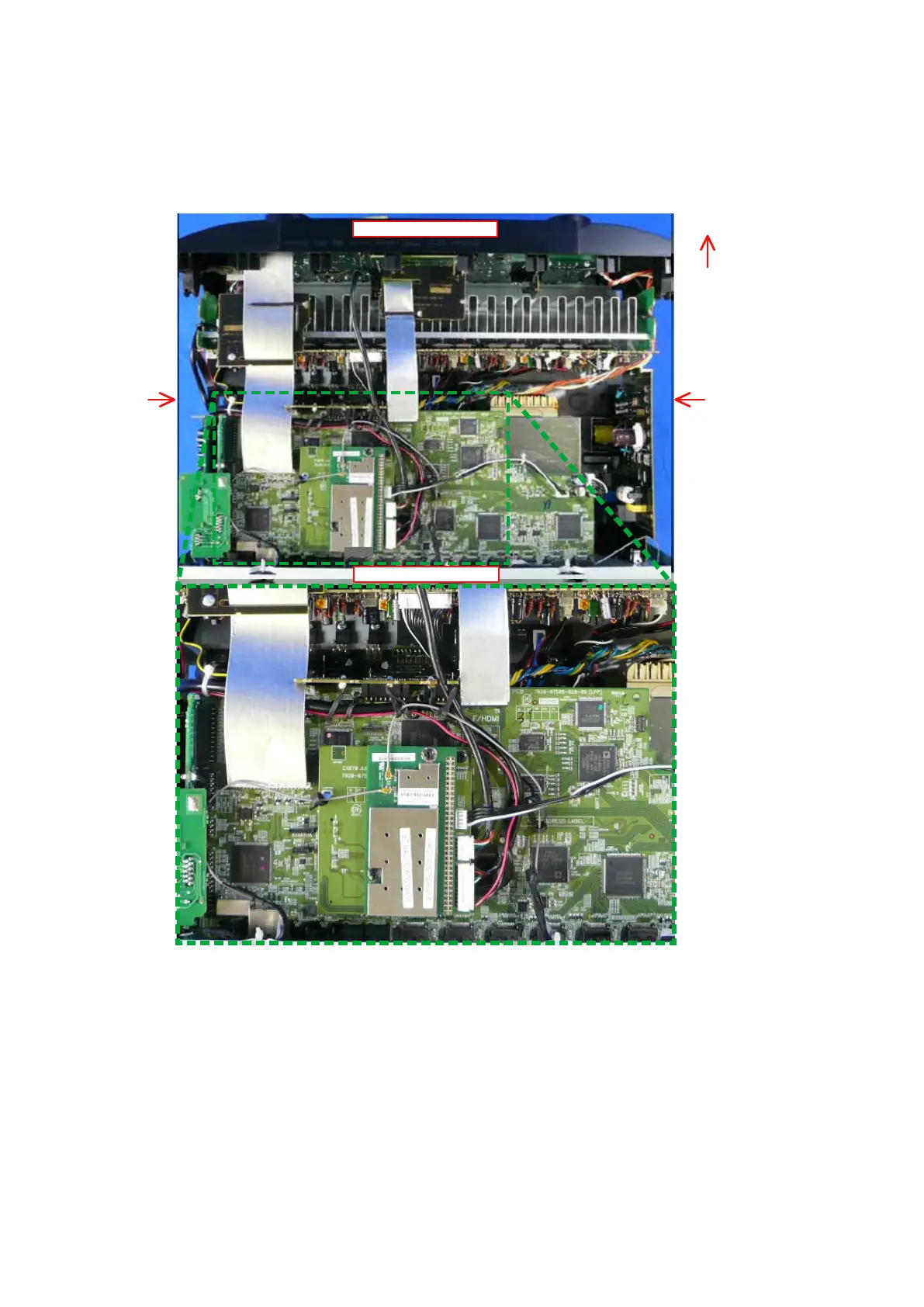

The viewpoint of each photograph
(Shooting direction:X)[View from the top]
Front side
Shooting
direction: D
Shooting
direction: C
↑Shooting direction: A↑
↓Shooting direction: B↓
d
d
12
