Marantz SR5009/U1B - Radiator Assy

2. RADIATOR ASSY
Proceeding : TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY

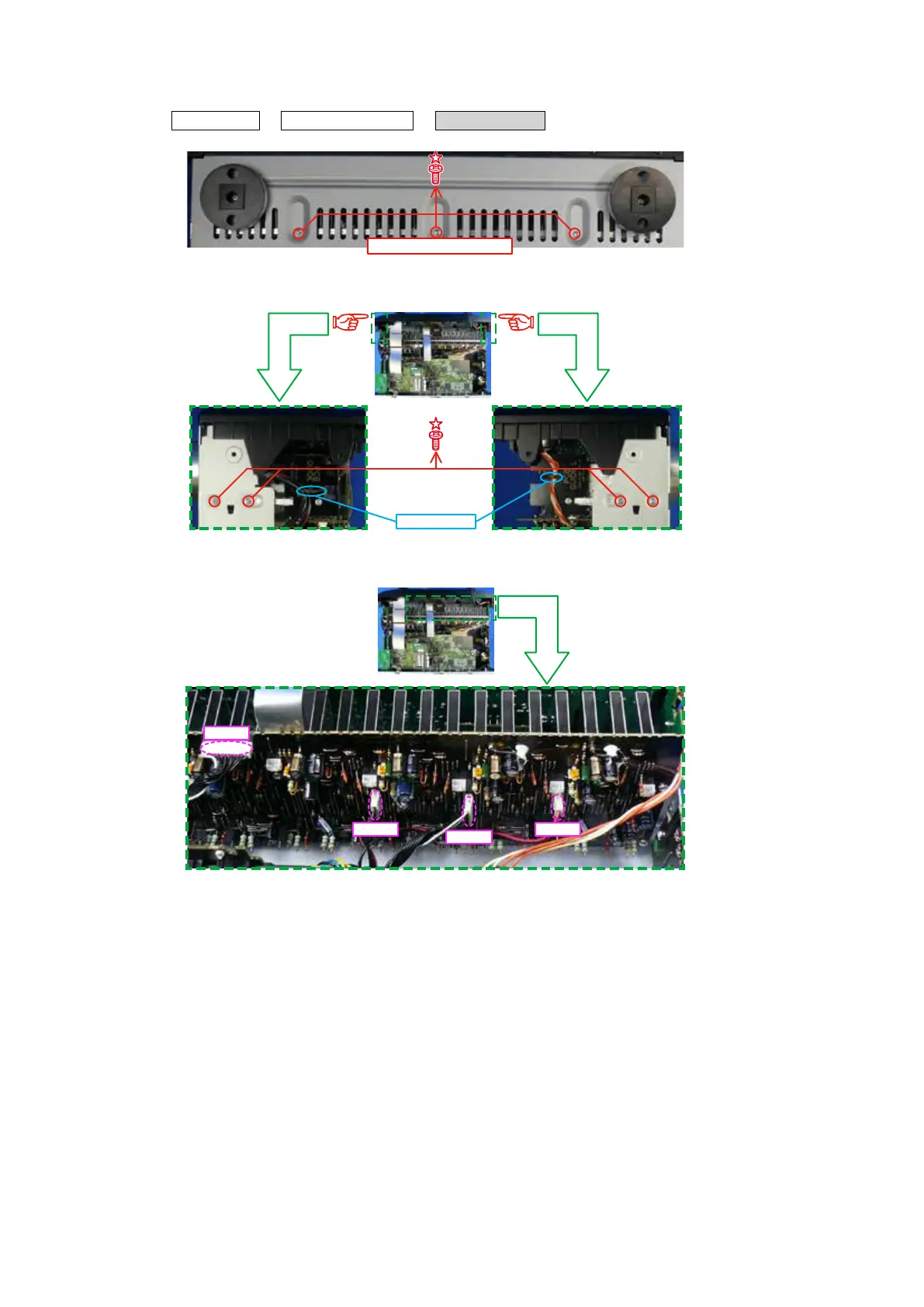

(1) Remove the screws.
(2) Remove the STYLE PIN. Remove the screws.
(3) Remove the connector wire.
View from the bottom
STYLE PIN
CP402
CP401
CP405
CP403
