Marantz SR5009/U1B - Hdmi Pcb

3. HDMI PCB
Proceeding : TOP COVER → BACK CHASSIS → HDMI PCB

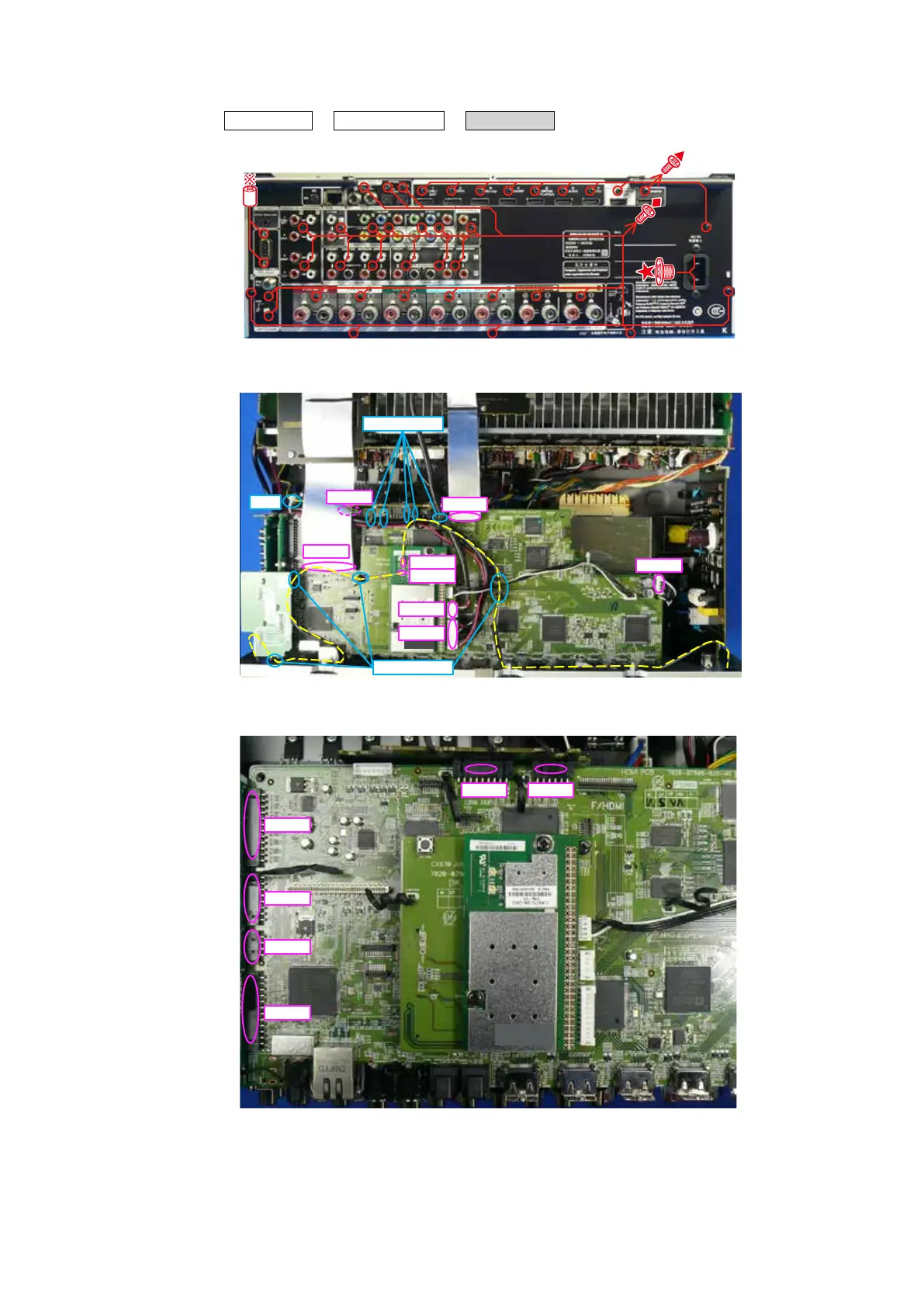

(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wires and FFC.
(3) Remove the connector wire.
Front side
FFC
FFC
N7005
N7002
CON1
CON2
N1029
CUT
STYLE PIN
STYLE
PIN
N1019
Front side
N1033N1018
N1014
N1015
N1013
N1016
