Marantz SR5009/U1B - Front Panel Assy

1. FRONT PANEL ASSY
Proceeding : TOP COVER → FRONT PANEL ASSY

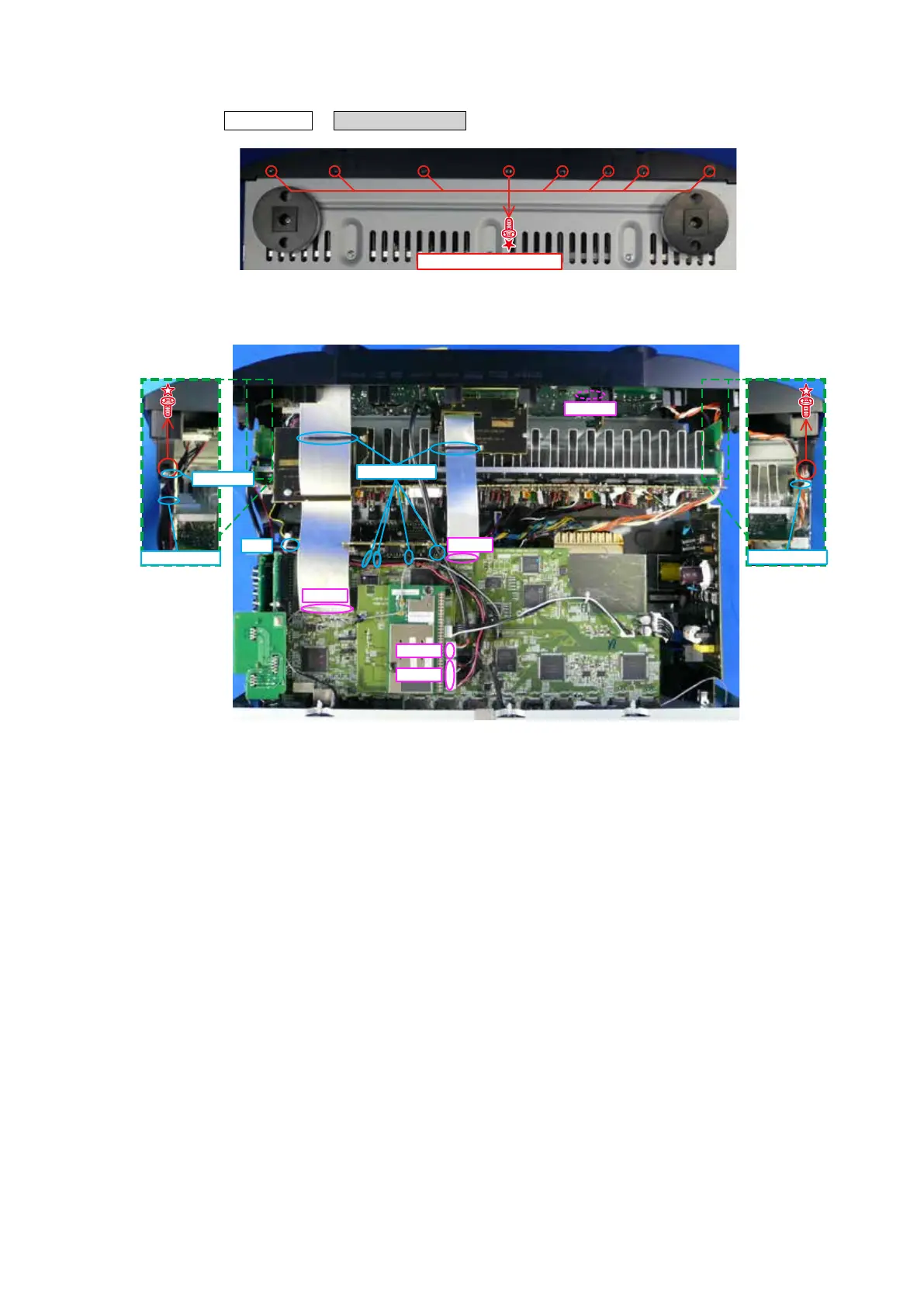

(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wires and FFC. Remove the STYLE PIN.
Remove the HOLDER and screws.
View from the bottom
Front side
FFC
FFC
N7005
N7002
CP4400
CUT
STYLE PIN
HOLDER
STYLE PIN
STYLE PIN
