TECHNICAL SPECIFICATIONS
n
Audio section
• Power amplifier
Rated output
:
Front :
100W+100W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
140W+140W(6Ω, 1kHz with 0.7% T.H.D)
Center :
100W(8Ω, 20Hz - 20kHz with 0.08% T.H.D.)
140W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
100W+100W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
140W+140W(6Ω, 1 kHz with 0.7 % T.H.D.)
Surround back:
100W+100W(8Ω, 20 Hz - 20 kHz with 0.08% T.H.D.)
140W+140W(6Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 4 - 16Ω
n
Analog section
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz - 100 kHz — +1, -3 dB(Direct mode)
S/N : 100 dB(IHF-A weighted, Direct mode)
n
Video section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input sensitivity/Input impedance : Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz - 60 MHz — 0, -3 dB
n
Tuner section
FM
Reception frequency range : FM 87.5 MHz - 107.9 MHz(for U)
FM 87.5 MHz - 108.0 MHz(for N, K)
AM 520 kHz - 1710 kHz(for U)
AM 522 kHz - 1611 kHz(for N, K)
Effective sensitivity : FM 1.2μV(12.8dBf)
AM 18 μV
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N: MONO ― 70 dB (IHF-A weighted, Direct mode)
STEREO ― 67 dB (IHF-A weighted, Direct mode)
Distortion : MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
n
Wireless LAN section
Network type
(wireless LAN standard): Conforming to Wi-Fi®z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 - 11 ch (for U)
1 - 13 ch (for N, K)
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10 m 2 in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported proles : A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
n
General
Power supply : (for U) : AC 120 V, 60 Hz
(for N) : AC 230 V, 50 Hz / 60Hz
(for K) : AC 220 V, 50 Hz
Power consumption : 650W
Power consumption in standby mode : 0.2W
Power consumption in CEC standby mode : 0.5W
Power consumption in network standby mode : 2.7W
For purposes of improvement, specications and design are subject to
change without notice.

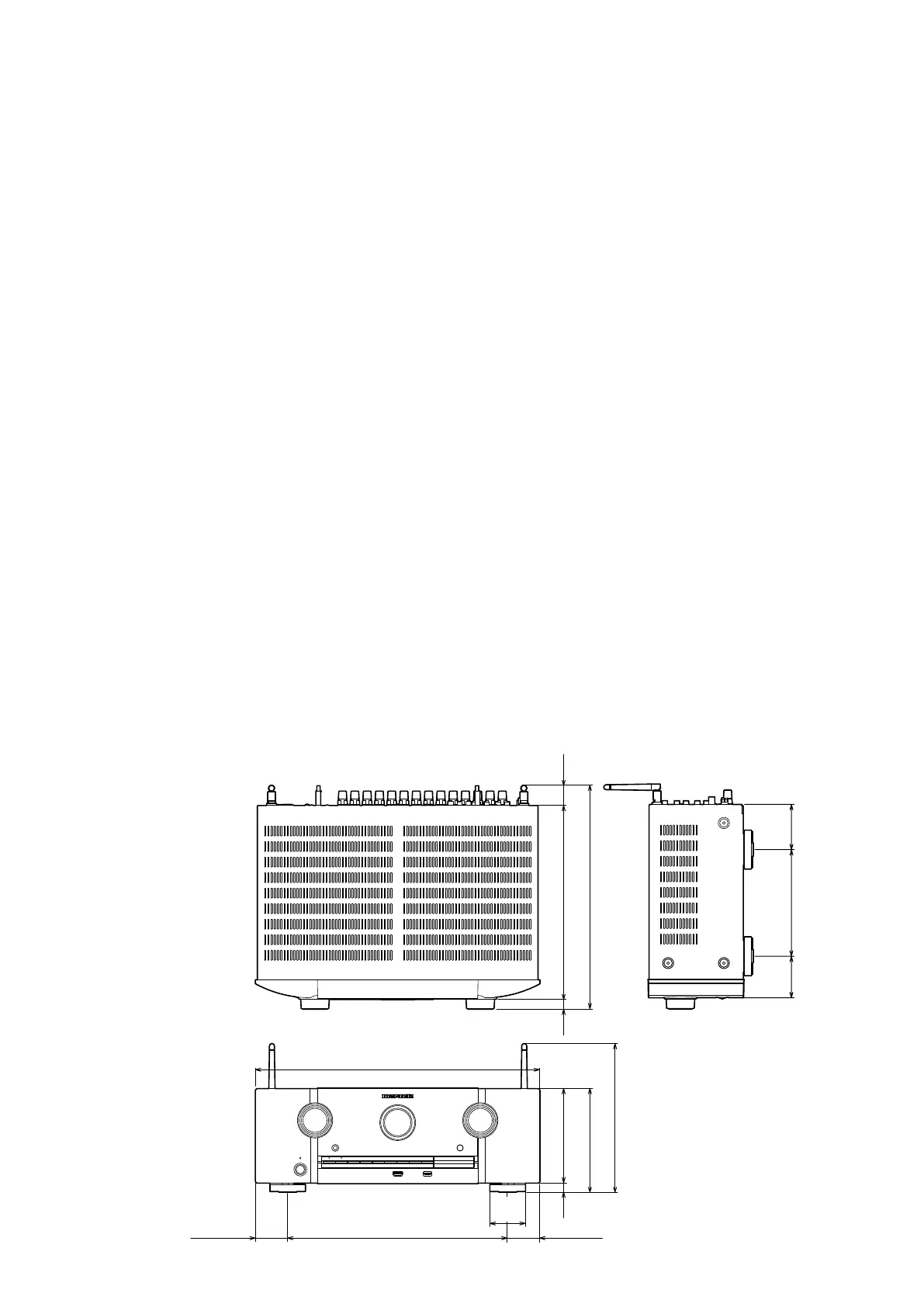

DIMENSION
Unit： Unit : in. (mm) Weight： 22 lb 11 oz (10.3 kg)
6 1/2 (165)
2 33/64
(64)
2 23/32
(69)
17 21/64 (440)
33/64
(13)
5 53/64 (148) 6 11/32 (161)
9 1/16 (230)
11 47/64 (298)
13 5/8 (346)
5/8
(16)
1 17/64
(32)
13 25/64 (340)1 31/32 (50) 1 31/32(50)
2 11/64
(55)
9
