Marantz SR6006/U1B - Page 63

63

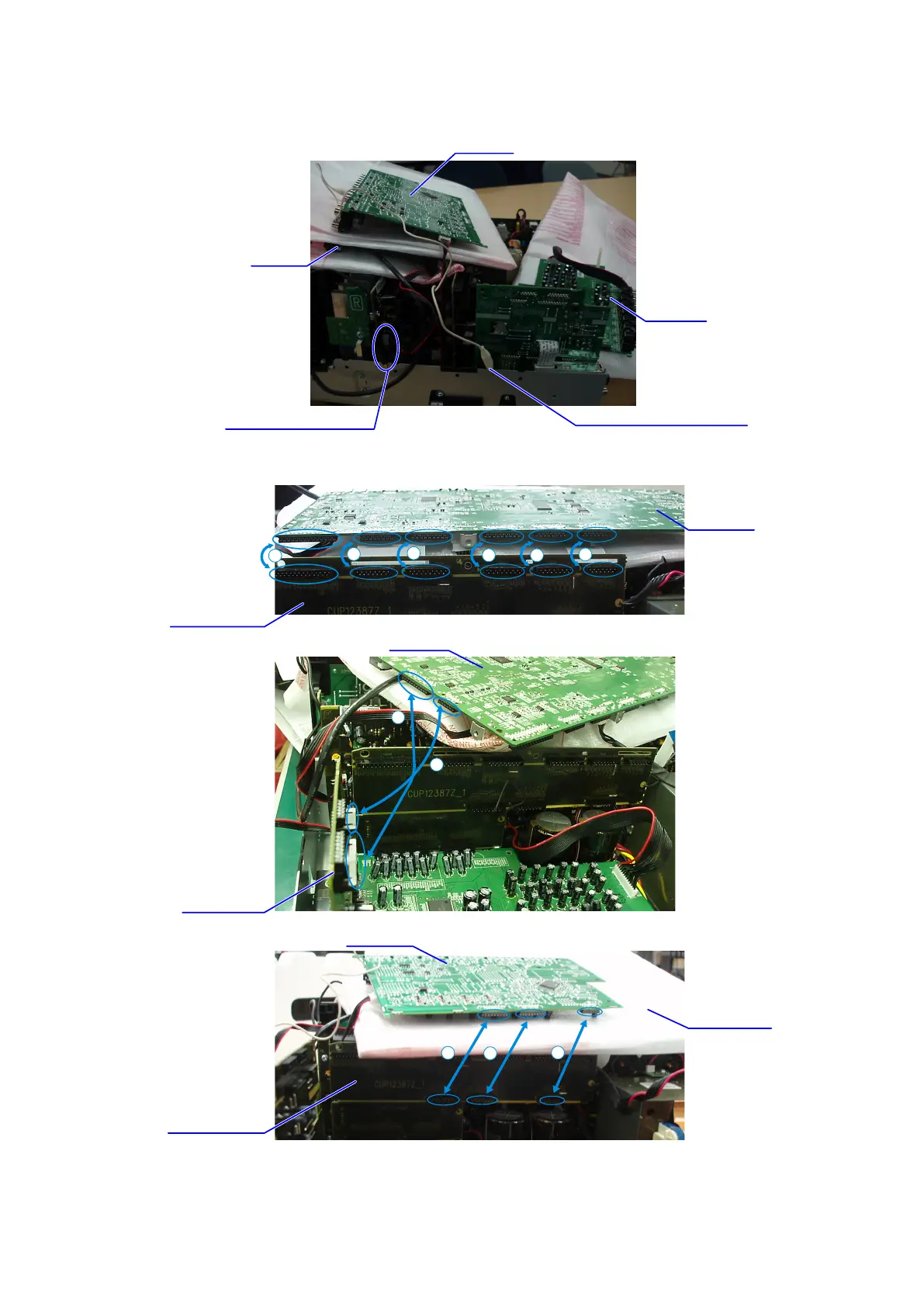

(3) Detach PCB HDMI from the chassis, and turn it over.
Please put an insulation sheet that is larger than PCB HDMI under PCB.
b
Connect the ground point of PCB to the chassis with a ground lead or the like.
(4) Connect the six extension jig cables.
HDMI PCB
CHASSIS - HDMI CONECTOR
CHASSIS - COMPOSIT CONECTOR
AUDIO PCB
VIDEO PCB
10
11
Insulation sheet
PCB VIDEO
PCB FRONT CNT
9
2
1
PCB HDMI
PCB SIDE CNT
3
4
5
6
7
8
PCB HDMI
PCB FRONT CNT
