Marantz SR6006/U1B - Page 64

64

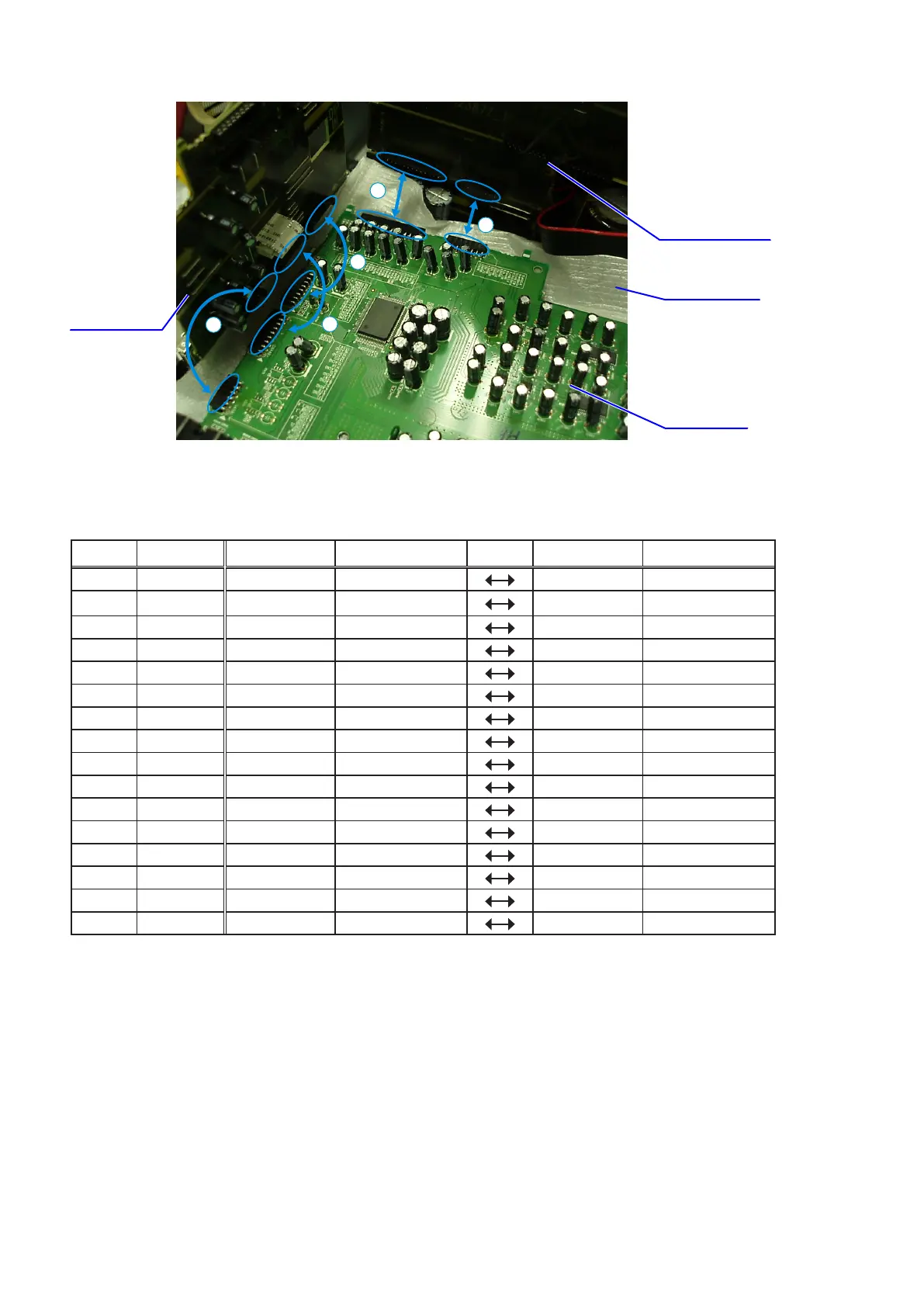

Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
11 pin CN28A SIDE CNT CN28B HDMI
w
21 pin CN27A SIDE CNT CN27B HDMI
e
27 pin CN24A FRONT CNT CN24B HDMI
r
15 pin CN26A FRONT CNT CN26B HDMI
t
17 pin CN25A FRONT CNT CN25B HDMI
y
17 pin CN22A FRONT CNT CN22B HDMI
u
15 pin CN21A FRONT CNT CN21B HDMI
i
13 pin CN23A FRONT CNT CN23B HDMI
o
17 pin CN52A FRONT CNT CN52B AVIDEO
Q0
15 pin CN51A FRONT CNT CN51A AVIDEO
Q1
13 pin CN53A FRONT CNT CN53A AVIDEO
Q2
11 pin CN45A SIDE CNT CN45B INPUT
Q3
17 pin CN44A SIDE CNT CN44B INPUT
Q4
15 pin CN41A SIDE CNT CN41B INPUT
Q5
27 pin CN42A FRONT CNT CN42B INPUT
Q6
15 pin CN43A FRONT CNT CN43B INPUT
PCB FRONT CNT
14
12
13
15
16
PCB SIDE CNT
PCB INPUT
Insulation sheet
