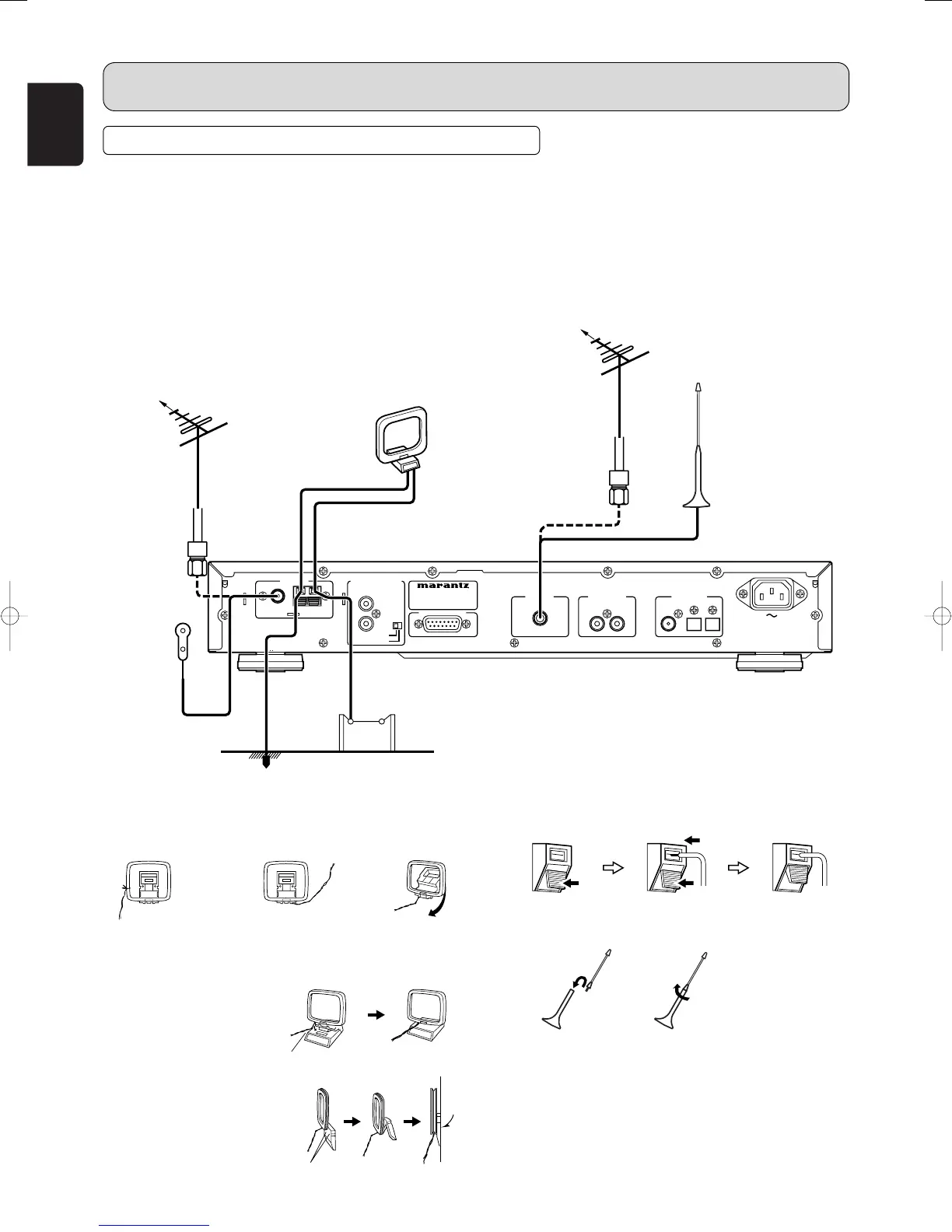

CONNECTING THE ANTENNA TERMINALS
7
Connecting a DAB outdoor antenna
• If good reception cannot be achieved with the included DAB indoor antenna, use a DAB outdoor antenna. Connect an F male
type connector to the coaxial cable and connect the antenna to the DAB COAX 75 Ω/ohms terminal.
7
Installing the DAB indoor antenna
q DAB station reception (
☞
page 18).
w Use “Tuning aid” to set position at which reception sensitivity is optimum (
☞
page 21).
CONNECTIONS
SERVICE PORT
MODELMODEL NO. NO. ST7001ST7001
ANTENNA REMOTE CONTROL
IN
OUT
INTERNAL
EXTERNAL
R L
COAX.DAB
(
75 Ω
)
OPT. RDI
ANTENNA ANALOG OUT DIGITAL OUT
AC INAC IN
FM(75FM(75 ΩΩ )) GNDGND AMAM
7
AM loop antenna assembly
7
Connection of AM antennas
7
DAB indoor antenna assembly
Note
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect
the AM loop antenna.
• Make sure AM loop antenna lead terminals do not touch
metal parts of the panel.
• There is a magnetic on the bottom surface of the DAB
indoor antenna. Keep it away from monitors, etc.
Direction of broadcasting station
75 Ω/ohms
COAXIAL cable
FM outdoor antenna
DAB outdoor antenna
FM indoor
antenna
(Supplied)
AM loop antenna
(Supplied)
DAB indoor antenna
(Supplied)
q
r
we
Remove the vinyl tie
and take out the
connection line.
Connect to the AM
antenna terminals.
Bend in the reverse
direction.
a. With the antenna on top
any stable surface.
b. With the antenna attached
to the wall.
Mount
Installation hole Mount on the wall, etc.
1. Push the lever. 2. Insert the
conductor.
3. Return the lever.
Ground
AM outdoor antenna
Use tape or a pin to
fasten the tip of the
antenna to the wall,
a rack, etc.
qw
Mount the antenna’s screw
to the stand.
