TS 910 TRANSFER SWITCH
PM140 REV 2 14/01/23 50 Thomson Power Systems

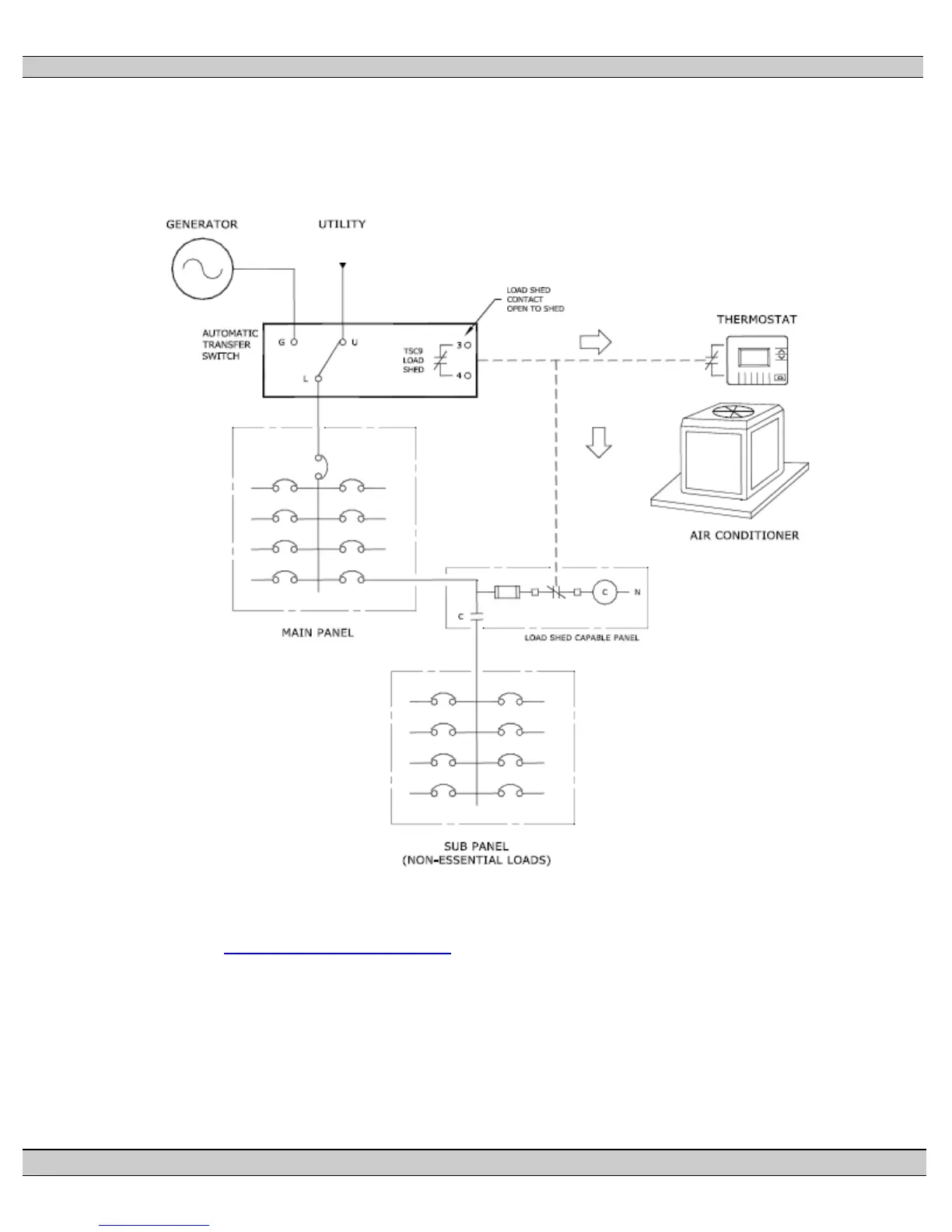

For controlling loads that do not have integral control inputs, suitably rated AC power
contactor panels must be used for interconnection with the Load Shed contact. Refer to
following typical connection example:
Additional information on TS 910 kW Load shed optional accessory can be obtained from our
Website (
www.thomsontechnology.com).
