Model WT3-201 Wire Crimp Pull Tester User’s Guide
15
11.4 DATA Key Functions
The DATA key can be configured to perform several functions. To configure the DATA key, select DATA
Key from the menu. The display appears as follows:
Three options are available:
Selection Function when pressing DATA
RS232/USB Output
Outputs data via the serial and USB ports
Mitutoyo Output
Outputs data via Mitutoyo (Digimatic) through the serial port
Memory Storage
Stores a reading to memory (refer to the Memory section for details)
Any combination of the above functions may be selected.

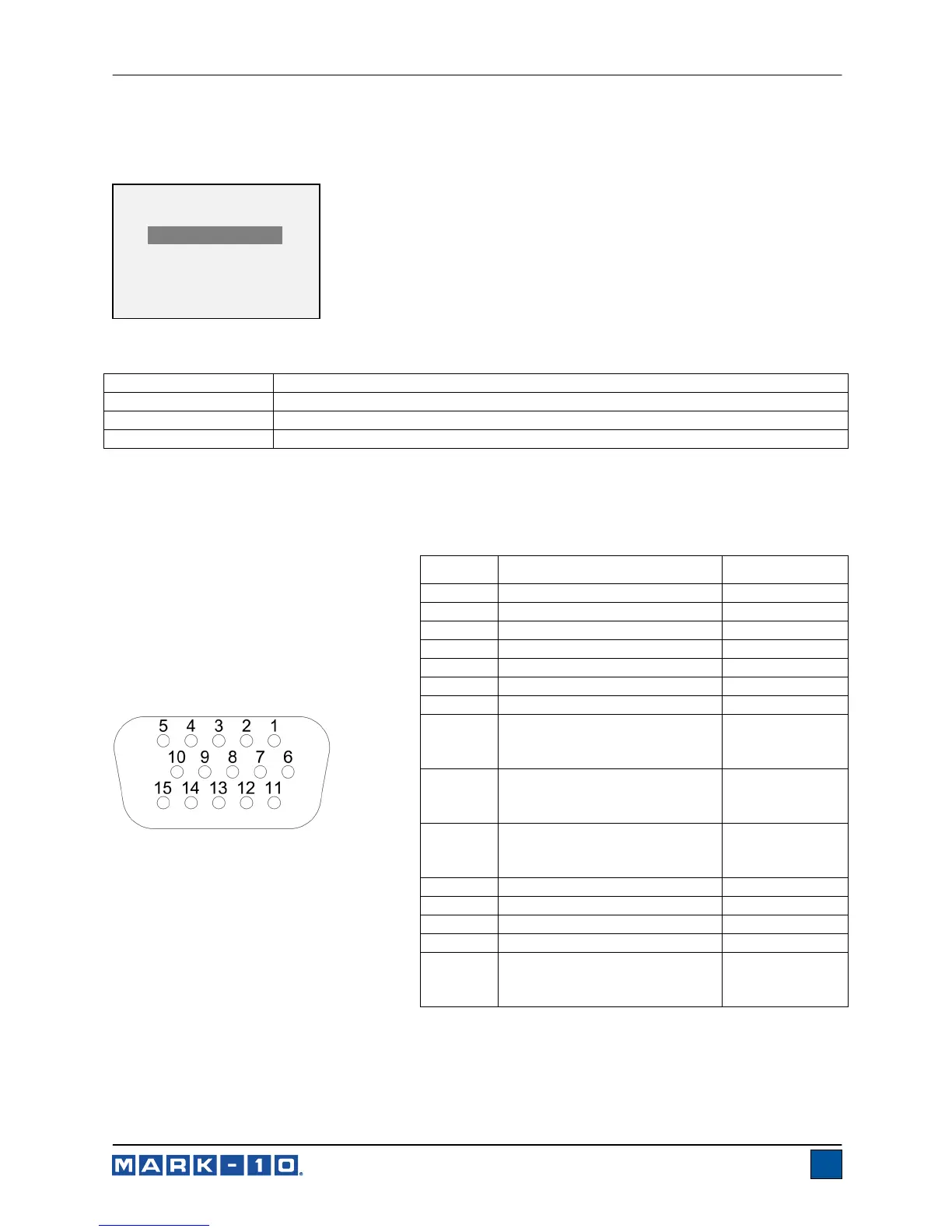

11.5 I/O Connector Pin Diagram (DB-9HD-15 female)
* Maximum voltage: 40V.
Pin No. Description Input / Output
1 Signal Ground ---
2 * Tension Overload * Output *
3 RS-232 Receive Input
4 RS-232 Transmit Output
5 +12V DC Input / Output
6 Analog Output Output
7 * Compression Overload * Output *
8 Mitutoyo Clock or
Output Bit 2 (mutually
exclusive)
Output
9 Mitutoyo Data or
Output Bit 0 (mutually
exclusive)
Output
10 Mitutoyo Request or
Input Bit 3 (mutually
exclusive)
Input
11 Set Point Pin 1 (SP1) Output
12 Set Point Pin 2 (SP2) Output
13 Set Point Pin 3 (SP3) Output
14 External Trigger Input
15 * Mitutoyo Ready or
Output Bit 1 (mutually
exclusive) *
Output *
DATA KEY
* RS232/USB Output
Mitutoyo Output
Memory Storage
