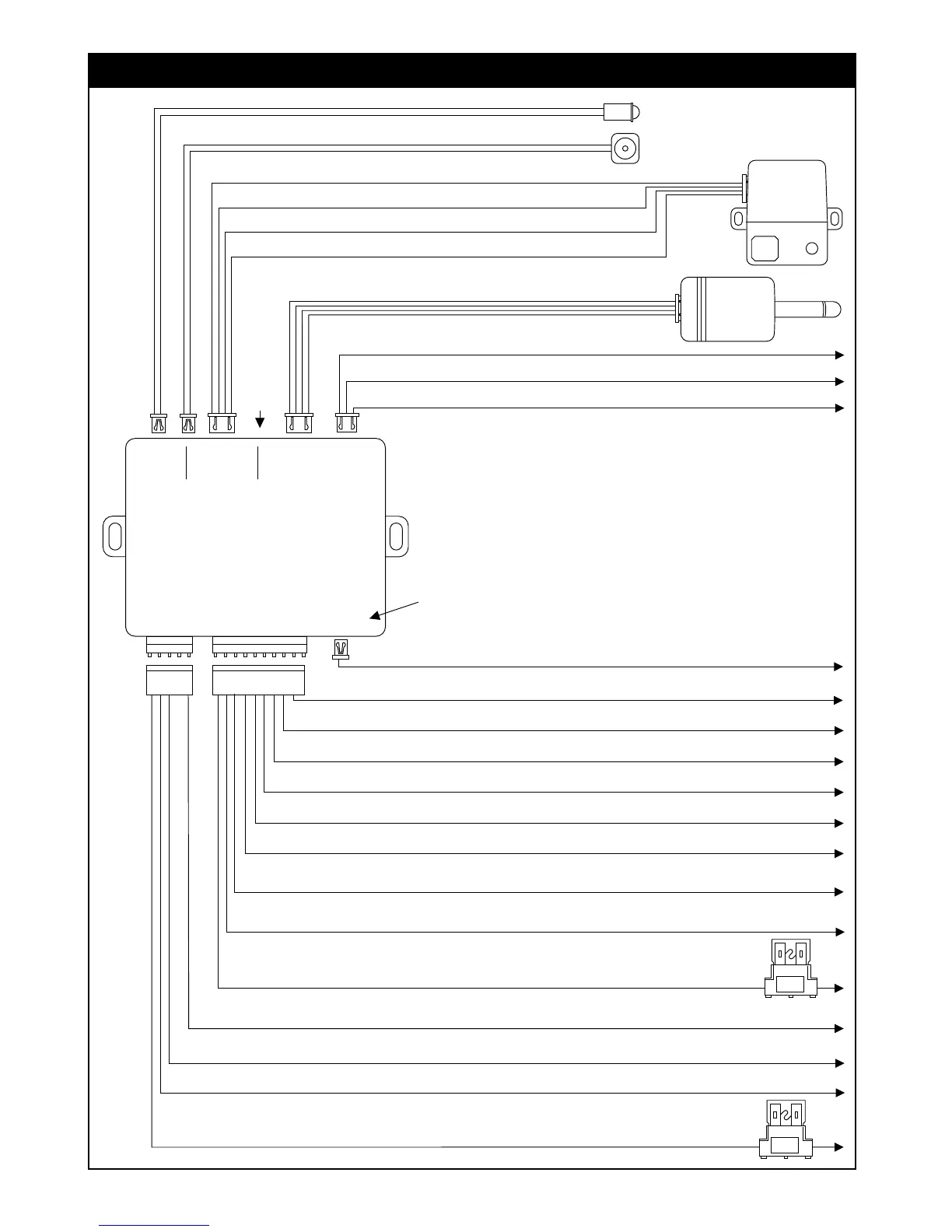

Marksman X4 - Wiring Diagram

X4-IM 3-6-08 Rev. A
© Copyright 2008 Magnadyne Corporation
5-Pin
White
10-Pin
White
2-Pin
Orange
Black Wire Ground to Vehicle Frame
Yellow Wire to Ignition Switched +12 V
Red Wire To Battery+12V Input
Light Brown Wire Horn Output
Brown Wire Siren Output (+)
Blue Wire Negative AUX Trigger Input
Violet Wire Positive Door Pin Trigger Input
White Wire Parking LightsRelayOutput
10A
Red/White Wire Parking LightsRelay Input
Green Wire Negative Door Pin Trigger Input
Violet/Black Wire Programmable Channel 4Output
Programmable Channel 3 Ouput (Trunk)
5A
Starter Disable Port
(See Plug-in Ports section for more information)
2-Pin
White
LED Indicator
Valet Switch
Green Wire: Warn Away Ground Trigger
Blue Wire: Zone 4 Ground Trigger
Black Wire: Negative Power
Red Wire: +12V Power
Green Wire : (-) LockPulse
Blue Wire : (-) UnlockPulse
Light Blue Wire : 2nd Unlock
2-Pin
Blue
4-Pin
White
4-Pin
Blue
3-Pin
Black
White/Red Wire
Domelight Supervision Output
Black/White Wire
Orange Wire Ground When Armed Output
4-Pin
Brown
DBI
Port
Wiring Diagram
