P5 – Operator Guide 6
.
Gauge System Troubleshooting 21
6.

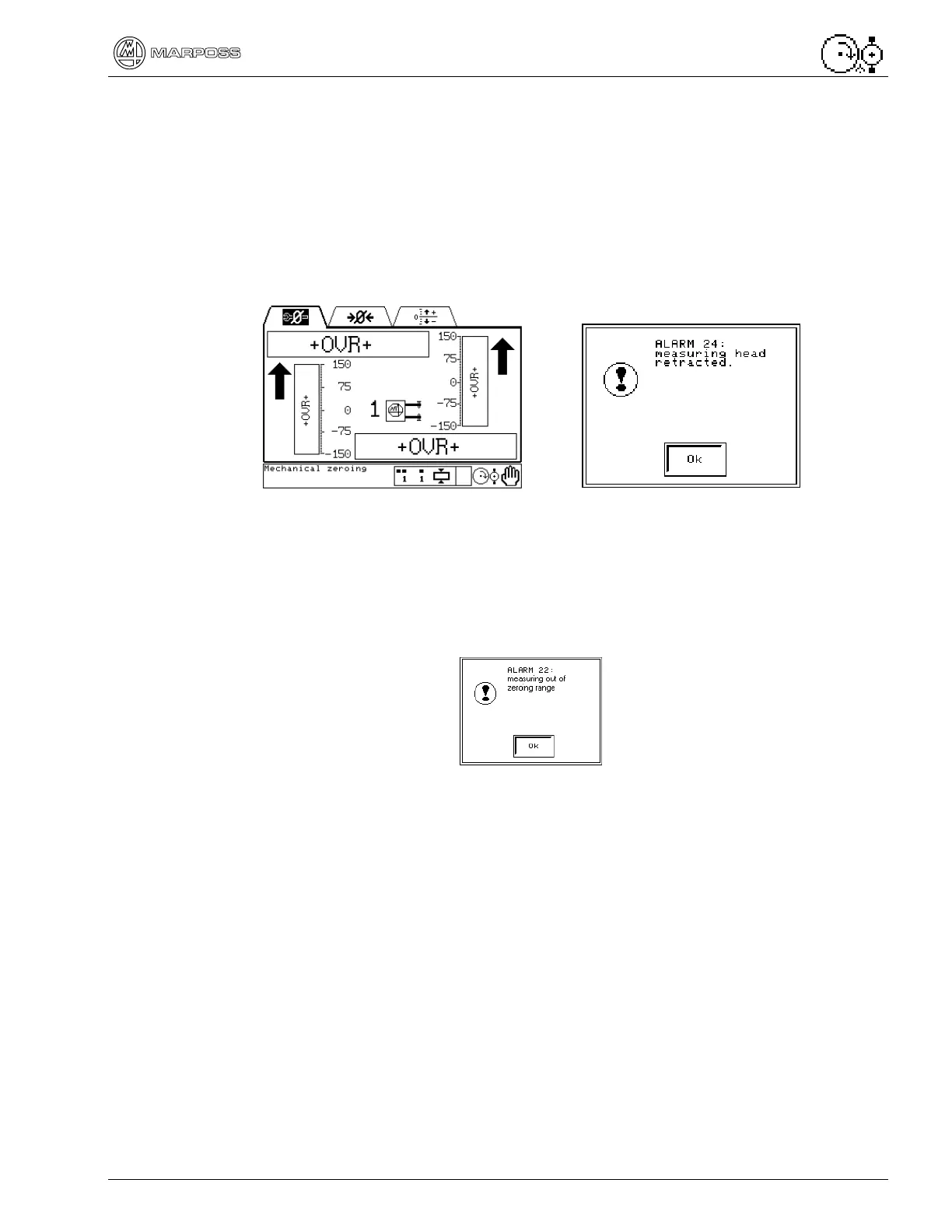

GAUGE SYSTEM TROUBLESHOOTING
6.1.
Zero Troubleshooting
Whenever the gauge system cannot be zeroed, there are several possible causes
and solutions.
6.1.1.
Cannot Mechanically Zero
The measuring head finger/contact assembly is retracted.
1. Release finger/contact assembly onto master workpiece using machine controls.
2. Check if machine’s logic is sending the “Retraction” signal.
3. Check if gauge is receiving the “Retraction” signal.
6.1.2.
Cannot Electrically Zero
The Zeroing range of the measuring head has been exceeded.
1. Perform Mechanical Zeroing and Electrical Zeroing of the corresponding
measuring head.
6.1.3.
Cannot make Zero Adjustments
The accumulated Zero Adjustments have exceeded the zeroing range for the
measuring head.
1. Perform Mechanical Zeroing and Electrical Zeroing of the corresponding
measuring head.
