22 6.
Gauge System Troubleshooting P5 – Operator Guide

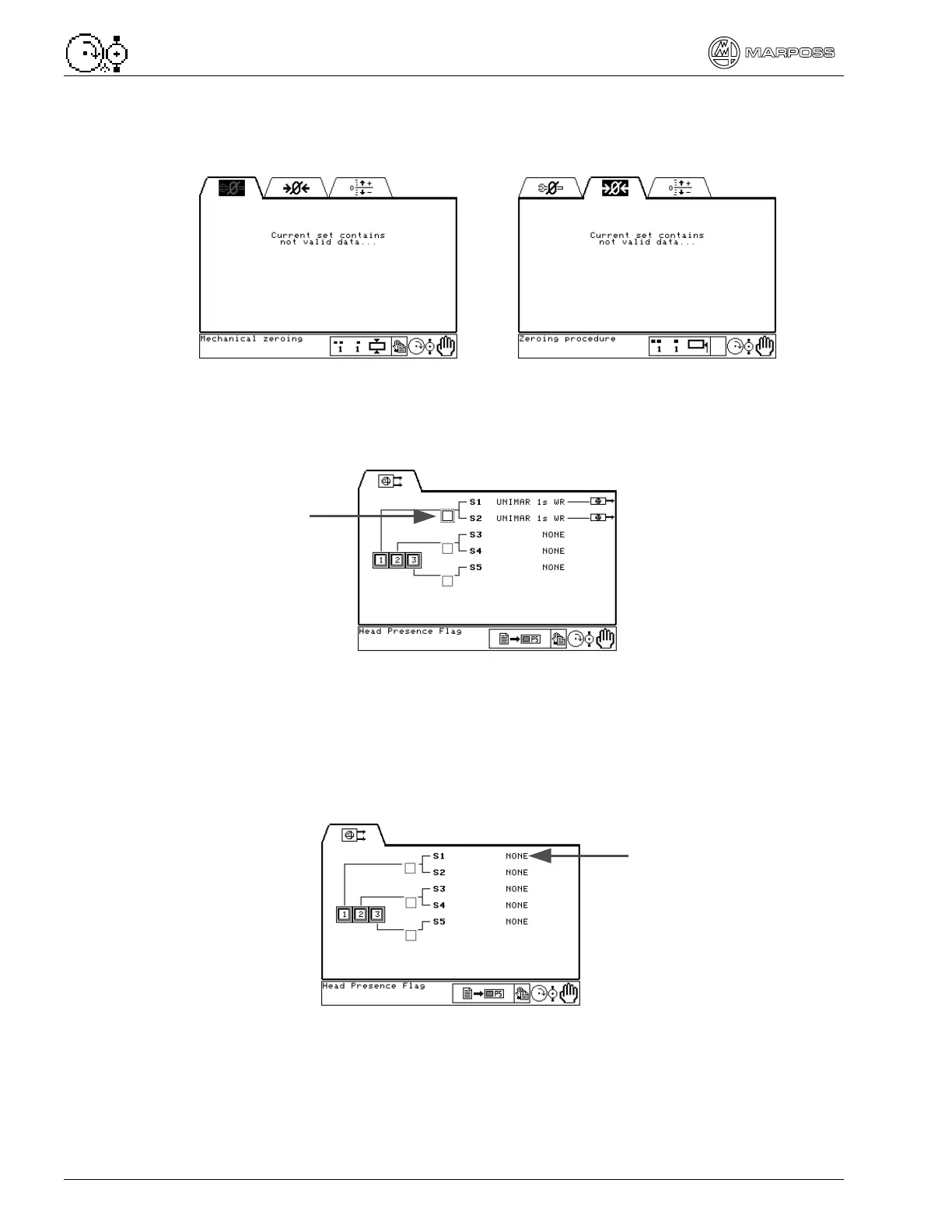

6.1.4. Zeroing page is blank
The Zeroing pages have the message:
Measuring Head not Enabled
This appears if the “Head Presence Flag” box on the Hardware Module programming
page does not have an X in it.
1. Place an “X” in the “Head Presence Flag” box, see Programming Manual.
2. Perform Mechanical Zeroing and Electrical Zeroing of the corresponding
measuring head.
Measuring Head not Programmed
The gauge system has not been programmed into the hardware module.
Call Marposs service, the measuring head must be configured into the hardware
module, followed by programming the measurement.
No measuring head
programmed into
Hardware module.
Head Presence Flag
box does not have an
X in it.
