P5 – Operator Guide 2
.
How the gauge is organized 5
2.3.
Folders

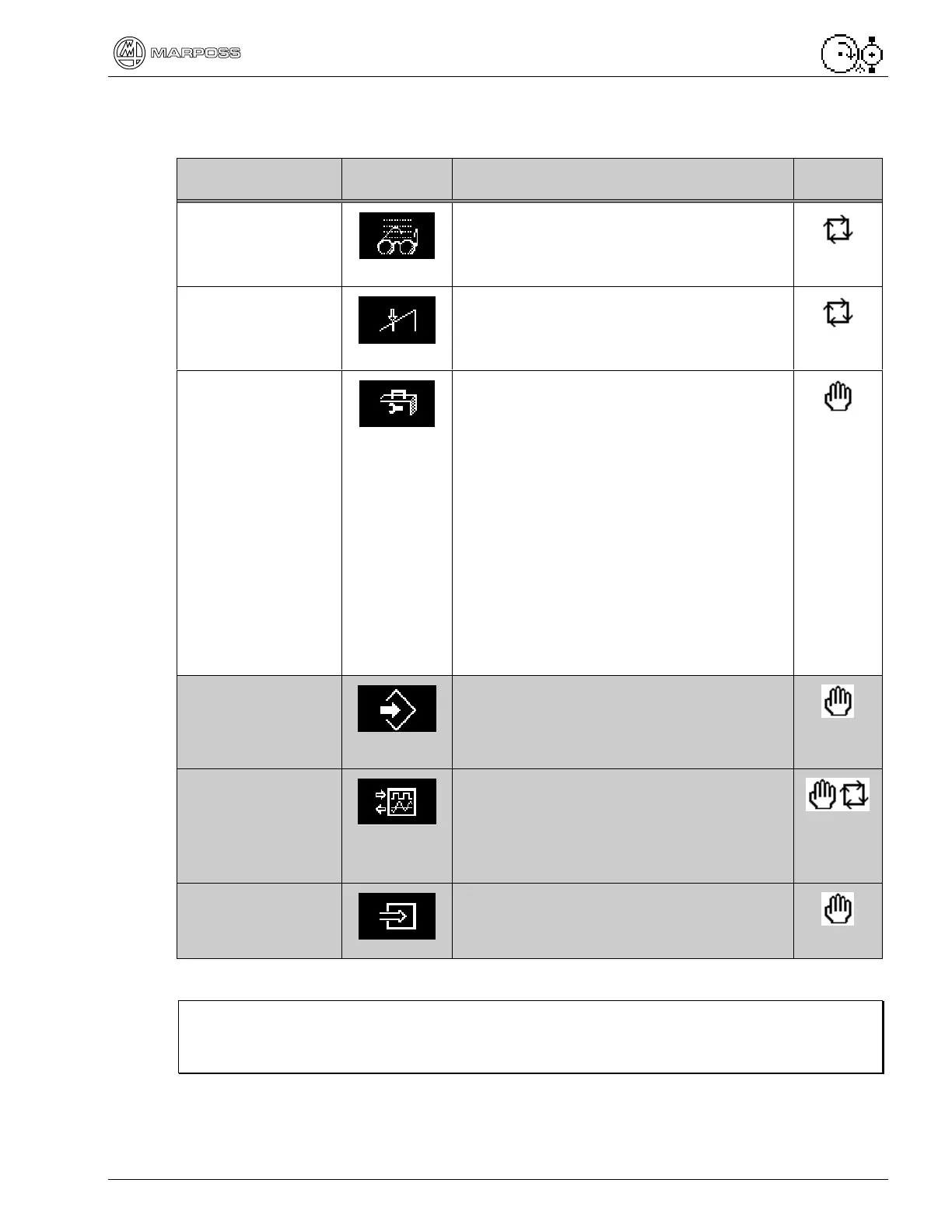

Seven main folders contain all the functions of the gauge.
FOLDER NAME ICON FUNCTION MODE
Viewing Viewing of measurements, zeroing
conditions and application program-
ming.
General
Adjustments
Gives access to the pages for zero
adjustments and modification of control
points value.
Utilities
Gives access to the following
environments:
- measuring head setup (mechanical
zeroing),
- electrical zeroing,
- zero adjustment,
- viewing the controls points,,
- viewing measurement damping for
interrupted surfaces,
- viewing the measurement,
- zeroing summary,
- viewing the programmed data.
Programming Gives access to the environment where
the specific measuring cycle is
parametrized.
Inputs & Outputs Allows to select the I/O’s involved in the
test bit function and gives access to
arm ratio and retraction value
autoacquisition functions (if available).
External Info
Allows viewing the current configuration
for the specific application.
Note: The Viewing, General Adjustments and Utilities folders are described in
this Operator Guide. The other folders are described in the “Programming
Manual”.
