4 2.

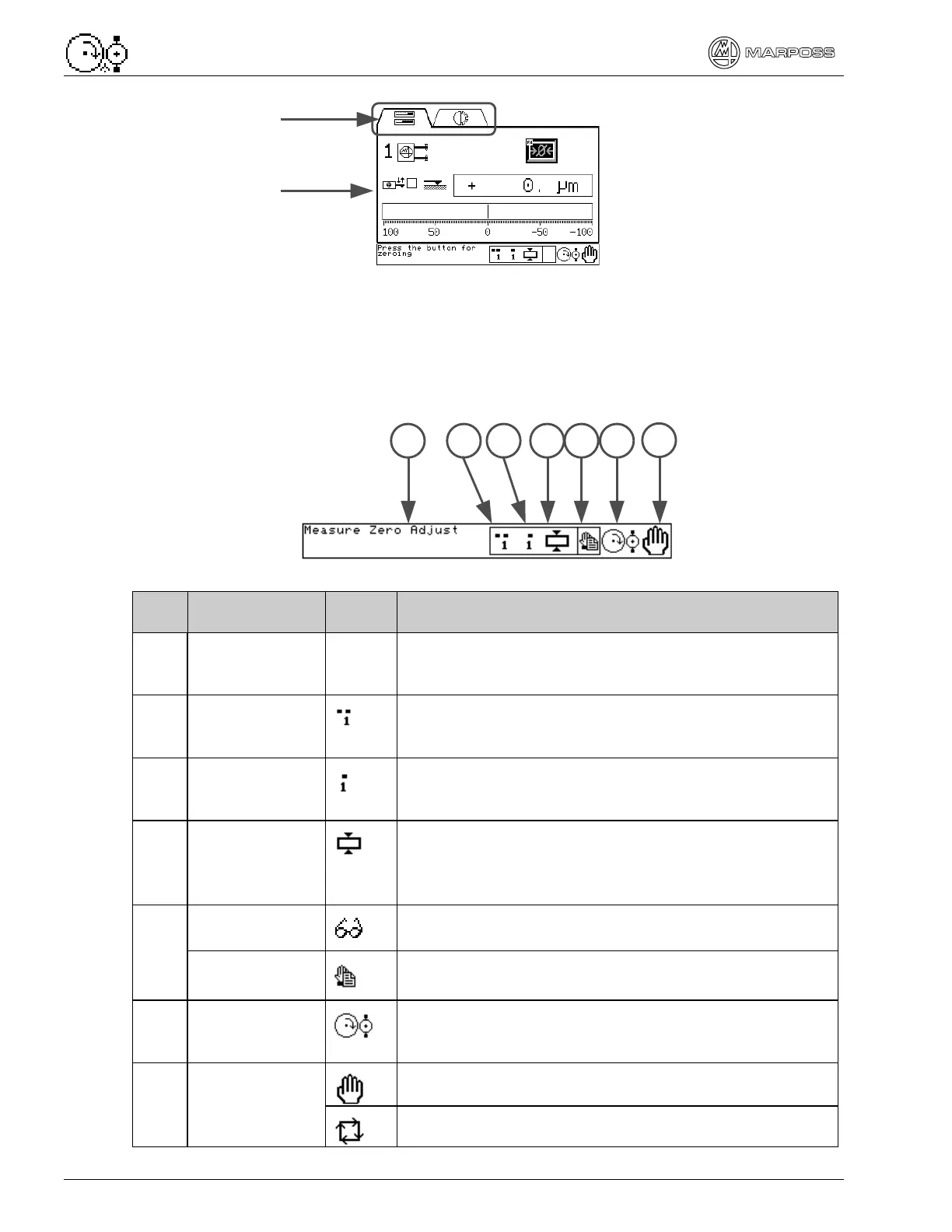

How the gauge is organized P5 – Operator Guide
Each page has three sections:
Icons across the top indicate the page.
Function information in the middle including software buttons.
Messages and information along the bottom
Message and Information section
1 234567
N
AME
I
CON
F
UNCTION
1
Message Either the name of the highlighted icon or button or
instructions on which button to press.
2
Part number Currently selected workpiece number. The
software can handle up to 16 different workpieces.
3
Cycle
number
Currently selected cycle number. The can handle
up to 16 different cycles.
4
Measurement
application
A graphical representation of the programmed
application. In this case “Single diameter
measurement for external”.
Data display The operator is viewing data
5
Data entry The operator is changing data.
6
In-process The amplifier is configured for In-process
measuring cycles.
Manual
7 Mode
Automatic
Pages
Function
information
To Next Page
