MARUTI SUZUKI CELERIO - All Seat Belts Except Rear Center; Rear Center Seat Belt

2-17
BEFORE DRIVING
76MH1-74E
60A040

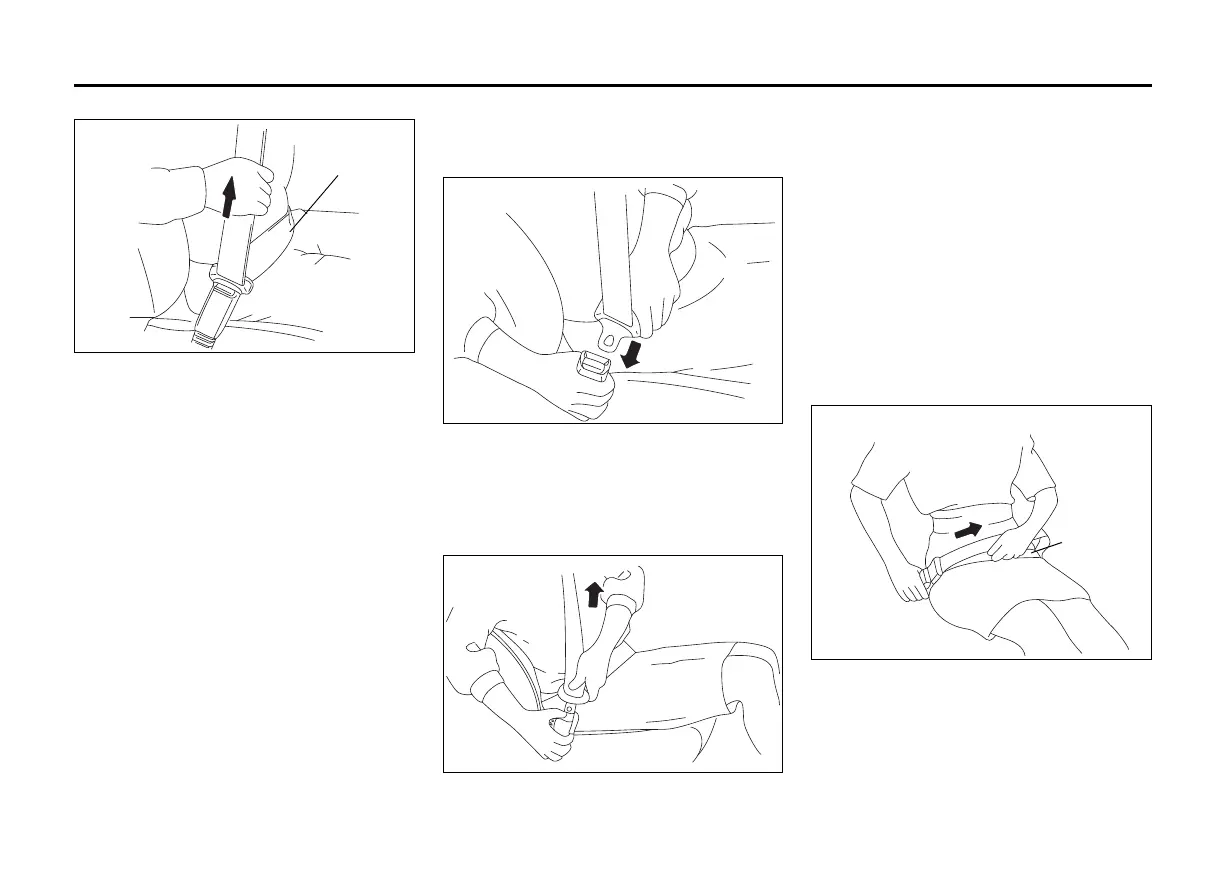

To reduce the risk of sliding under the belt
during a collision, position the lap portion
of the belt across your lap as low on your
hips as possible and adjust it to a snug fit
by pulling the shoulder portion of the belt
upward through the latch plate. The length
of the diagonal shoulder strap adjusts itself
to allow freedom of movement.
All Seat Belts Except Rear Center
All seat belts except rear center are the
lap-shoulder belt.
60A036
To fasten the seat belt, sit up straight and
well back in the seat, pull the latch plate
attached to the seat belt across your body
and press it straight into the buckle until
you hear a “click”.
60A039
To unfasten the seat belt, push the button
on the buckle and retract the belt slowly
while attaching a hand to the belt or/and
the latch plate.
Rear Center Seat Belt
Rear center seat belt is the lap belt.
To fasten the belt, pull the latch plate
attached to the seat belt across your hips
and press it straight into the buckle until
you hear a “click”. To reduce the risk of
sliding under the belt during a collision,
position the belt across your lap as low on
your hips as possible and adjust it to a
snug fit.
80JS028
To tighten the belt, pull the free end of the
belt across alongside the lap strap.
Low on hips
EXAMPLE
EXAMPLE
EXAMPLE
TO TIGHTEN
Low on hips
EXAMPLE
