MARUTI SUZUKI CELERIO - Driver’s Seat Belt Reminder

2-18
BEFORE DRIVING
76MH1-74E
80JS029

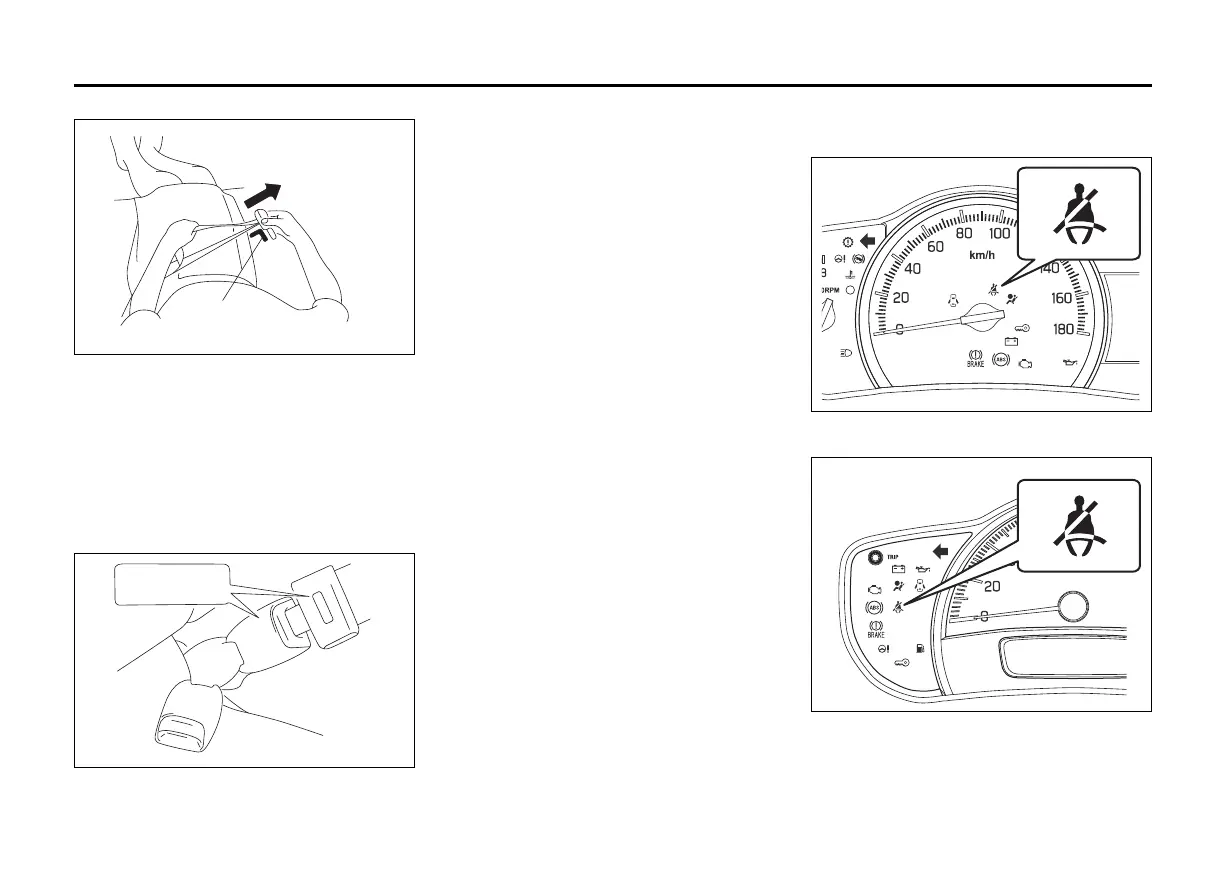

To lengthen, release the latch plate from
the buckle, pull the latch plate (adjuster) in
the direction of the arrow, at right angles to
the belt. The latch plate should then be
refitted into the buckle and the belt tight-
ened as previously described.
To unfasten the belt, press the release but-
ton on the buckle catch.
80JS031
NOTE:
To identify the center seat belt buckle and
latch plate in the rear seat, “CENTER” is
marked on the buckle and latch plate of the
center lap belt. The buckles are designed
so a latch plate cannot be inserted into the
wrong buckle.
Driver’s Seat Belt Reminder
With tachometer
76MH028
Without tachometer
76MS013
When the driver does not buckle his or her
seat belt, the driver’s seat belt reminder
light in the instrument cluster will come on
TO LOOSEN
Right angle
EXAMPLE
CENTER
CENTER
CENTER
EXAMPLE
EXAMPLE
EXAMPLE
