Maruyama B42L - Installing Debris Shield

Installing Debris Shield
[B42L, B42]
Debris Shield

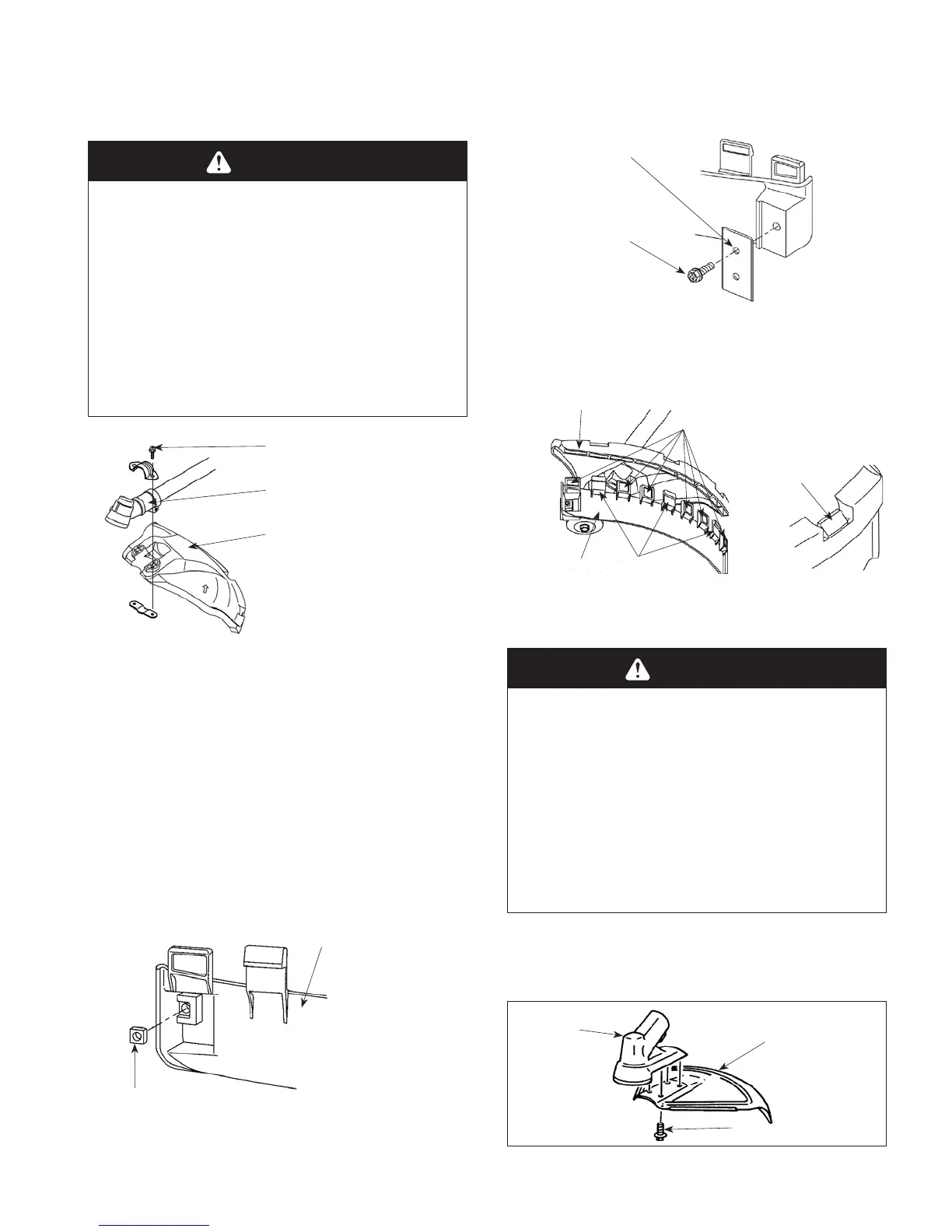

Attach the debris shield to the gearcase with the two
M6 x 30 screws as shown on Fig. 1.
Extension Shield
(Install the string cutoff blade and shield extension to
the debris shield.)
1. Insert the square nut into shield extension as
shown on Fig. 2.
2. Attach the String Cutoff Blade to shield extension
using M5 x 20 Screw, locking with square nut (on
Fig.2) as shown on Fig. 3 .
3. Enter the guide in the slot of debris shield on Fig.
4. Make sure place the three hooks into the posi-
tion on the shield as shown on Fig.5.
[B42A]
Debris Shield
Attach the debris shield to the gearcase with the four
M5
× 10 screws.
— US-12 —
POTENTIAL HAZARD
• Foreign objects can be thrown by the
Trimmer/Brushcutter.
WHAT CAN HAPPEN
• Contact with thrown objects can cause
personal injury.
HOW TO AVOID THE HAZARD
• Never operate the Trimmer/Brushcutter
without the debris shield in place.
M6 x 30 Screw (2)
Gearcase
Debris Shield
Shield extension
Square nut
String Cut off Blade
M5 x 20 Screw
Debris Shield
Fig.1
Guide
Shield extension
Hook
Fig.2
Fig.3
Fig.4
Hook
Fig.5
Gearcase
Screws (4)
Debris Shield
WARNING
POTENTIAL HAZARD
• Foreign objects can be thrown by the
Trimmer/Brushcutter.
WHAT CAN HAPPEN
• Contact with thrown objects can cause
personal injury.
HOW TO AVOID THE HAZARD
• Never operate the Trimmer/Brushcutter
without the debris shield in place.
WARNING
