Masibus LC5296 DC User Manual

Model: LC5296 Dual Channel Temperature Controller
Doc. Ref. no.:- m61C/om/101
Issue no. 01D/ENGG-114
User’s Manual Page 29 of 30
10.5 Jumper Settings for Add-on Card Selection & Retransmission
Output Type
 These units come with different Variants differing by various Output option
available.

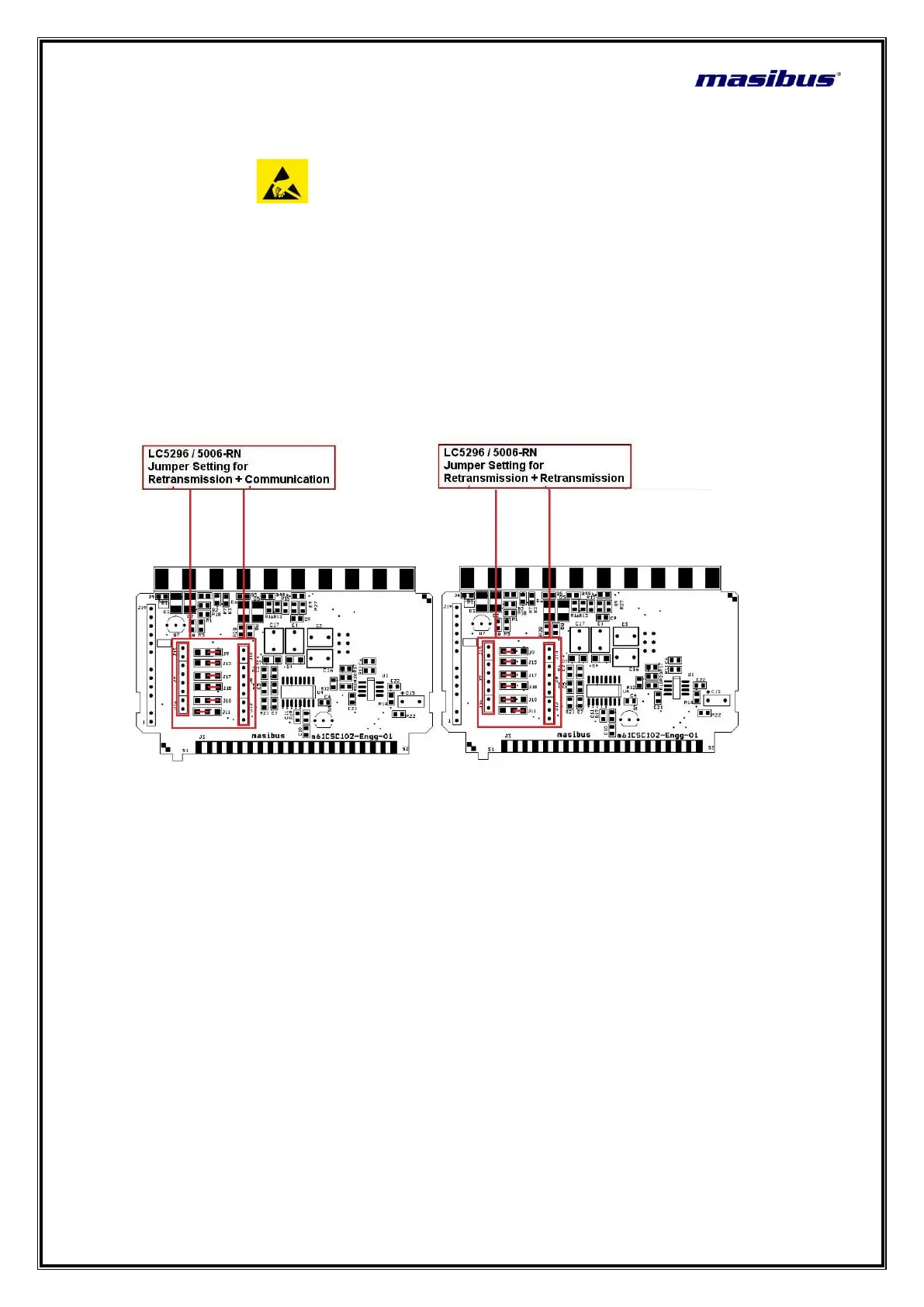

 There are Two Addon Card Slots available on PCB of Signal Card. Among
them One Slot is fixed for Retransmission (Analog) Output. And the other Slot
can be used for either Retransmission or RS-485 Communication Card by
appropriate Jumper setting shown in below figure.
 0E (SMD 0805) Resistor is used for shorting the Jumper.
There are mainly Two types of Retransmission Output is available:
o Voltage (0-10VDC, 0-5VDC, 1-5VDC)
o Current (4-20mADC, 0-20mADC)
 This can be Settable by changing the Position of Shorting Link Jumpers on
Retransmission Add-on Card shown in below figure.
