Masibus LC5296 DC User Manual

Model: LC5296 Dual Channel Temperature Controller
Doc. Ref. no.:- m61C/om/101
Issue no. 01D/ENGG-114
User’s Manual Page 10 of 30
4. TERMINAL CONNECTIONS

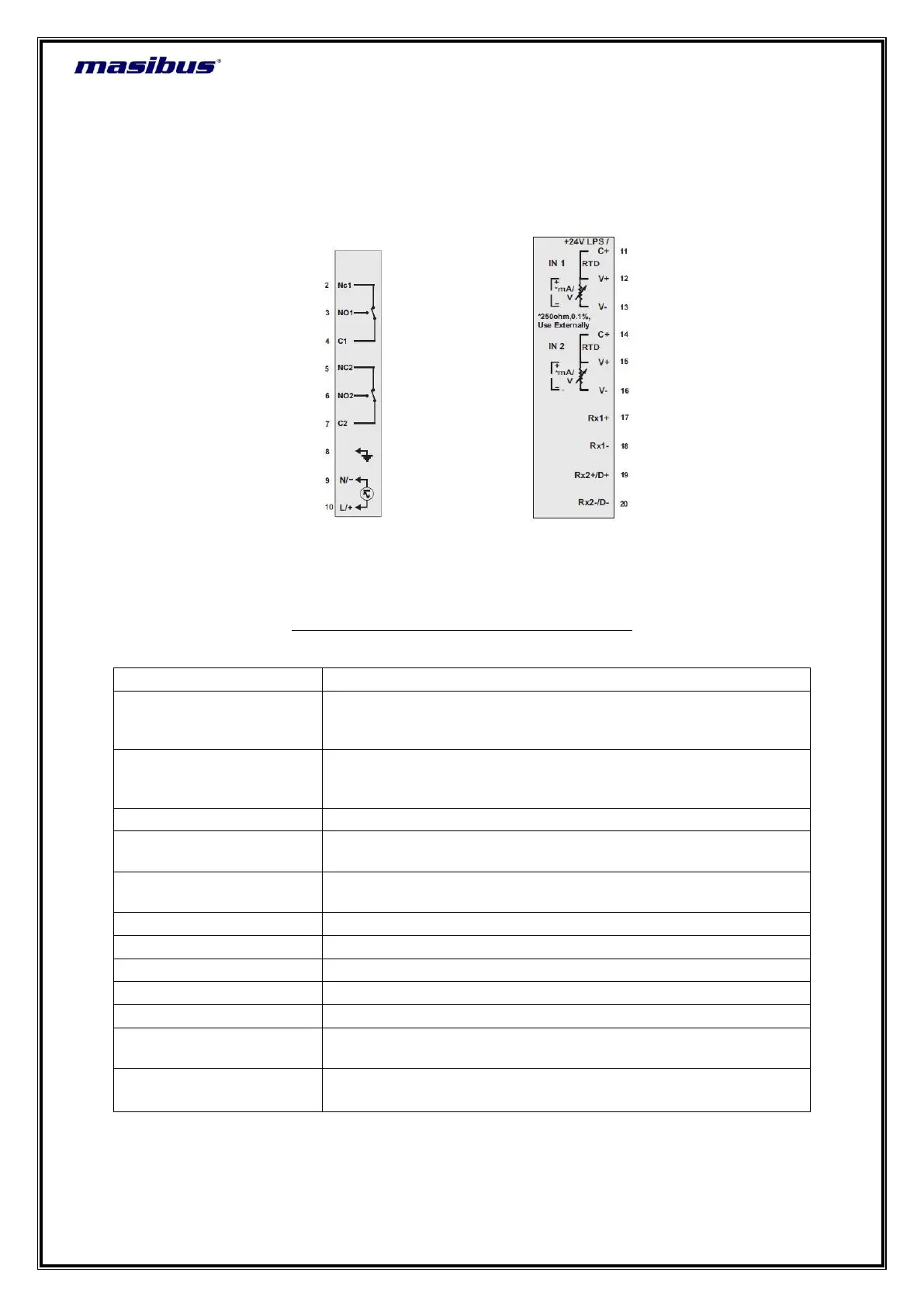

Fig 4.1: Terminal Connection Detail of LC5296-DC
Terminal No.
Description
2 (NC1)
3 (NO1)
4 (C1)
 For Relay-1 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
5 (NC2)
6 (NO2)
7 (C2)
 For Relay-2 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
8 (Earth)
Earth Connection
9 (N/-)
10 (L/+)
Power Supply Input
11 (24+ LPS/C+)
24VDC Loop power supply Terminal 13 is ground Reference or for
RTD input-1 (Three wire Compensation).
12 (V+)
For RTD Input-1 or Linear Input -1.
13 (V-)
For RTD Input-1 or Linear Input -1.
14 (C+)
For RTD input -2 only (Three wire Compensation).
15 (V+)
For RTD Input-2 or Linear Input -2.
16(V-)
For RTD Input-2 or Linear Input -2.
17 (Rx1+)
18 (Rx1-)
 For Retransmission-1 output
19 (Rx2+ / D+)
20 (Rx2- / D-)
 For Retransmission-2 output
 Modbus-RTU Communication Output
