Masibus LC5296 DC User Manual

Model: LC5296 Dual Channel Temperature Controller
Doc. Ref. no.:- m61C/om/101
Issue no. 01D/ENGG-114
User’s Manual Page 13 of 30

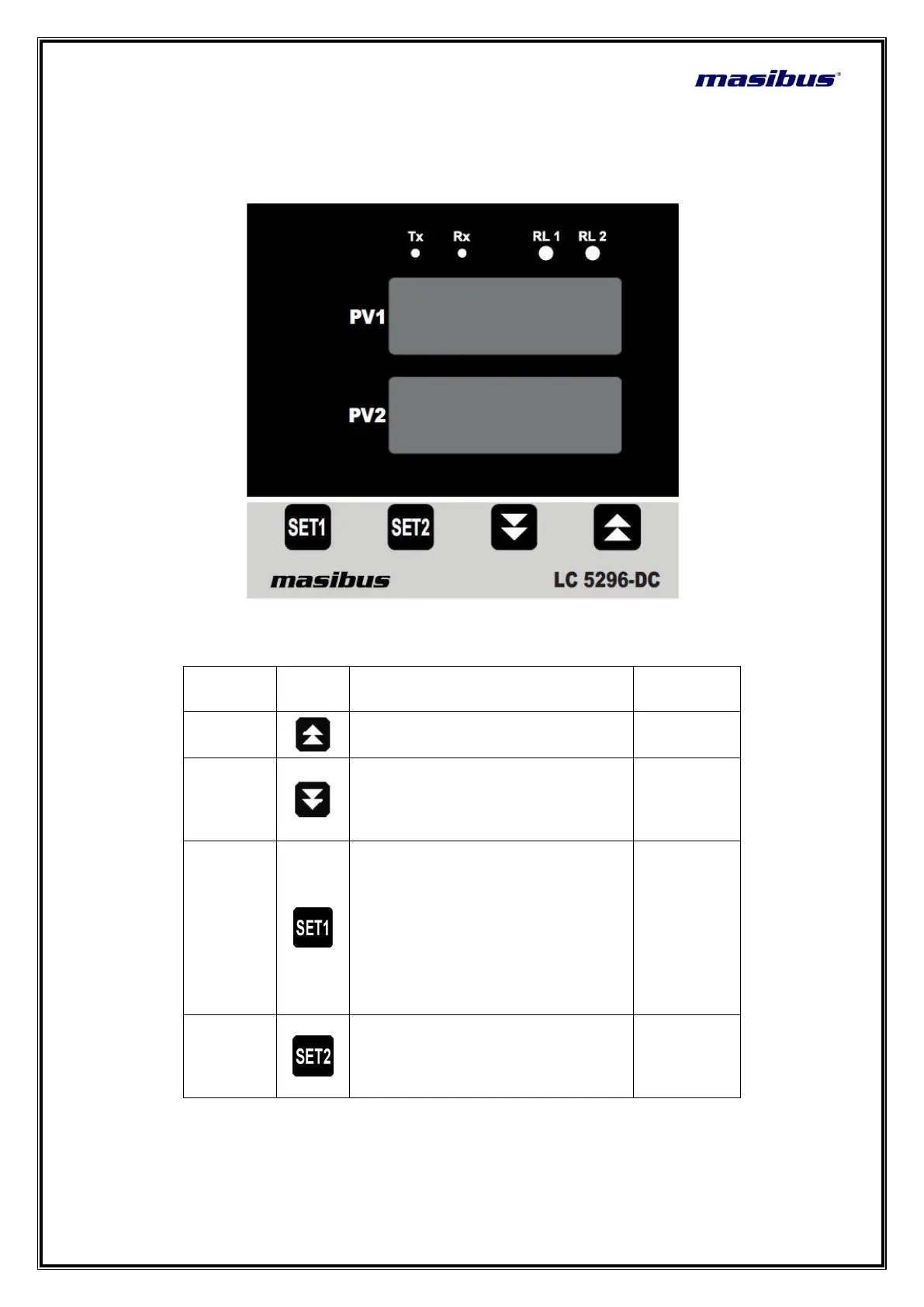

5. FRONT PANEL DETAILS
5.1 Front Panel Description
Name of
Part
Symbol
Function
LC5296-DC
Increment
Key
 Increment the Value of any
Parameter.

Decrement
Key
 Decrement the Value of any
Parameter.
 Shows ambient value for T/C Input
in RUN mode.

SET-1 Key
(Menu /
Enter Key)
 Shows Set Point-1(ST-1), if pressed
in RUN mode.
 In Sub Menu it can be used to get to
the next Parameter.
 It is also used to save the
parameters to nonvolatile memory,
when user setting a proper data by
Increment and decrement key for
parameter configuration.

SET-2 Key
 Shows Set Point-1(ST-2), if pressed
in RUN mode.
 Also used to store modified
SetPoint-2 Value.

