Masibus LC5296-H User Manual

Model: LC5296-H / LC5296 / 5006-RN / 408-M / LC5248E
Doc. Ref. no.:- m61C/om/101
Issue no. 13
User’s Manual Page 12 of 36
4.2 LC5296-H / 408-M

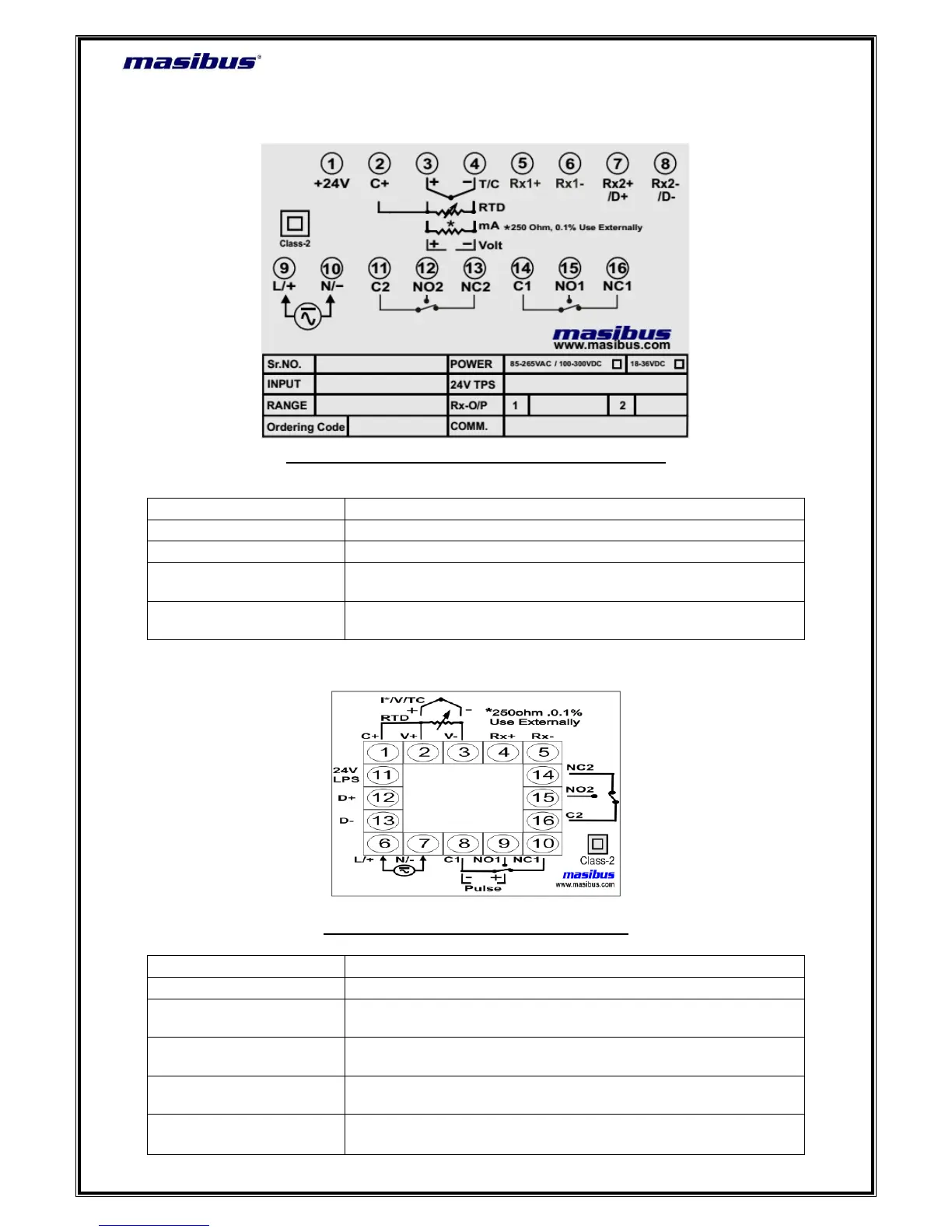

Fig 4.4: Terminal Connection Detail of LC5296-H(0.56”)
Terminal No.
Description
1 (LPS+)
24VDC Loop power supply Terminal 4 is ground Reference.
2
For RTD Input Only (Three wire Compensation).
3 (TC+/ V+)
4 (TC- / V- / LPS-)
For Thermocouple, RTD & Linear Input
9 (L/+)
10 (N/-)
Power Supply Input
4.3 LC5248E
Fig 4.5: Terminal Connection Detail of LC5248E
Terminal No.
Description
1
For RTD Input Only (Three wire Compensation).
2 (TC+/ V+)
3 (TC- / V- / LPS-)
For Thermocouple, RTD & Linear Input
4 (Rx1+)
5 (Rx1-)
 For Retransmission-1 output
6 (N/-)
7 (L/+)
Power Supply Input
8 (C1)
9 (NO1)
 For Relay-1 potential free Contacts (Use 230V -2A load)
 On-Off Control o/p.
