Radical-7 Signal Extraction Pulse CO-Oximeter Service Manual
15-1

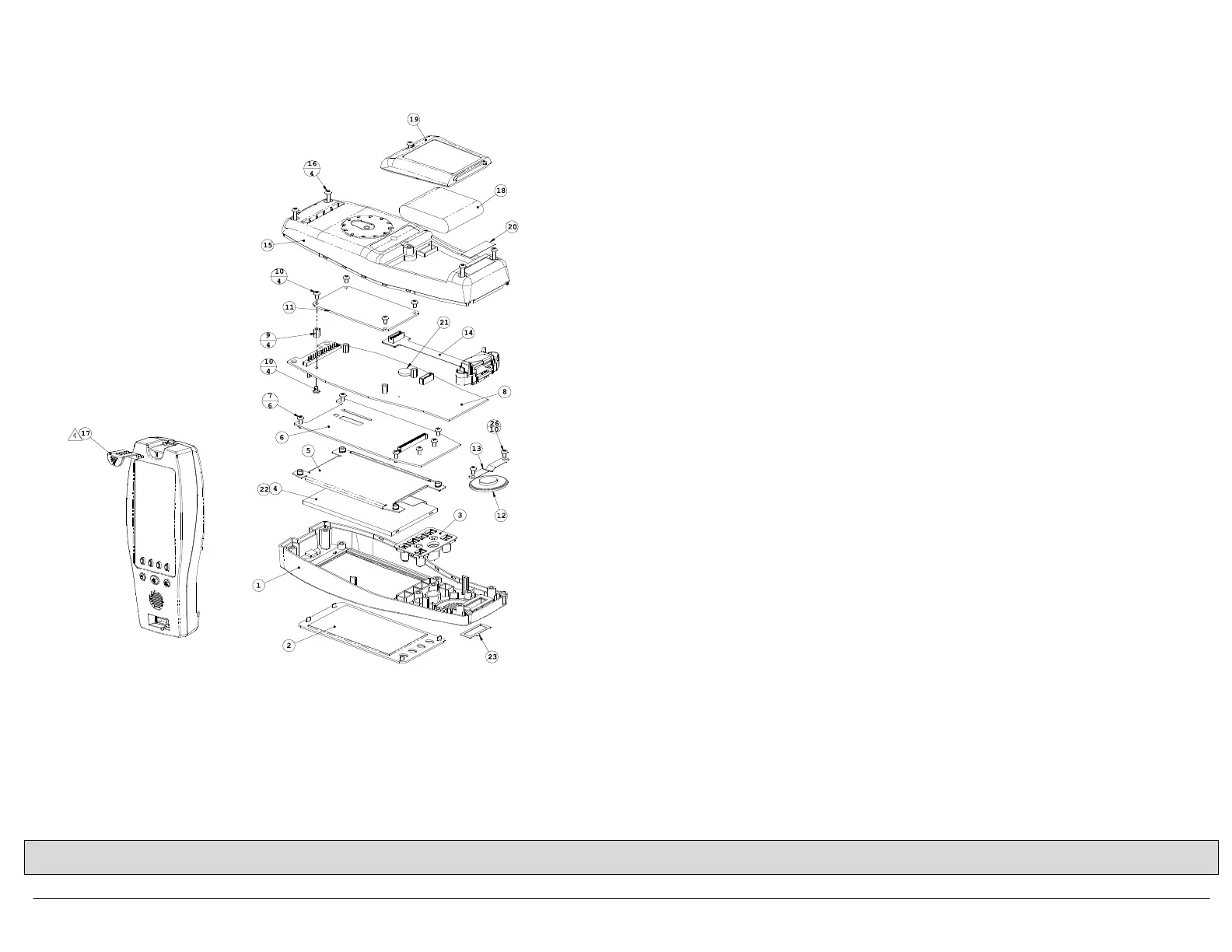

15 Radical-7 Color Parts List
1. Shell, Front, Radical-7 Color 10. Screw, #4-40 x 3/16” Phillips, pan head machine, 18-8 SS 19. Door, Battery, Radical-7 Color
2. Lens, Radical-7 Color 11. MX-1, Standard 20. Label, Radical-7 Color, HH, SN, 4-UP, MX-1
3. Keypad, Radical-7 Color 12. Speaker, Radical, Reinforcement 21. Battery, Lithium, 12.5MM coin, 3v, 48mAH
4. LCD Module, 480 x 272, Color TFT 13. Spring, Speaker, Radical-7 Color 22. Tape, Polyimide, Acrylic Adhesive, 0.75” w, .0025” THK
5. Bracket, LCD, Radical-7 Color 14. Assembly, FIC, Radical-7 Color 23. Label, Radical-7 Color Screen, connector with notch
6. Radical-7c User Interface circuit board 15. Shell, Back, Radical-7 Color
7. Screw #4-40 x 3/8” Phillips, pan head machine, 18-8 SS 16. Screw, #4-40 x 3/4” Phillips, pan head machine, 18-8 SS
8. Radical-7 Color system circuit board 17. Latch, Radical-7 Color
9. Standoff, Hex 3/16”, #4-40 IT, 5/16” L ACI, RoHS Compliant 18. Battery Pack, NiMH, AA, 4.8V, 2000mAH
WARNING: Disassembly or repair by authorized Service Personnel only.
