Masimo SET Radical-7 - RDS2 Docking Station Parts List

Radical-7 Signal Extraction Pulse CO-Oximeter Service Manual
18-1

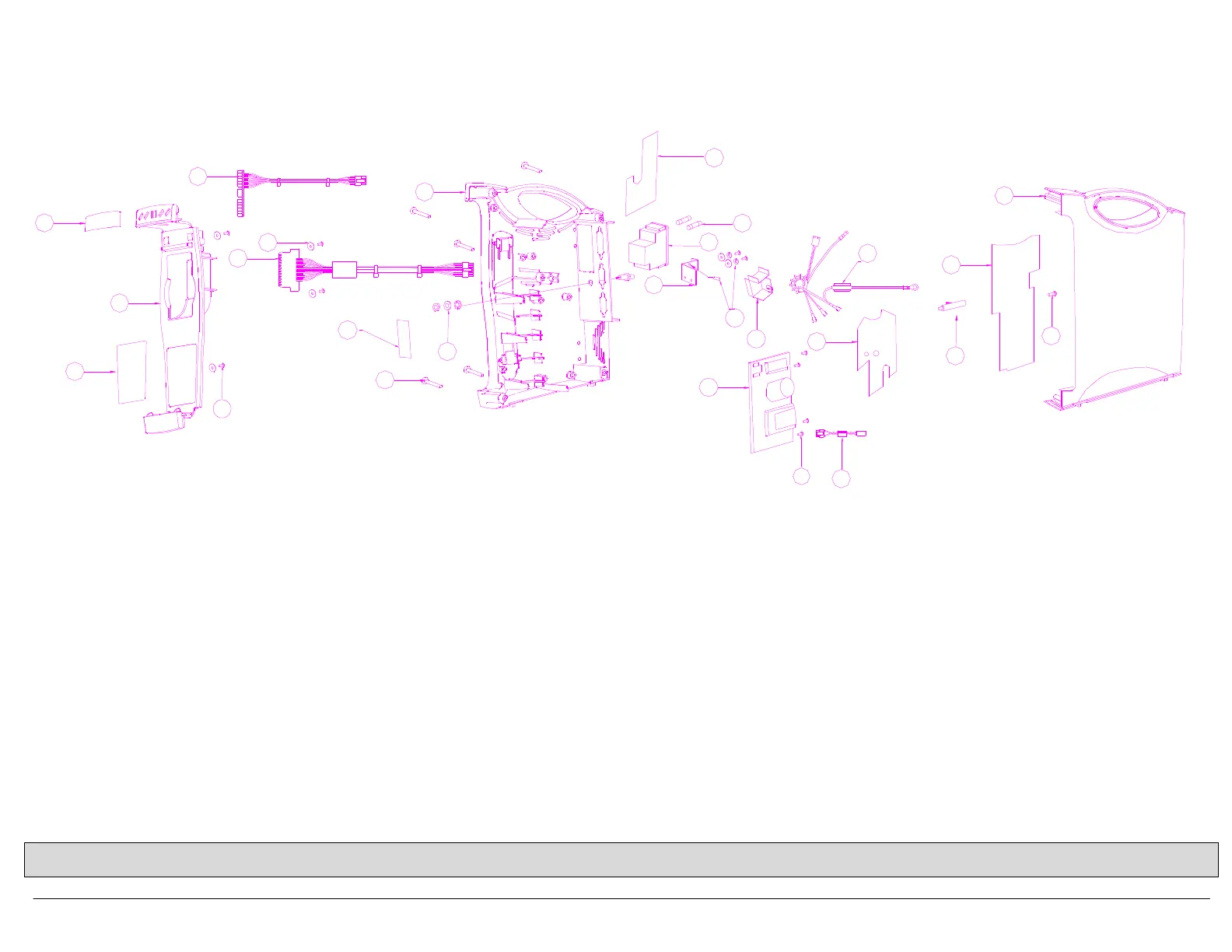

18 RDS2 Parts List
1. Front Shell
10. AC Filter Module Fuses (2 pcs)
19. Top Shell
2. LED Status Label
11. AC Power Entry Module
20. RDS2 System Board
3. Radical Logo Label
12. AC Filter Module Bracket
21. Standoff
4. LED Status Cable
13. AC Power Entry Module Bracket Hardware (5 pcs [1x2x2 ] )
22. Docking Station System Board Mounting Screw
5. Interface Cable
14. AC Cable Insulator
23. No Implied License Label
6. Interface Cable Hardware (4 pcs [2x2] )
15. Power Supply
24. Power Supply Hardware (4 pcs)
7. Bottom Shell
16. 20179 AC Power Cable or 20320 (required with 20293 Power Supply)
25. Certification Label – (Port P1, P2 and P3 closed)
8. Equipotential Hardware (4 different pcs )
17. Insulator
26. Front Shell Mounting Hardware (4 pcs [2x2] )
9. Plastics Hardware (5 pcs)
18. DC Power Cable
WARNING: Disassembly or repair by authorized Service Personnel only.
4
1
2
3
5
6
7
8
9
10
11
12
16
17
18
19
20
21
22
23
24
25
13
14
15
26
