Masimo SET Radical-7 - Docking Station Parts List (RDS-1, RDS-1 B, RDS-3)

Radical-7 Signal Extraction Pulse CO-Oximeter Service Manual
17-1

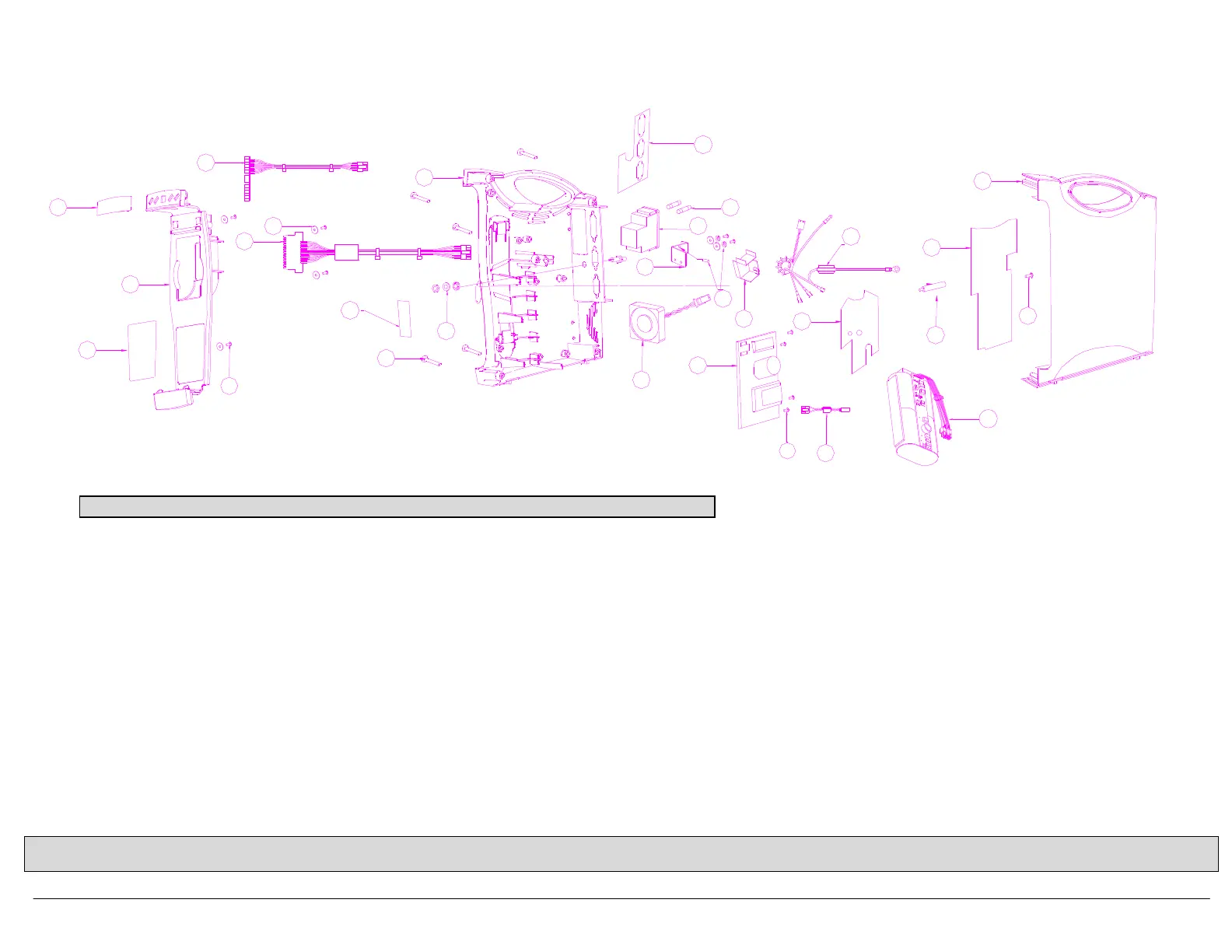

17 Docking Station Parts List (RDS-1, RDS-1B and RDS-3)
Note: Only RDS-1B configured Docking Stations will contain the 20284 Optional Battery Pack.
1. Front Shell
10. AC Filter Module Fuses (2 pcs)
19. DC Power Cable
2. LED Status Label 11. AC Power Entry Module
20. Top Shell
3. Radical Logo Label 12. AC Filter Module Bracket
21. Docking Station System Board (2 types)
- RDS-1 and RDS-1B (All ports available – P1, P2 and P3)
- RDS-3 (Only ports P1 and P2 available)
4. LED Status Cable 13. Fan
22. Standoff
5. Interface Cable 14. AC Power Entry Module Bracket Hardware (5 pcs [1x2x2 ] )
23. Docking Station System Board Mounting Screw
6. Interface Cable Hardware (4 pcs [2x2] ) 15. AC Cable Insulator
24. No Implied License Label
7. Bottom Shell 16. Power Supply
25. Certification Label – (Note: Port P3 Closed
- RDS-1 and RDS-1B (All ports open)
- RDS-3 (P3 closed)
8. Equi-potential Hardware (4 different pcs )
17. 20179 AC Power Cable or 20320 (required with 20293 Power Supply)
26. Power Supply Hardware (4 pcs)
9. Plastics Hardware (5 pcs) 18. Insulator
27. Front Shell Mounting Hardware (4 pcs [2x2] )
28. Docking Station Battery Pack (Optional)
WARNING: Disassembly or repair by authorized Service Personnel only.
4
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
