8-13

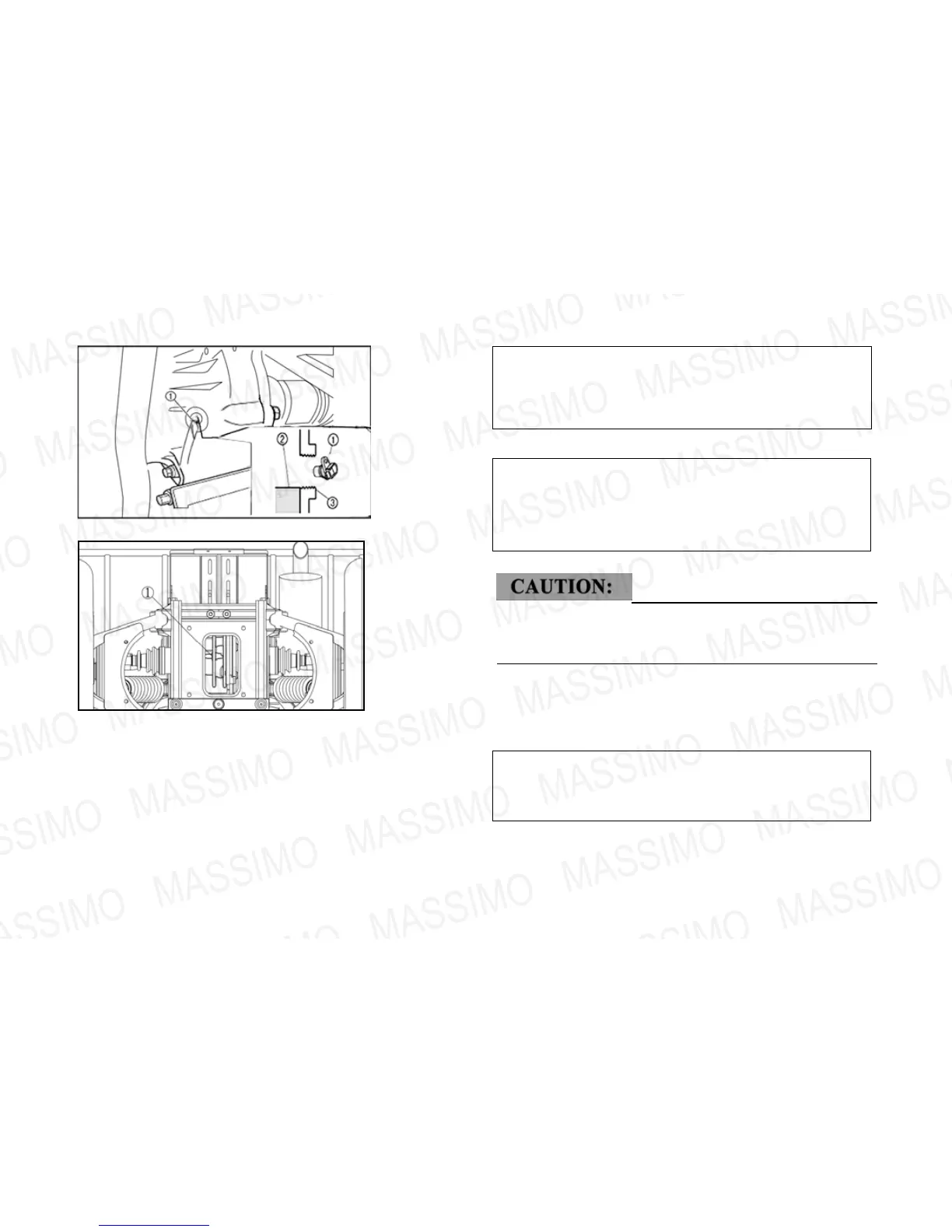

1. Final gear oil filler bolt

1. Final gear oil drain bolt

4. Install the drain bolt and tighten it to the

specified torque.

5. Fill the final gear case with the specified

amount of the recommended oil.

Tightening torque:

Final gear oil drain bolt:

23 Nm(2.3m·kgf, 17ft·lbf)

Recommended oil:

SAE 90 API GL-5 gear oil

Oil quantity:

0.25 L (0.22 lmp qt, 0.26 US qt)

Be sure no foreign material enters the final

gear case.

6. Install the filler bolt and tighten it to the

specified torque.

Tightening torque:

Final gear oil filler bolt:

23 Nm(2.3m·kgf, 17ft·lbf)
