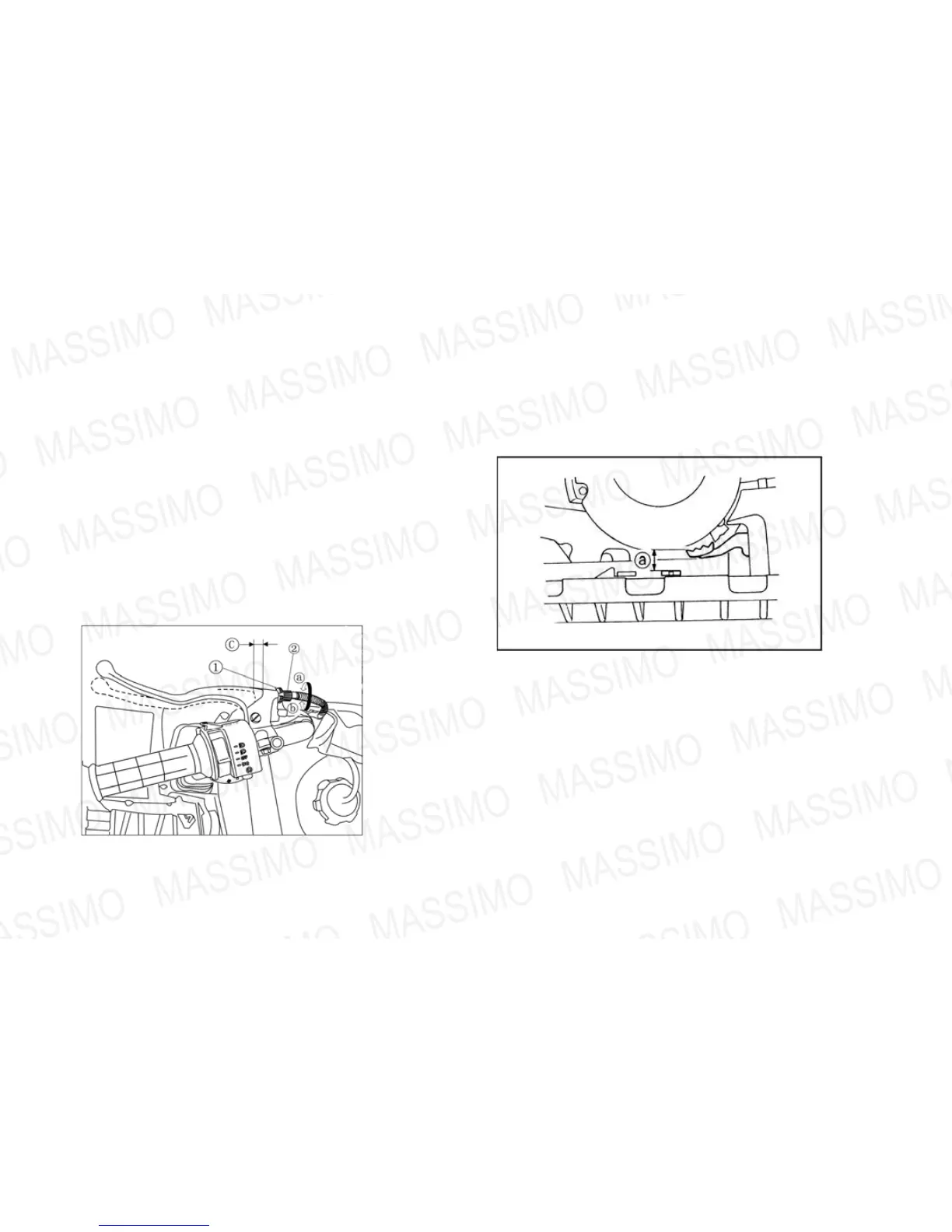

Adjusting the parking brake lever

The free play of the parking braking lever

should be between 0.5-1.5mm.

● Loosen the locknut.

● Turn the adjusting bolt in direction A to

increase free play, and in direction B to

decrease free play.

● Tighten the locknut.

If correct free play cannot be obtained, ask

a dealer to make that adjustment.

1. Locknut 2. Adjusting bolt c. Brake lever free play

Adjusting the brake pedal

The top of the brake pedal should be

positioned 86 mm above the top of the

footrest. If not, ask a dealer to adjust it.

a． Distance between brake pedal and footrest

Adjusting the rear brake light switch

The rear brake light switch, which is

activated by the brake pedal and rear brake

lever, is properly adjusted when the brake

light comes on just before braking takes

effect. If necessary, adjust the brake light

switch as follows.

8-31
