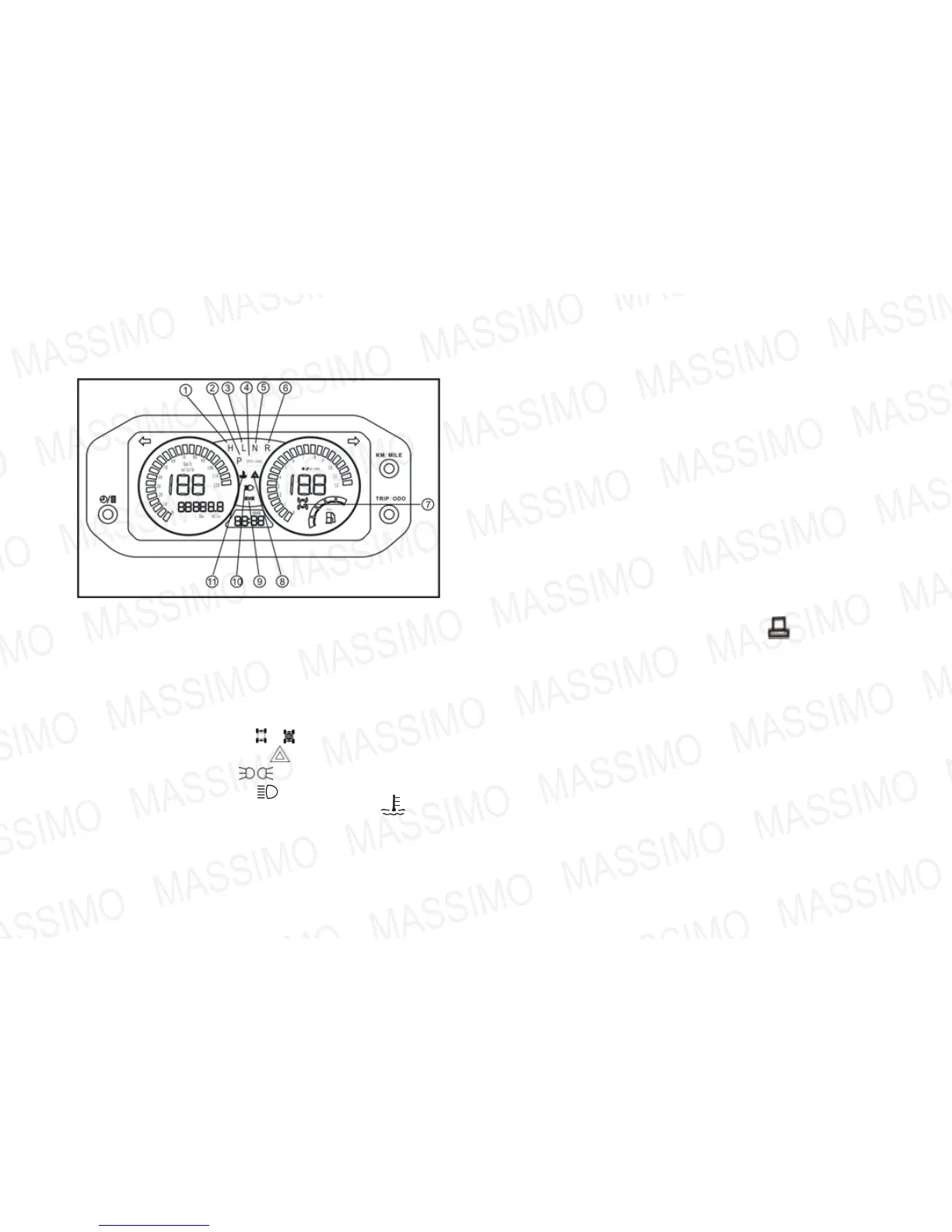

Indicator and Warning Lights

1. 1. High-scope indicator “H”

2. 2. Parking system indicator “P”

3. 3. Low scope indicator “L”

4. 4. Differential gear lock indicator

5. “DIFF-LOCK”

6. 5. neutral indicator “N”

7. 6. Reverse indicator “R”

8. 7. 4-wheel drive control“ ”/ “ ”

9. 8. Emergency indicator “ ”

10. 9 Position indicator“ ”

11. 10. Far light indicator “ ”

12. 11. Coolant temperature caution indicator “ ”

Low-scope indicator “L”

This indicator light comes on when the drive

select lever is in the “L” position.

High-scope indicator “H”

This indicator light comes on when the drive

select lever is in the “H” position.

Differential gear lock indicator

“

DIFF-LOCK

”

This indicator flashes when the differential

gear lock switch is set to the “

” position,

which means the differential comp in the

working status. While the switch is set to other

positions, this indicator would be lighted up,

which means the differential comp gets locked

and could not work.

When riding an ATV on a muddy road, make

sure the indicator is lighted up.

When riding on a flat road with a

4-2
