8-15

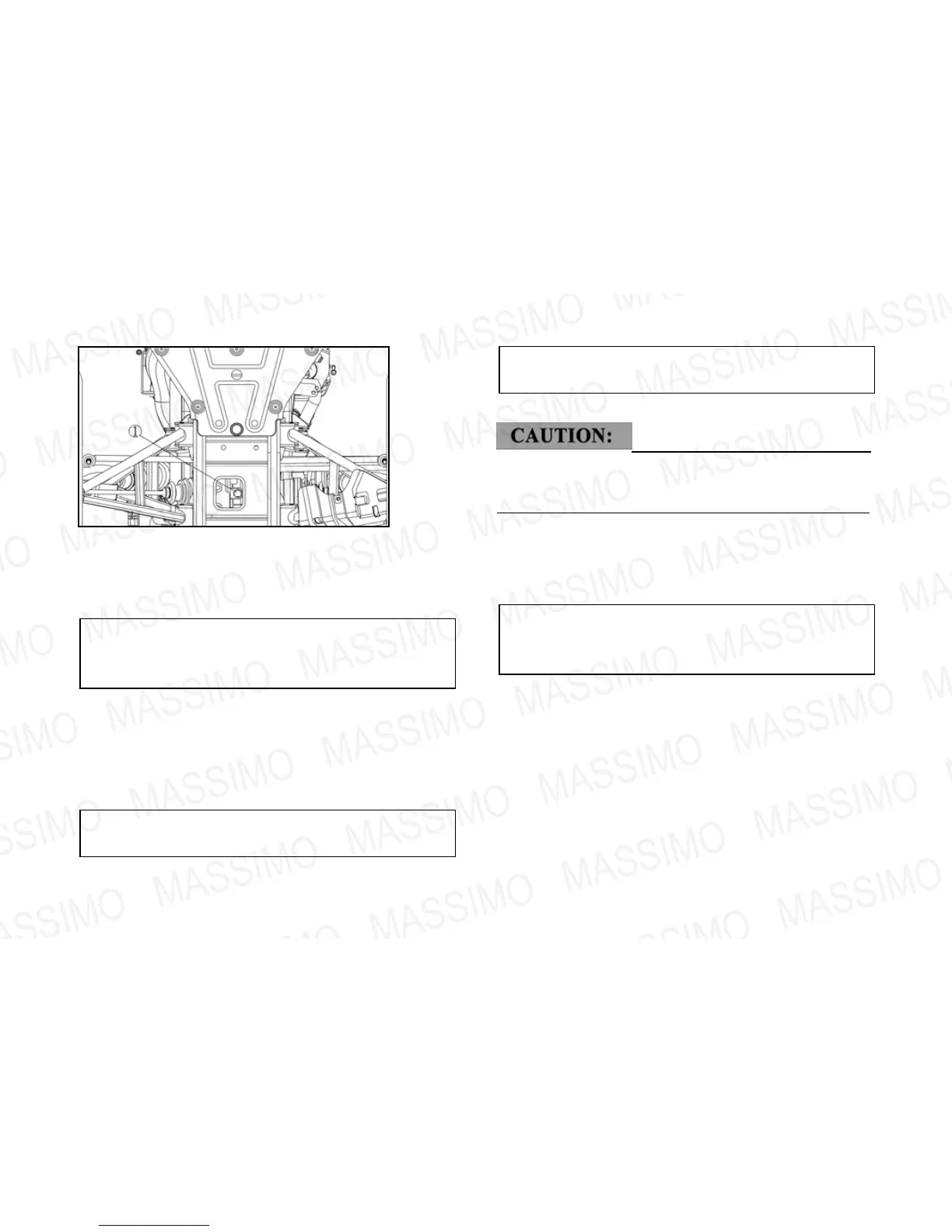

1. Differential gear oil drain bolt

4. Install the differential gear oil drain bolt

and tighten it to the specified torque.

Tightening torque:

Differential gear oil drain bolt:

10 Nm (1.0m·kgf, 7.39 ft·lbf)

5. Fill the differential gear case with the

recommended oil.

Recommended oil:

SAE 90 API GL-5 gear oil

Oil quantity:

0.28 L (0.25 lmp qt, 0.29 US qt)

Be sure no foreign material enters the

differential gear case.

Install the differential gear oil filler bolt, and

then tighten it to the specified torque.

Tightening torque:

Differential gear oil filler bolt:

23 Nm (2.3m·kgf, 17 ft·lbf)

6. Check for oil leakage. If oil leakage is

found, check for the cause.

Cooling system

1. Place the ATV on a level surface.

2. Check the coolant level in the coolant

reservoir when the engine is cold, as the
