b. The maximum measurement range of Active Power is
600kW. For exceeding the maximum value, the “OL”
symbol will be shown in the display. If test voltage
exceeds 600V or the test current exceeds 1000A, the
“OL” symbol will be shown in the display too. And the bar
graph is full.(Figure 9) The minimum input voltage is 20V
and the minimum input current is 5A, if it less than the
minimum input voltage and minimum input current, the
Active Power value is “0.00kW”.
c. Press
MAX
button, the maximum value of Active
Power is shown in the secondary display.
d. Press
MIN
button, the minimum value of Active
Power is shown in the secondary display.。
e. The bar graph “0-20-40-60-80-100” is shown.

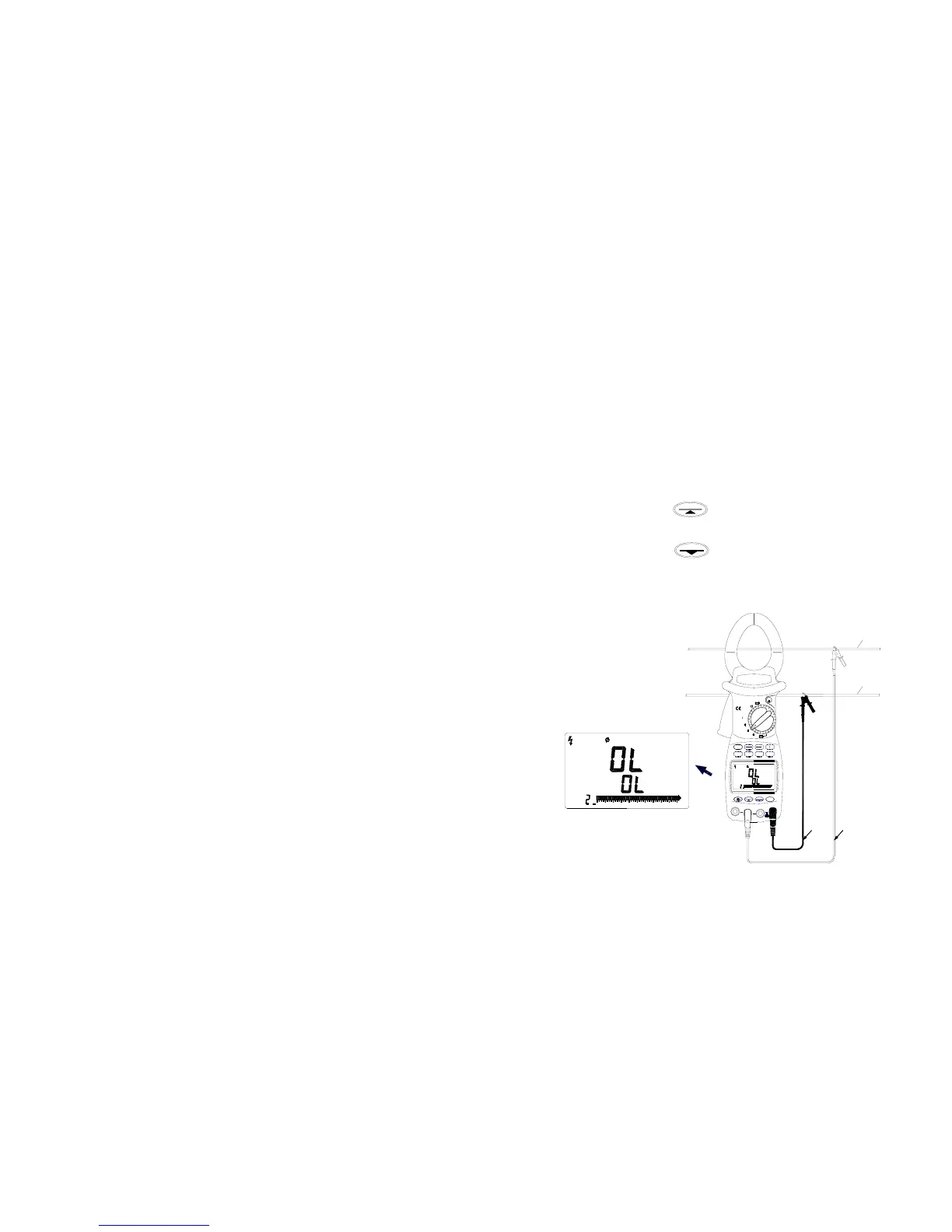

（Figure 9.Current Exceeds 1000A Or Voltage Exceeds 600V）
