2. The display shows “MR” and “HOLD” symbol, location number
and date in current memory location.
3. Press
MAX
button and
MIN
button to cycle through
memory location.
RS232C Data Interface
Connect RS232C interface cable to the clamp meter as shown in
Figure 18, then rotate the interface cable deasil to lock it in the meter.
Connect the other plug of the interface cable to a serial port of a
computer. Then the meter can transmit measured data to computer
by the infrared photoelectricity RS232C interface in real-time mode. If
you want to take out the interface cable from the meter, first you must
rotate the cable widdershins to unlock it, then you can pull out it .
You will install the special data record software into the computer
according to README.TEXT file in SETUP disk. When the meter is
in measurement mode, press
RS232
button, you can record and
print the measured data of the meter in real time mode in the
WINDOWS. The software can record, plot, print data and curve.

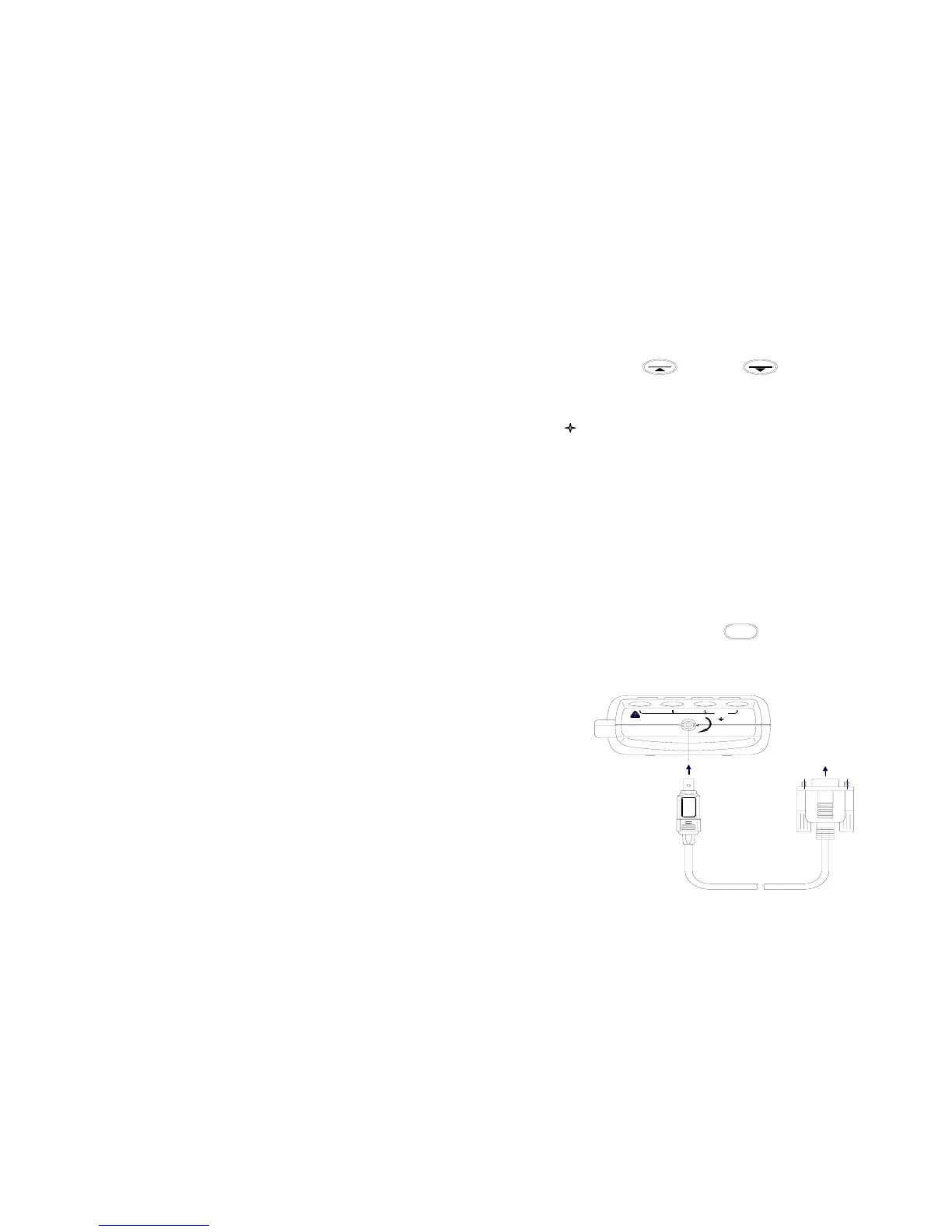

( Figure 18. RS232C Interface Cable Connection )
- 25 -
R
S
2
3
2
-
C
I
N
T
E
R
F
A
C
E
O
P
T
IC
A
L
COMPUTER
OPTICAL INTERFACE
3
~
RS232
MA
600V
X
