EasyView 5 - User’s and Installation Manual

4 Installation instructions

The EasyView 5 offers three mounting options:

 Panel mounting onto the wall box - see section 4.1

 Flush mounting in an 82 x 113 mm hole - see separate instruction sheet with saw template

 Clamp mounting in a hole > 82 x 113 mm - see section 4.2

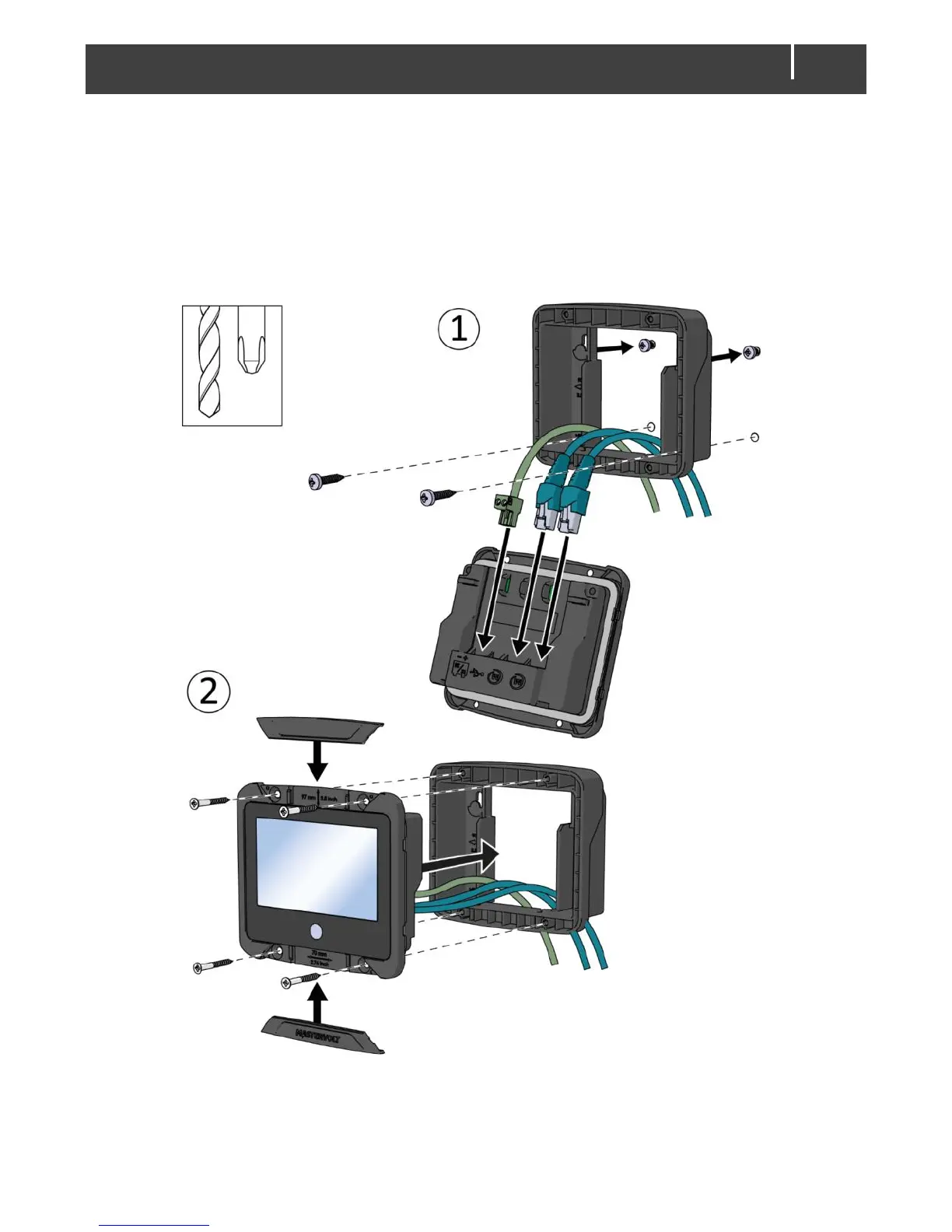

4.1 Panel mounting

PH2

3mm
