EasyView 5 - User’s and Installation Manual
13
4.3 Aux power supply
The EasyView 5 can be powered from the MasterBus network. There must be MasterBus powering
devices available to provide sufficient power to the network. If there is no MasterBus powering
device or the available power is not sufficient, the EasyView 5 must be connected to a 12/24V
battery via the supplied connector (see section 1.4).

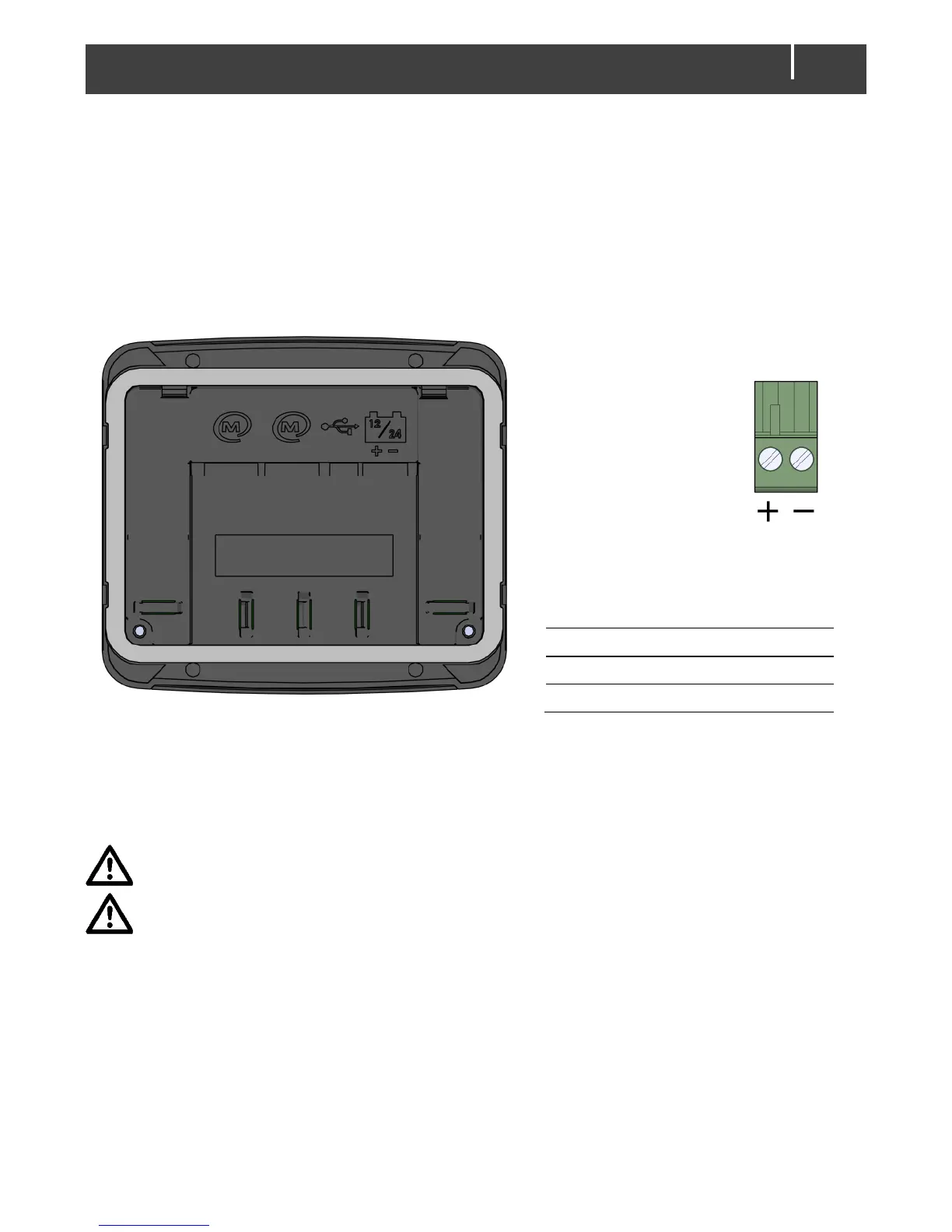

4.3.1 Aux power connector
Connect the positive wire to the left
terminal, the negative wire to the right
terminal of the connector.
Use a 3mm flat blade
screw driver to tighten
the screw of the
connector.
4.3.2 Wire size
Use appropriate wire size to connect the
aux power supply to the battery.
Wire diameter Ø
Min.
1 mm (18AWG)
Max.
2.5 mm (13AWG)
4.3.3 Fuse
Insert a 1A fuse in the positive battery
line.
Insert a 1A fuse in the positive battery line.
Be sure to connect the battery to the EasyView 5 correctly! It is not protected against
reverse polarity!
