Mastervolt EasyView 5

EasyView 5 - User’s and Installation Manual
31

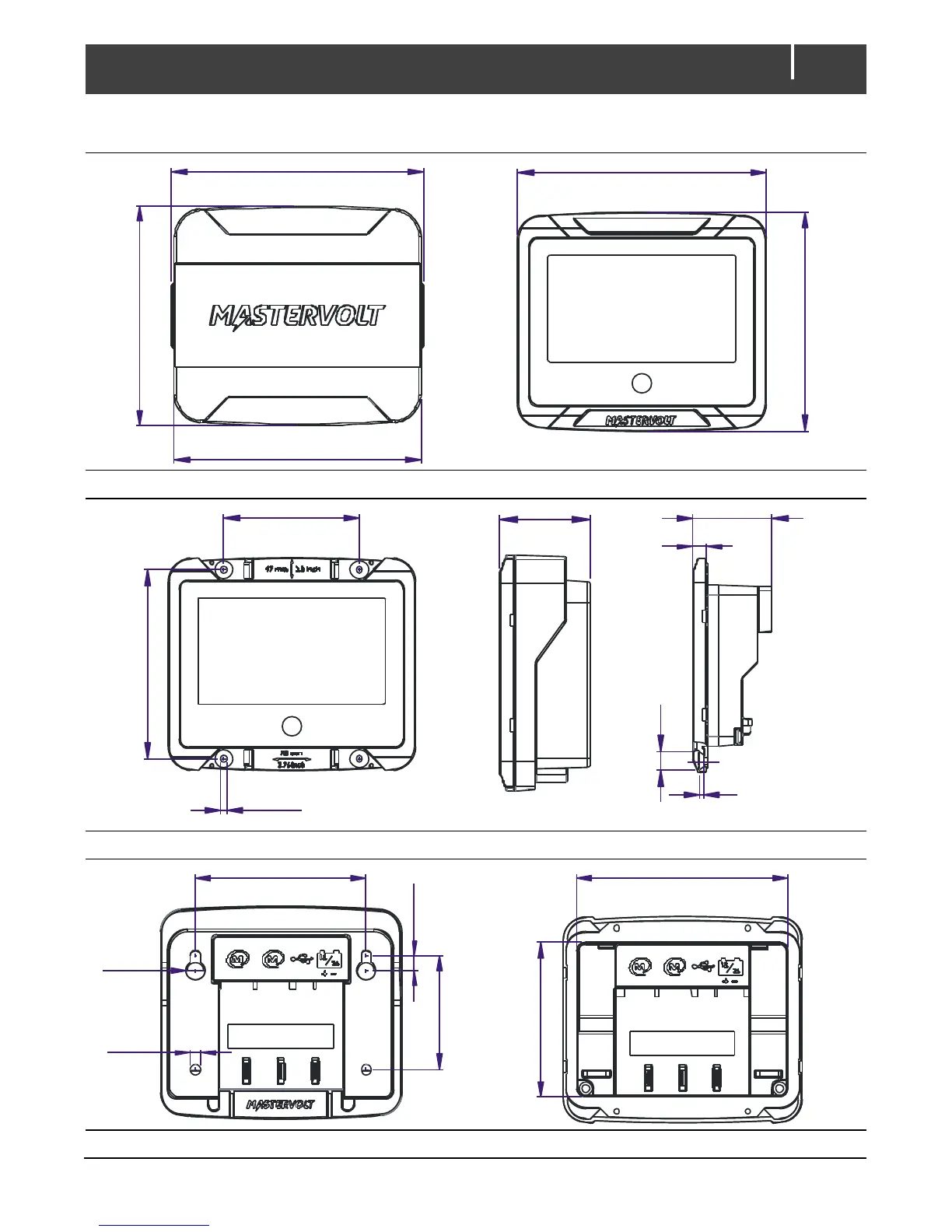

10 Dimensions
135
117
132
127
113
Front cover
Front
70
97
Ø 3(4x)
43
Case partly removed to
show mounting hole details.
40
7
9,5
2
Front, mounting holes
Side, with wall box
Side, without wall box
90
8
Ø
6
Ø 10
60
82
113
Back, with wall box
Back, without wall box
