OVERVIEW
1. Power switch (Section 3.5)
2. Solar indicator LED (Section 3.6)
3. Charge indicator LED (Section 3.6)
4. Fault indicator LED (Section 3.6)
5. LCD-display (Section 3.6)
6. PV input
7. Battery connection
8. Load output
9. Grounding terminal
10. Temperature sensor jack
11. Identification label (Section 2.7)

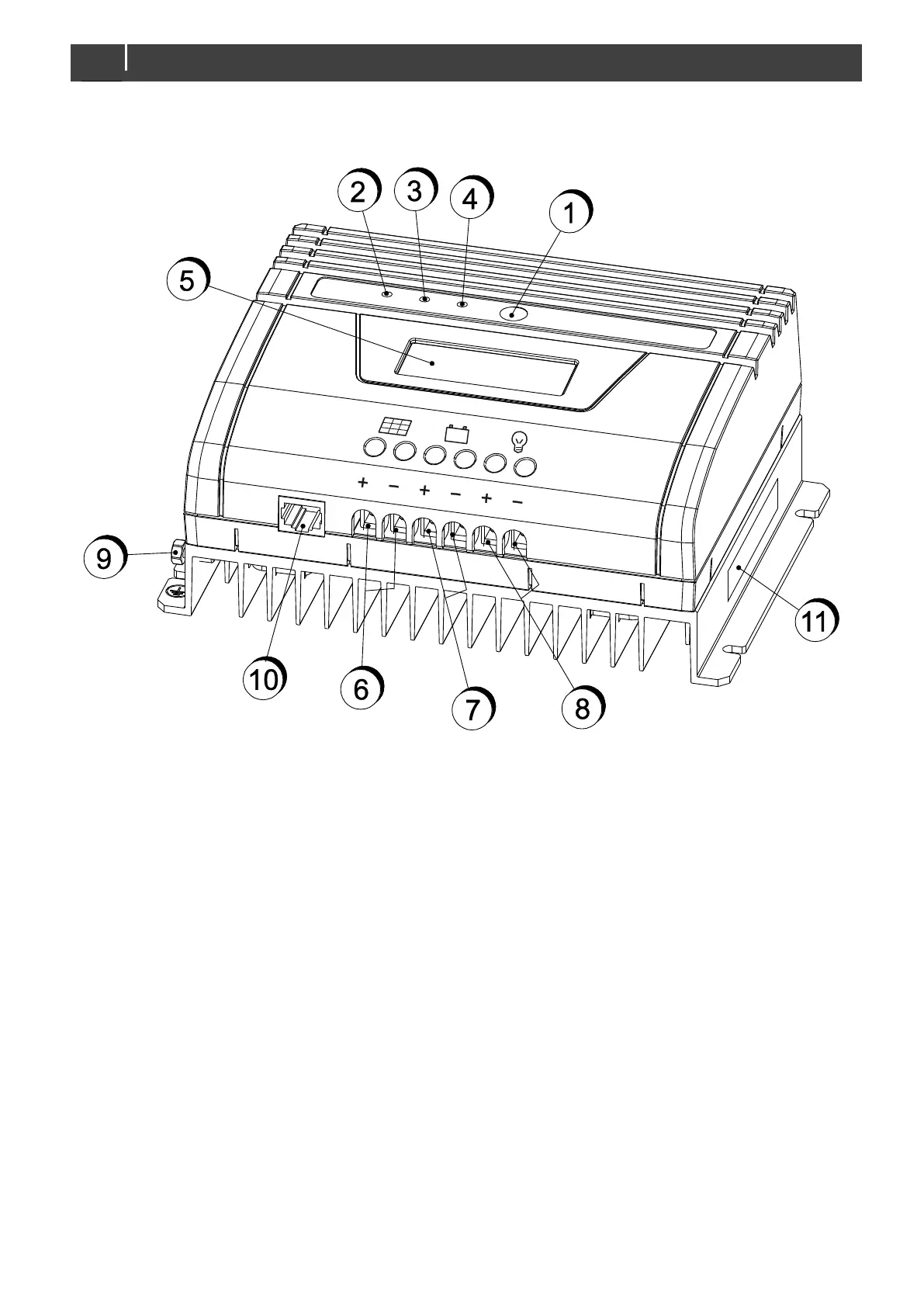

Figure 1: Overview
