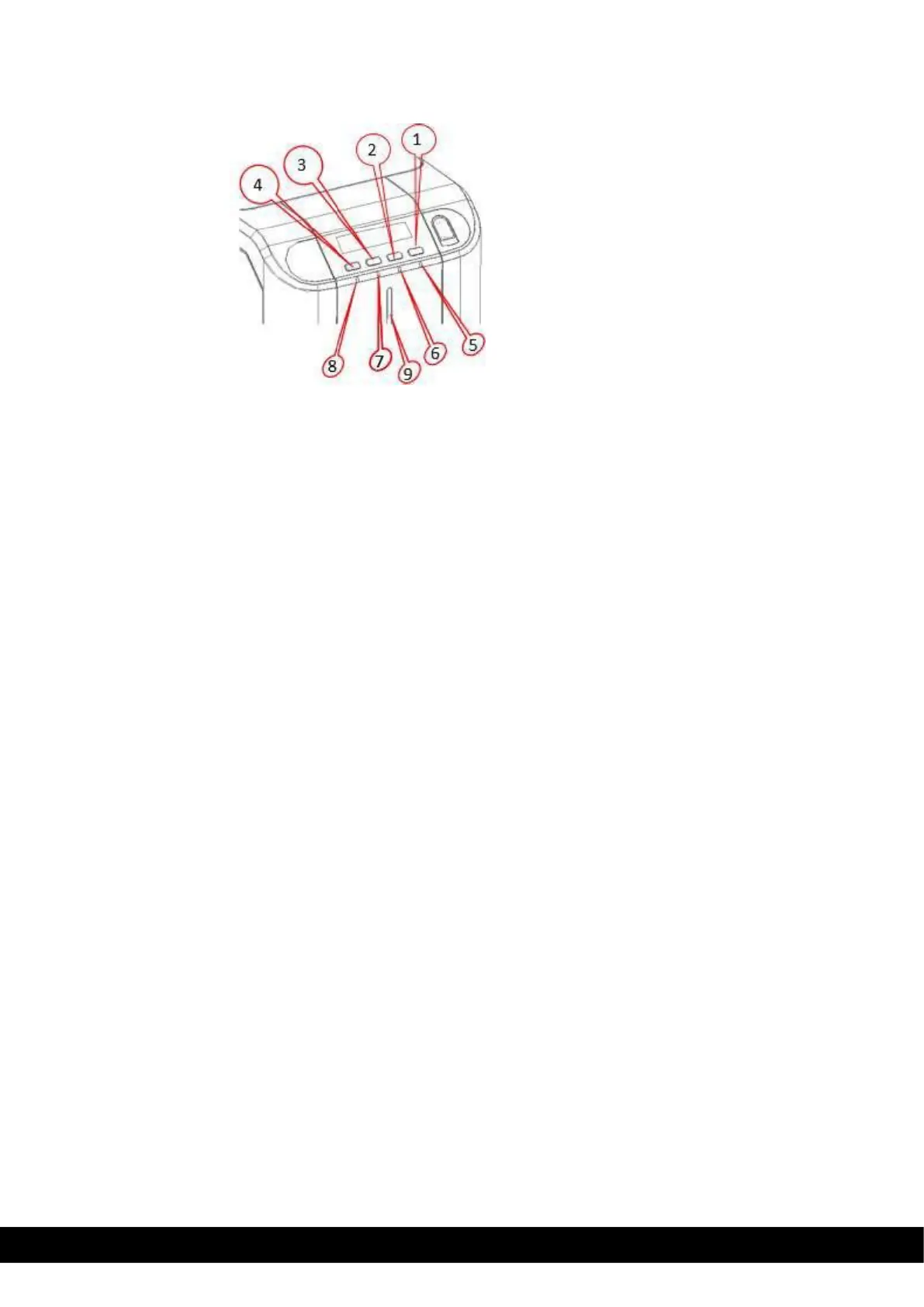

2.2.2 Operator Panel
,
The front operator panel consists of 4 soft touch buttons and 4 status LEDs along with an informative display
•
Button operation
o
Power button (Shown as 1)
▪
Short press to turn on the printer
▪
Long press to turn off the printer when it is ON
o
Selection button (Shown as 2)
▪
To select the menu option and transit to respective sub-menu
▪
Selecting option in sub-menu. Ex. Standard Cleaning, chip encoder setting
o
Menu/Scroll button (Shown as 3)
▪
Button will be used to enter in Menu
▪
Same button will be used to scroll to next menu item
▪
Same button will be used for incrementing the value while setting Sleep time
o
Wi-Fi button (Shown as 4)
▪
Press to tun on the Wi-Fi, if the Wi-Fi option is present in the system
▪
LCD will display the status
•
Status LED
o
Power LED (Shown as 5)
▪
White - indicates printer is ON
o
Status LED – Ready (Shown as 6)
▪
Amber – indicates ribbon is nearing end
▪
Amber blinking – indicates there is no card OR no ribbon
o
Status LED – Error (Shown as 7)
▪
Red – indicates there is an error, card jam, cover open etc in printer
▪
Red blinking – indicates printer requires servicing OR firmware upgrade
▪
Green – indicates printer is ready for printer
▪
Green blinking – indicates printer is receiving data or printing
o
Wi-Fi LED – (Shown as 8)
▪
Off – indicates Wi-Fi is not available in printer
▪
Blue blinking – indicates Wi-Fi is available in printer but not connected
▪
Blue – indicates printer is connected
o
Input hopper LED – (Shown as 9)
▪
Off – indicates there is no card available in printer
▪
Red blinking – indicates no. of cards in the hopper are running low.
▪
Red – indicates there are cards available in input hopper
