Matica MC320 - Printing Test Cards

MC320 USER GUIDE
I
5-18
Resin Area Extraction user interface for defining resin extraction,
** Note: If user defined resin area, then user always need to remove or re-adjust defined resin
area for fresh printing.
5.3 Printing Test Cards using Printer menu
Test Cards are used to check that the printer is operating correctly and to obtain some important printing
parameters.
Print a Test card using the LCD Display menu,
• In the Menu/Scroll button, Scroll to Advanced setting
• Press the Selection button to transit to respective sub-menu
• Scroll to Test Print only
• Press the Selection button to print the Test card
Refer to the Navigation as in chart,

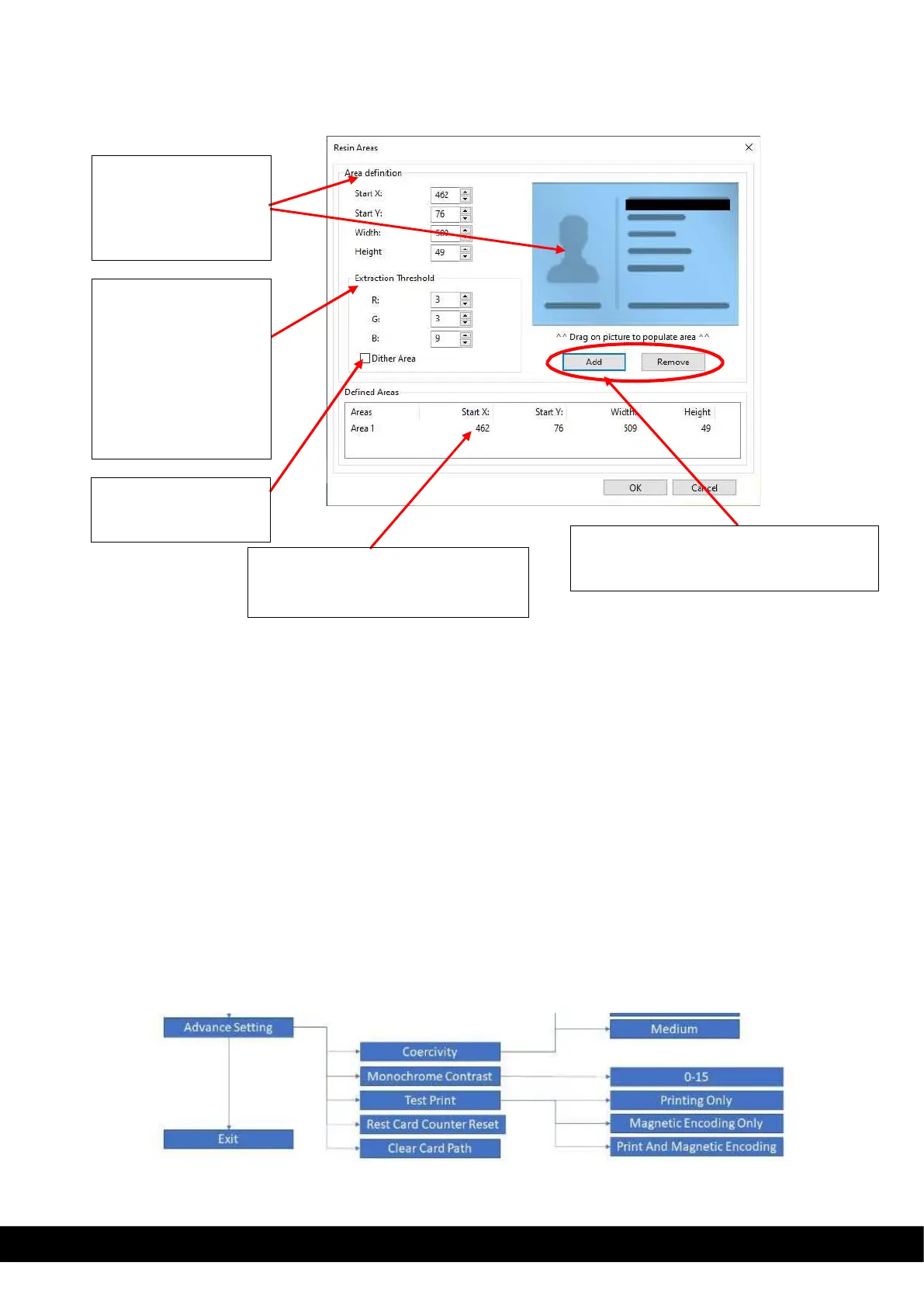

Shows the defined area for resin
extraction. Once resin area defined
click Ok to proceed with print.
Once area and threshold defined the
user can add using add tab. Also remove
the added area by using remove tab.
User can select dither
area option based on
the requirement.
User can define
extraction threshold
for color to be printed
in resin by adding
RGB value in user
interface.
** User can get RGB
value of feature using
paint app.
User can define resin
area location & area
by dragging the curser
over image on left
side of user interface.
