MC320 USER GUIDE
I
3-2
4
)

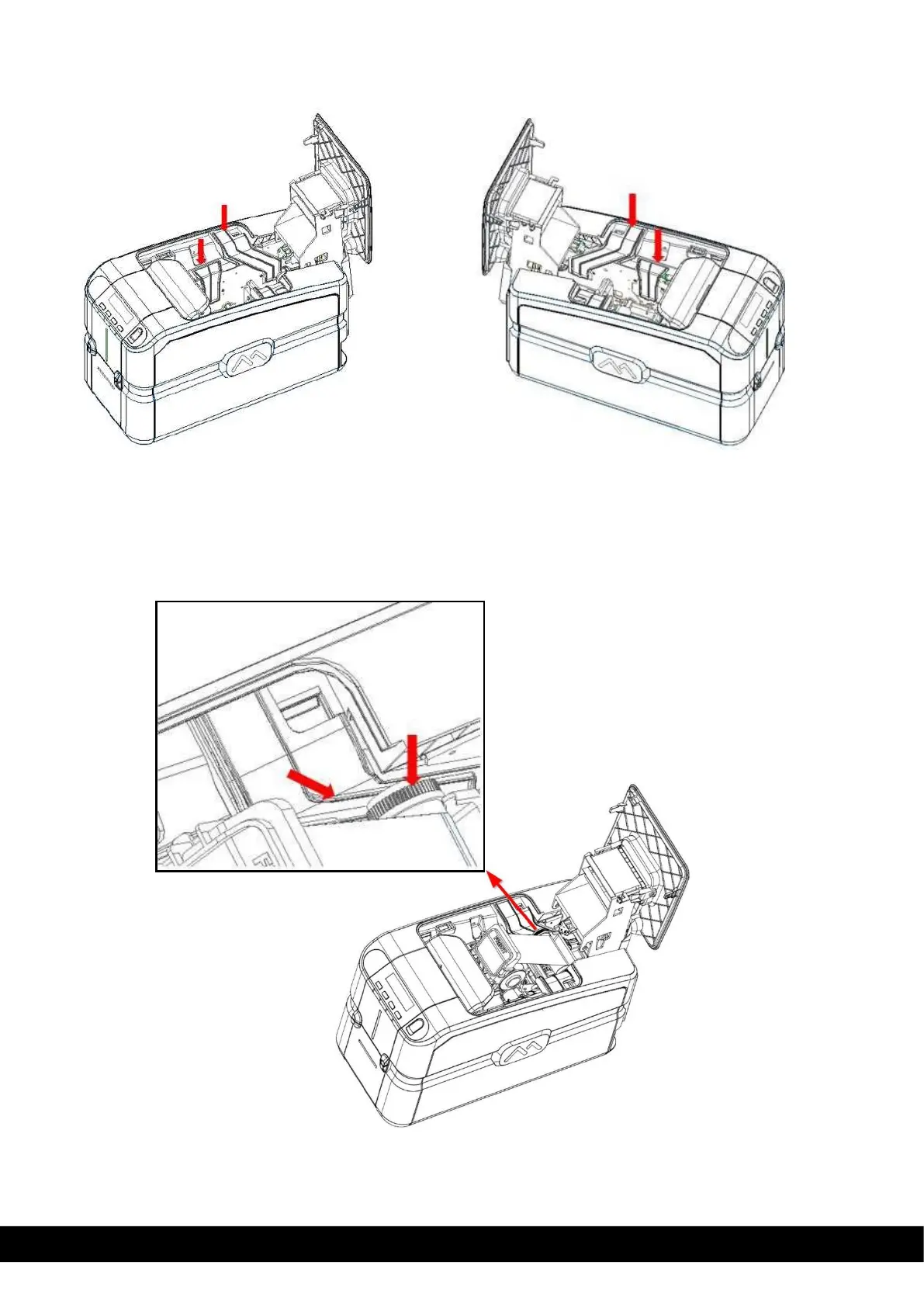

Ribbon carrier should be positioned inside the Right & Left Guide cores as illustrated below
Left Guide Core for Ribbon carrier Right Guide Core for Ribbon carrier
5) Slide the Ribbon carrier back side (Trailer core) inside the backend Guide cores as per below instructions.
