9.2.4 How to allocate image memory
Generally (and used by default), the (image) memory management of the used operating system is sufficient to
work with. Sometimes, especially when using large images, it is necessary to define permanent image memory
manually.
For this,
1. click with the right mouse button on the device you want to define permanent image memory:

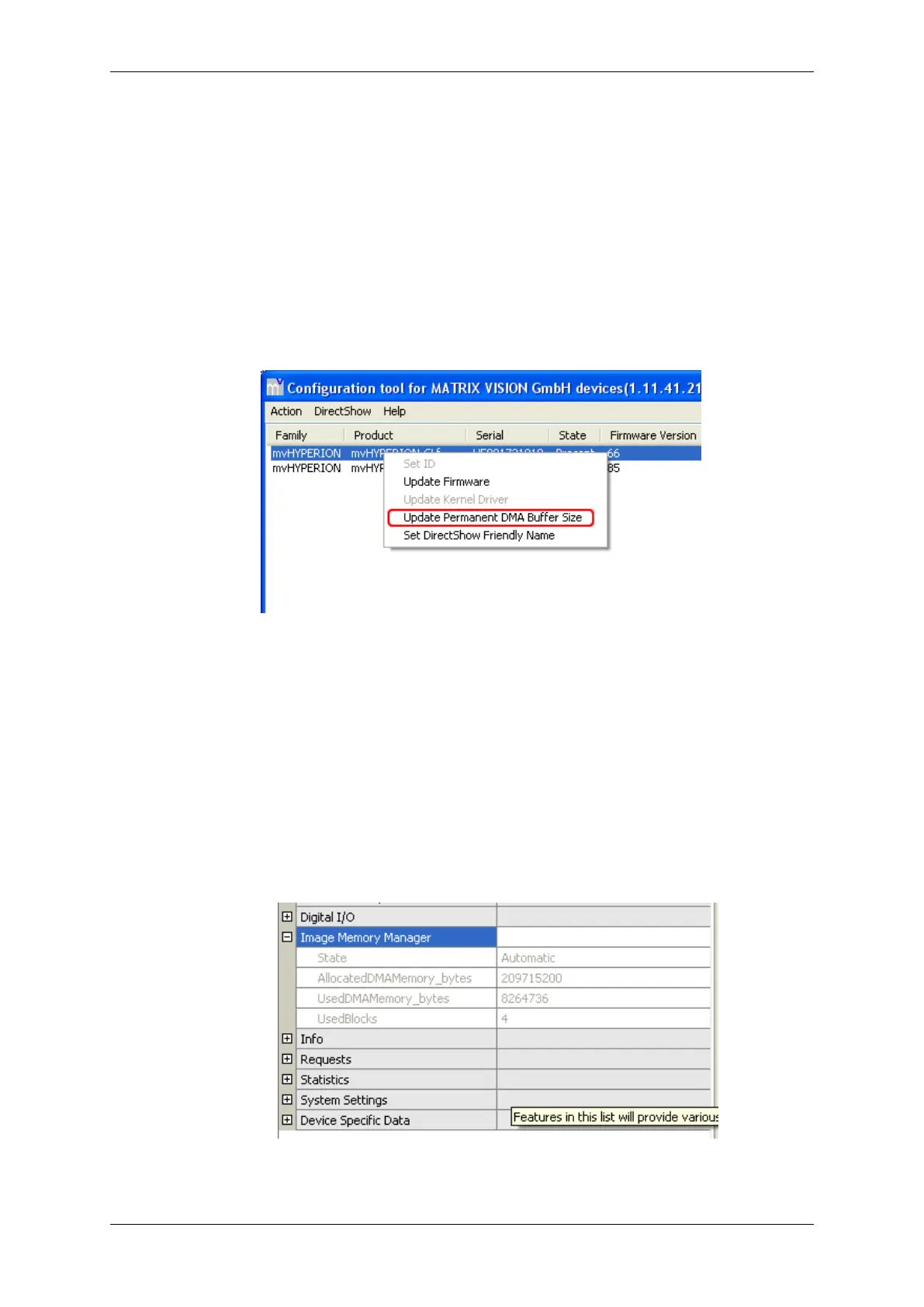

Figure 61:mvDeviceConfigure - Image memory
A dialog will be opened.
2. Entered your preferred image memory size.
3. Afterwards, reboot you system.
4. Now, open wxPropView (p. 48). In wxPropView you will have a new Property named "Image Memory
Manager".
5. Here you have to possible modes:
(a) With Automatic, the driver makes the memory management.
Figure 62:wxPropView - Image Memory Manager
(b) With UsePool, you can define for example the block sizes of the memory.
