8 Technical data
8.1 mvHYPERION-CLx
8.1.1 Block diagrams

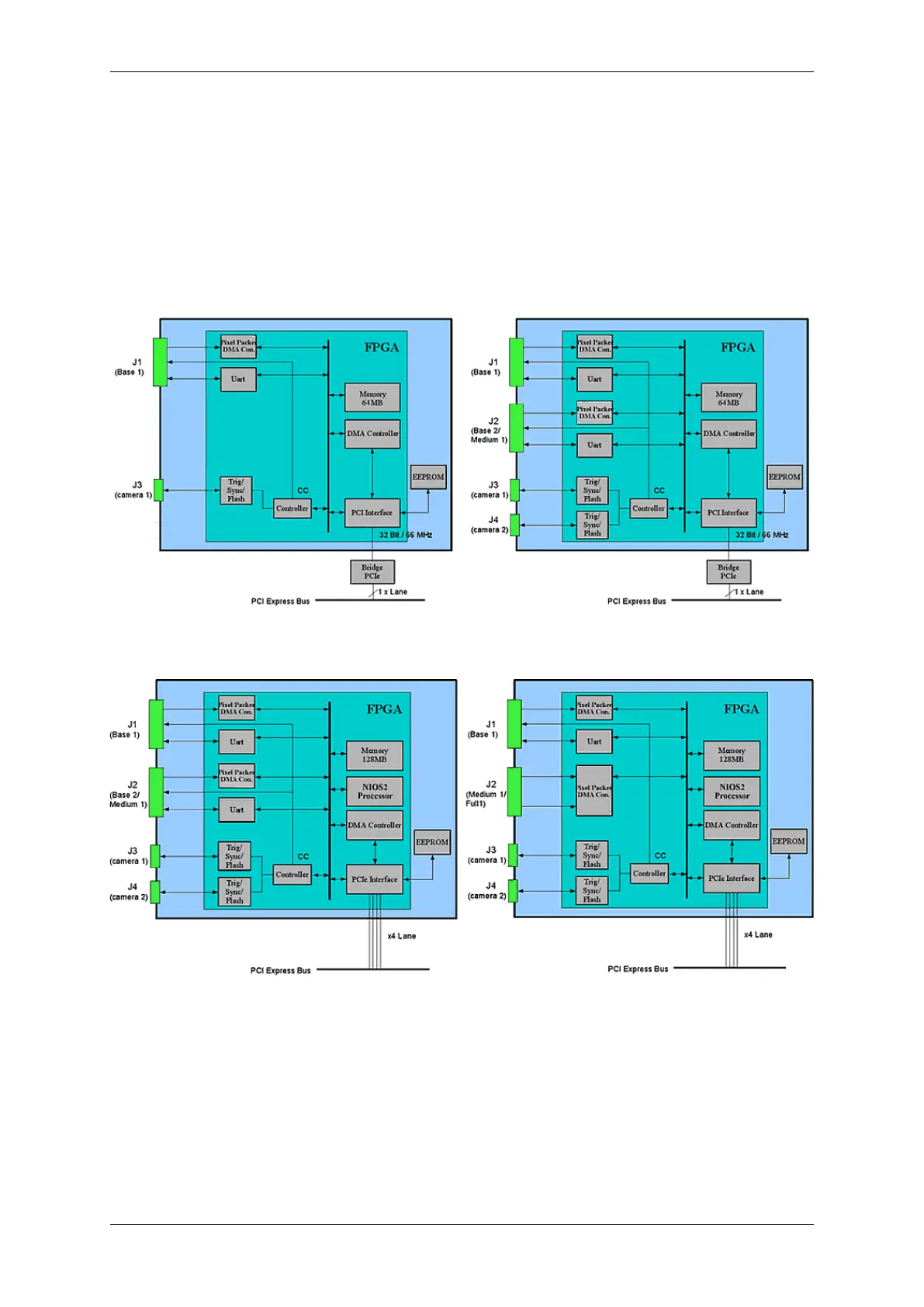

The following block diagrams show schematically how the different mvHYPERION-CLx are designed.
Figure 1: mvHYPERION-CLb block diagram | mvHYPERION-CLe block diagram
Figure 2: mvHYPERION-CLm block diagram | mvHYPERION-CLf block diagram
8.1.2 Connectors
The mvHYPERION supports the serial communication over CameraLink™ cable as described in the Camera←-
Link™ specification. The driver offers a serial interface without the need of a host PC's COM port. During the
boot sequence of the operating system the serial interface is initialized. Normally, manufacturers of CameraLink™
cameras provide software to parameterize the camera. If this software abides by the specification, it will access our
serial interface driver automatically.
