6 Introduction

The mvHYPERION-Series are frame grabbers for the bus system PCI Express®. The mvHYPERION frame grabber

series for PCI Express® offers image processing with fast cameras using maximum capture bandwidth up to 1 G←-

B/s. Depending on the model type, the frame grabbers are suitable for high-end machine vision applications with

CameraLink cameras as well as broadcasting or surveillance solutions.

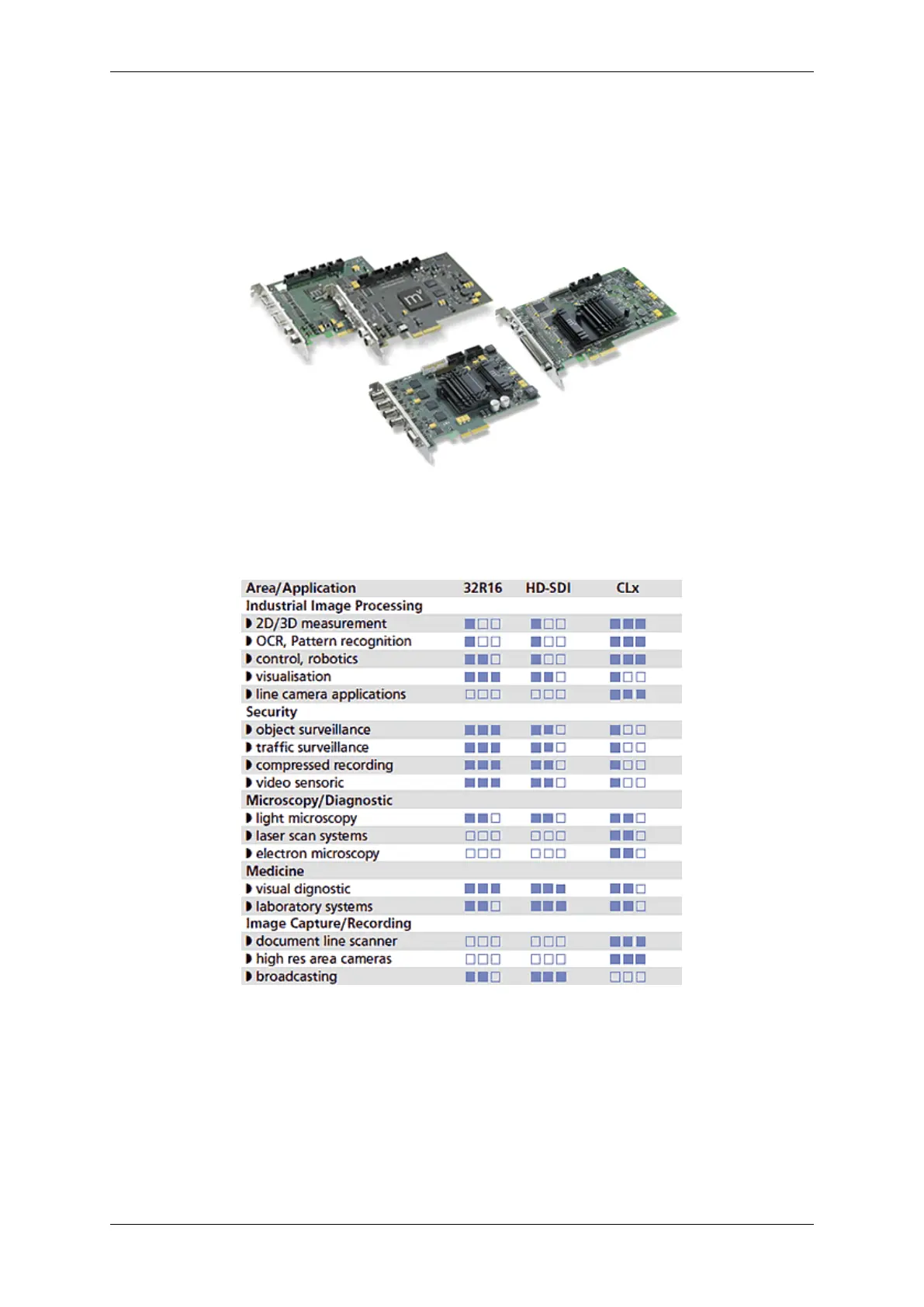

Figure 1: mvHYPERION series

There are digital inputs available for external synchronization and digital outputs for e.g. controlling a ﬂash.

The mvHYPERION series is suitable for following application areas:

Figure 2: Application areas

6.1 What's inside and accessories

Due to the varying ﬁelds of application the mvHYPERION series is shipped without accessories. The package

contents:

• mvHYPERION frame grabber

Accessories for the mvHYPERION-CLx frame grabbers:
