17.5 Working with a Basler Sprint line scan color camera 133

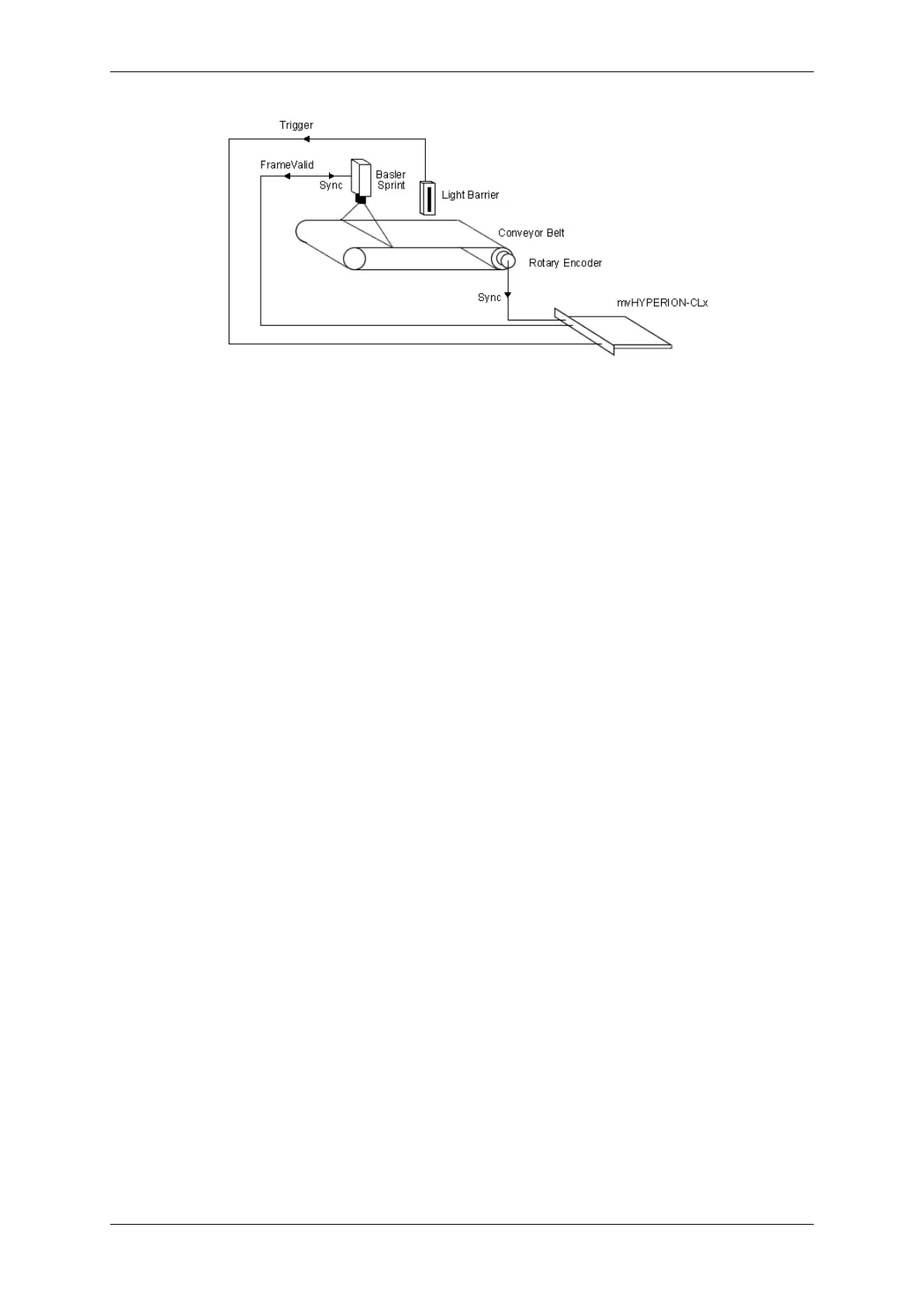

Figure 6: Conveyor belt with rotary decoder
The camera line synchronization in this sample is the trigger signal of a rotary encoder. Afterwards, two SinglePulse
signals are sent via digital out CC1:
