8.1 mvHYPERION-CLx 35

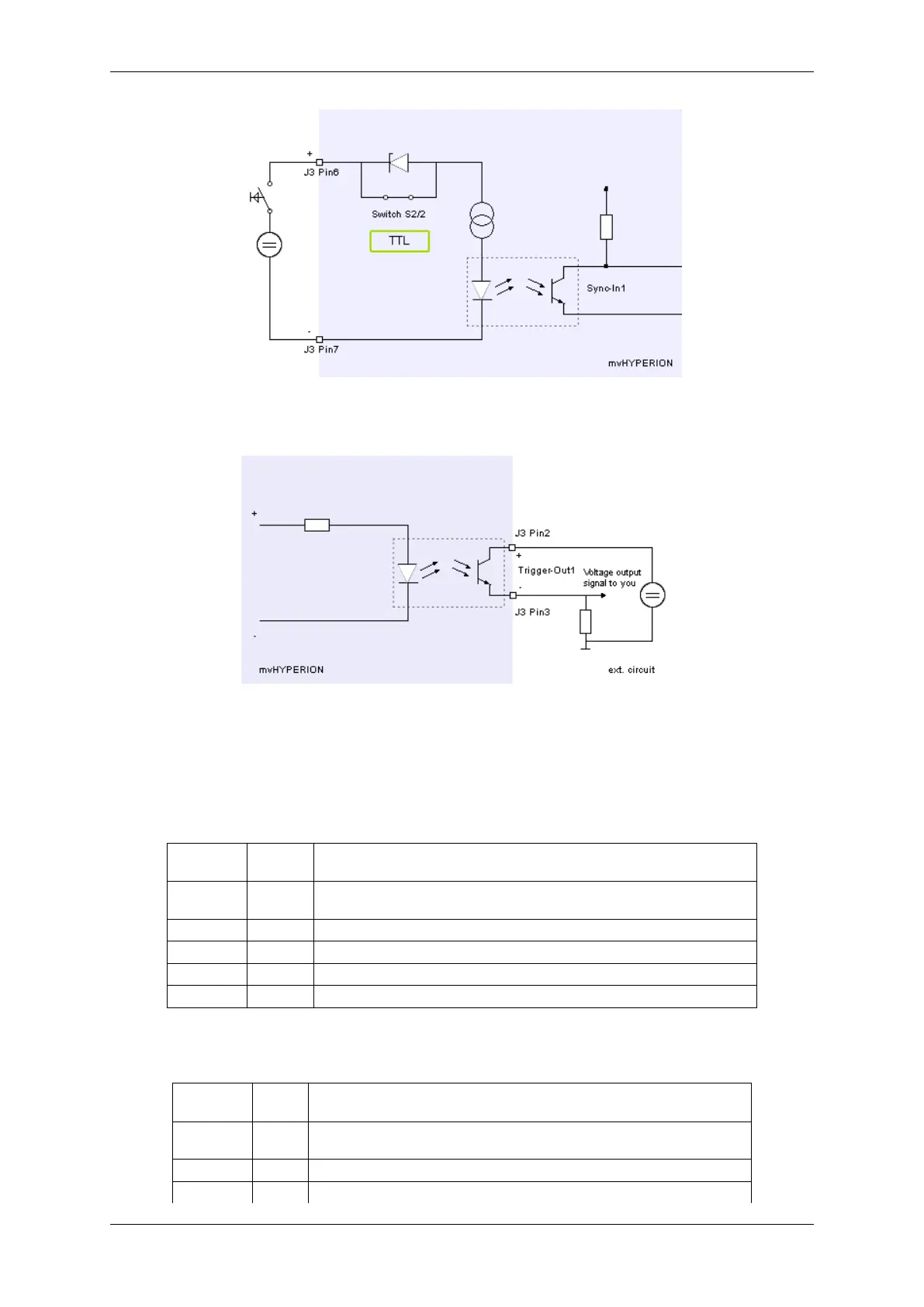

Figure 11: Trigger-In mvHYPERION-CLx
Figure 12: Trigger-Out mvHYPERION-CLx
8.1.2.9.1 Opto-isolated digital inputs
TTL compatible threshold (standard):
VIH,
max:
25V (VIH, max = maximum input voltage, which causes an active signal)
VIH,
min:
4V (VIH, min = minimum input voltage, which causes an active signal)
VIH, typ 5V..24V (VIH, typ = typical input voltage, which causes an active signal)
VIL, max 1V (VIL, max = maximum input voltage, which causes an inactive signal)
VIL, min -30V (VIL, min = minimum input voltage, which causes an active signal)
Ii, max 20mA (li, max = maximum input current)
PLC compatible threshold (additionally external protective circuit of Z diodes necessary):
VIH,
max:
37V (VIH, max = maximum input voltage, which causes an active signal)
VIH,
min:
15V (VIH, min = minimum input voltage, which causes an active signal)
VIL, max 13V (VIL, max = maximum input voltage, which causes an inactive signal)
VIL, min -30V (VIL, min = minimum input voltage, which causes an active signal)
