9.1 wxPropView 85
9.1.2.5 Basic trigger techniques in CameraLink systems
9.1.2.5.1 Area scan cameras

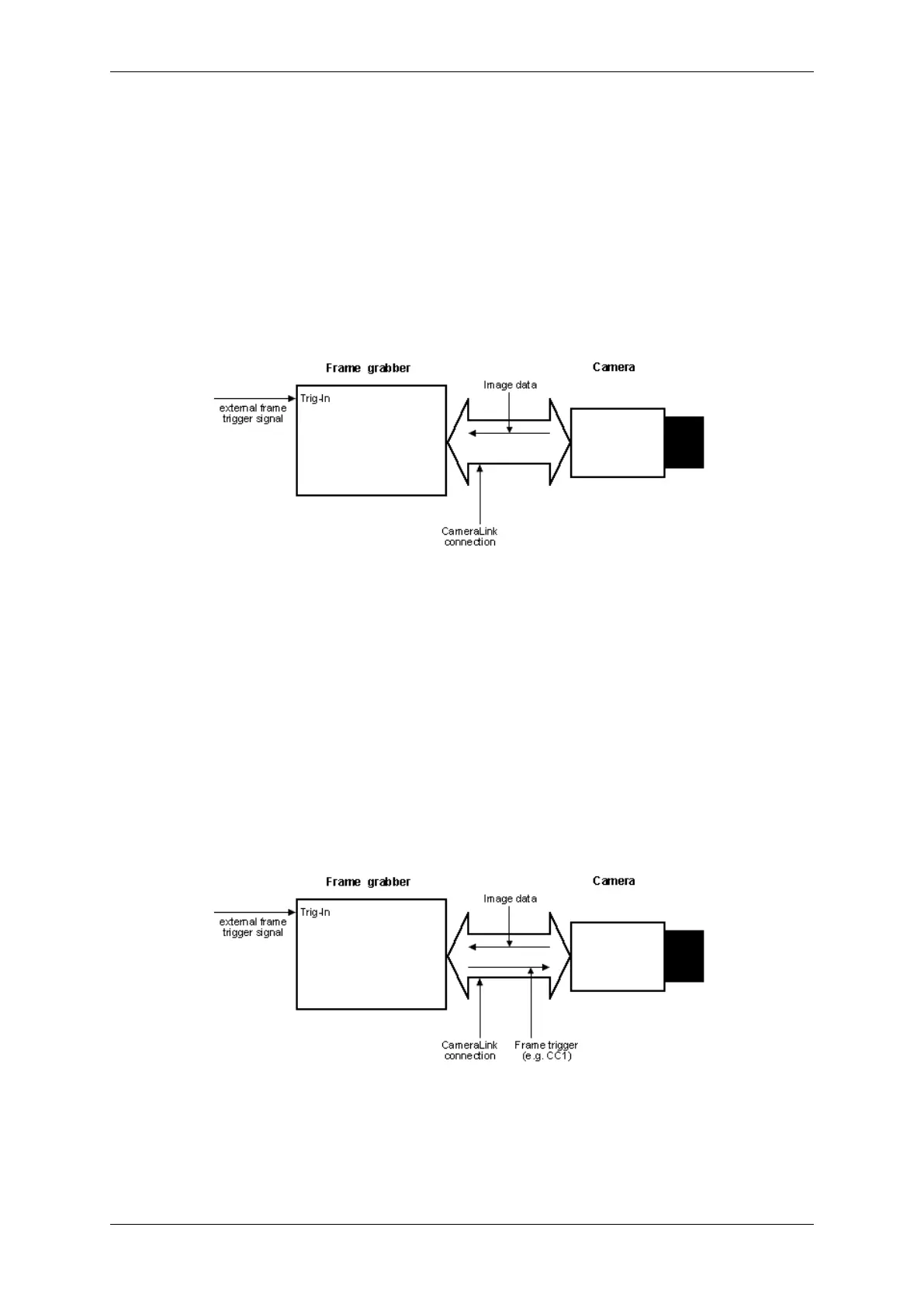

"Mode 1: Frame grabber is triggered, free running camera"
Figure 41: Frame grabber is triggered, free running camera
"Mode 2: Camera is triggered"
Figure 42: Camera is triggered
MATRIX VISION GmbH
