The image height depends on the trigger frequency.

1. trigger period > frame period -> image height complete

2. trigger period < frame period -> image height reduced (line synchronous; next request starts immedi-

ately without loss of lines)

9.1.2.7.4 TriggerDelay

With TriggerDelay it is possible to specify a delay after the trigger start event.

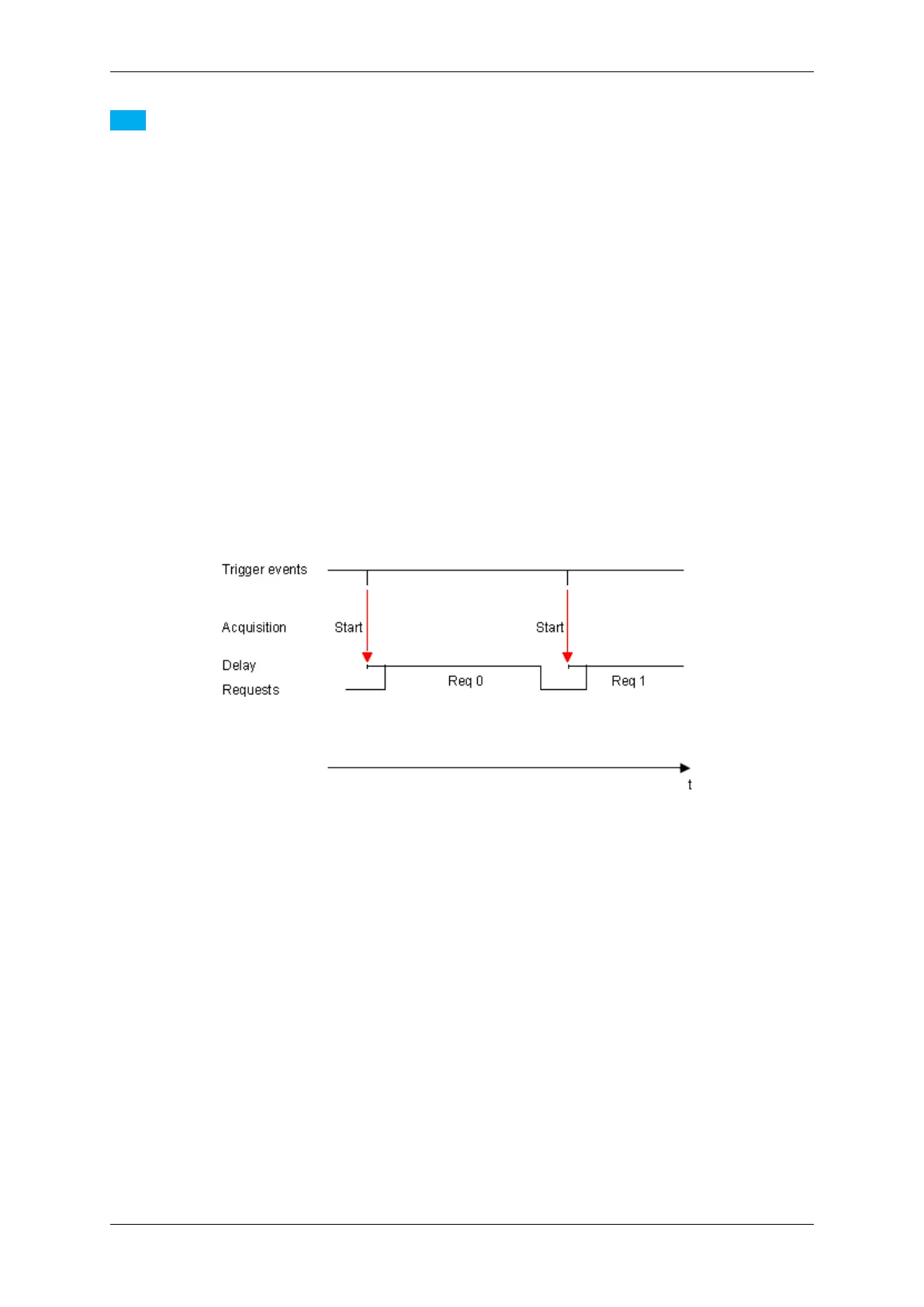

Figure 51: TriggerDelay

To use TriggerDelay, in wxPropView (p. 48) you have to

• set in "CameraDescriptions" the "Y" parameter of "ActiveVideoAoi",

Using line scan cameras, the "Y" position speciﬁes the trigger acquisition delay in lines.
