Matrix ETERNITY Quick Start 101

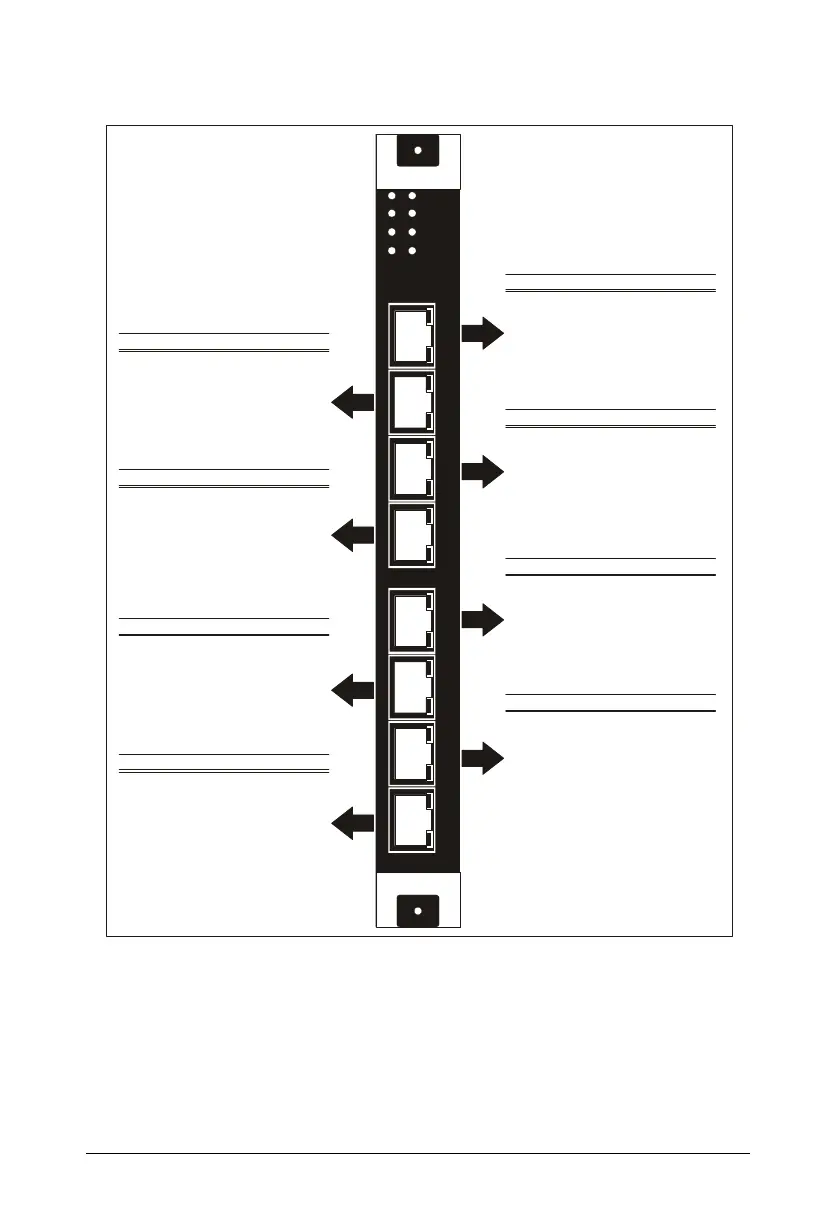

ETERNITY ME E&M8 - RJ45 Connector
1
2
3
4
RJ45-3
RJ45-2
RJ45-4
5
6
7
8
RJ45-5
RJ45-7
RJ45-6
RJ45-8
01 Open Gray 01
02 SB Green-White
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 03
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 05
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 07
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 02
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 04
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 06
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
01 Open Gray 08
02 SB Green-White
03 M OUT Green
04 RX SPCH A Orange-White
05 SPCH A Blue
06 SPCH B Blue-White
07 RX SPCH B Orange
08 E IN Brown-White
09 BGND Brown
10 CCC Gray-White
Pin No. Connection Colour H/w Port Offset
To Next Page
