12 Matrix ETERNITY Quick Start
Pin details of BRI Port in NT Mode

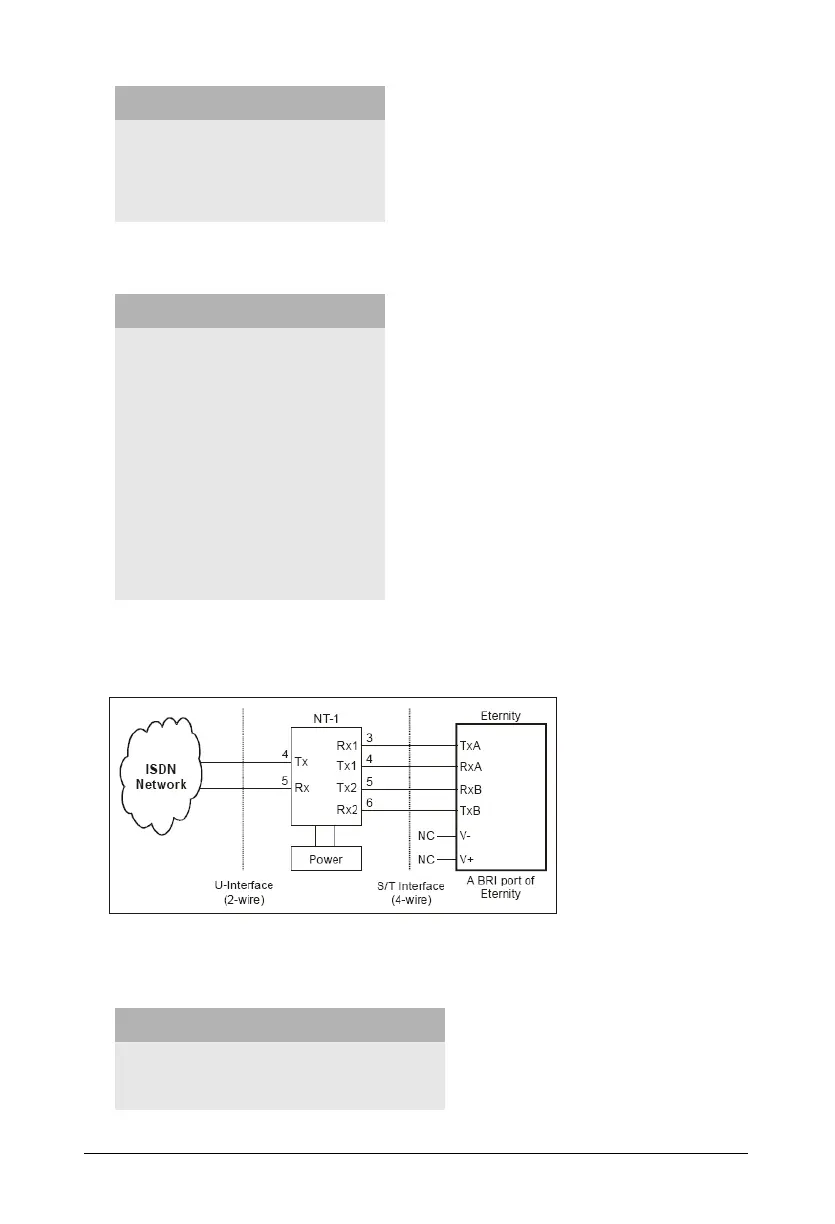

This is a typical connection of a BRI Line to the ETERNITY ME BRI port in the TE
mode:
LED indication for BRI Ports
6 TX_B Green
7 VOUT- Brown-White
8 VOUT+ Brown
Pin Number Signal Color
1 -- Orange-White
2 -- Orange
3 RX-A Green-White
4 TX_A Blue
5 TX_B Blue-White
6 RX_B Green
7 VOUT- Brown-White
8 VOUT+ Brown
Port Status LED Color LED Cadence
Port active Red Continuously ON
Port not active Green Continuously ON
Pin Number Signal Color
