Matrix ETERNITY ME

18 Matrix ETERNITY Quick Start
Installing VoIP Card
• The ETERNITY VoIP Card has a WAN Port and a LAN Port. The default IP
Address of the WAN Port is: 192.168.001.116. The default IP Address of the
LAN Port is: 192.168.002.031
• The VoIP Card can be installed in typically two application scenarios: in a Public
IP Network or in a Private network (behind a NAT Router). It can also be
connected to both networks.

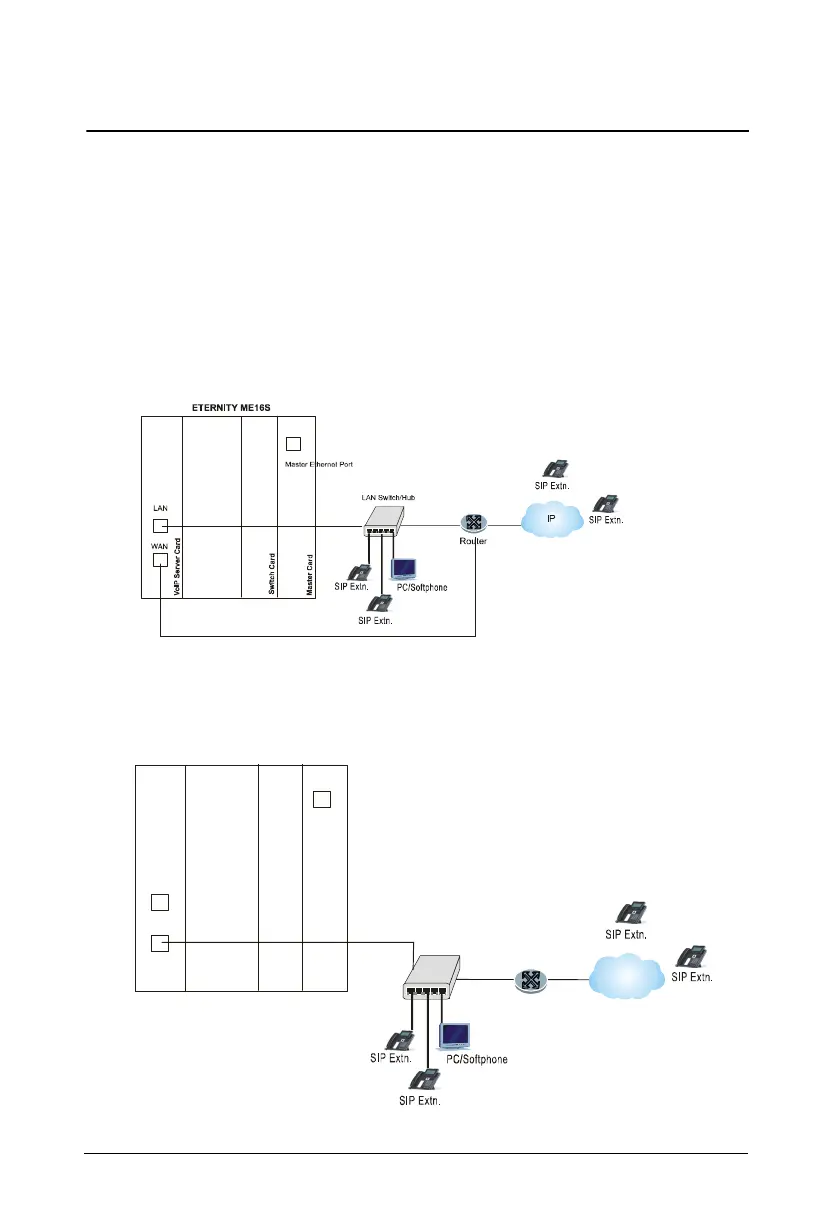

VoIP Card installed in Public Network
VoIP Card installed in a Private Network
Router
IP
IP
LAN Switch/Hub
Master Ethernet Port
WAN
LAN
M
a
s
t
e
r
C
a
r
d
S
w
i
t
c
h
C
a
r
d
V
o
I
P
S
e
r
v
e
r
C
a
r
d
ETERNITY ME16S
