7.1 CONSOLE REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
1) Remove the 4 screws holding the console to the frame (Figure A & B).
2) Disconnect the console cable, HR, and level wire connections from the defective console and remove the console (Figure C).
3) Reinstall the wire connections to the new console.
4) Carefully push the wires into the console and mast until they are clear of the console / mast connection and attach the new console to the mast using
the 4 screws.
5) Test the bike for function as outlined in Section 7.24.

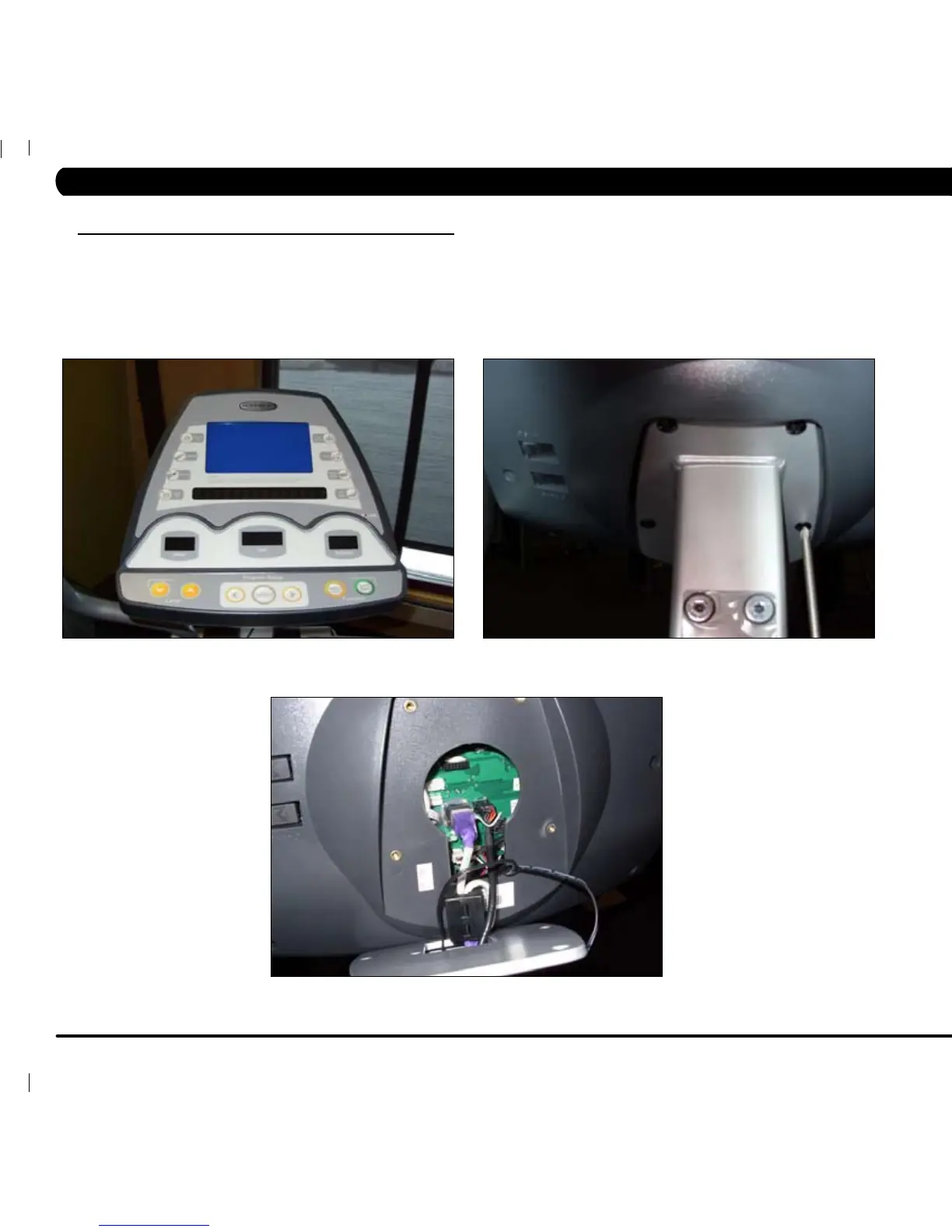

FIGURE C
FIGURE BFIGURE A
